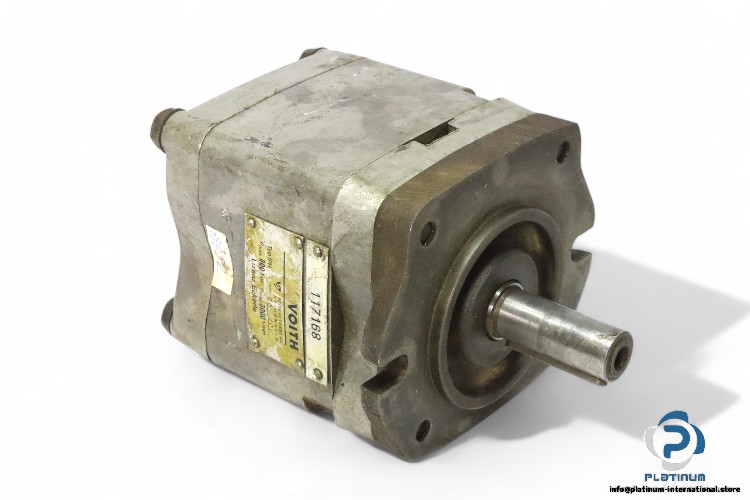

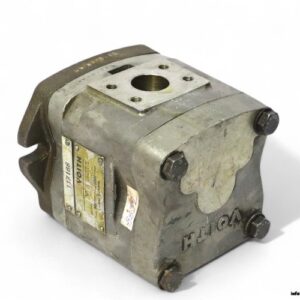

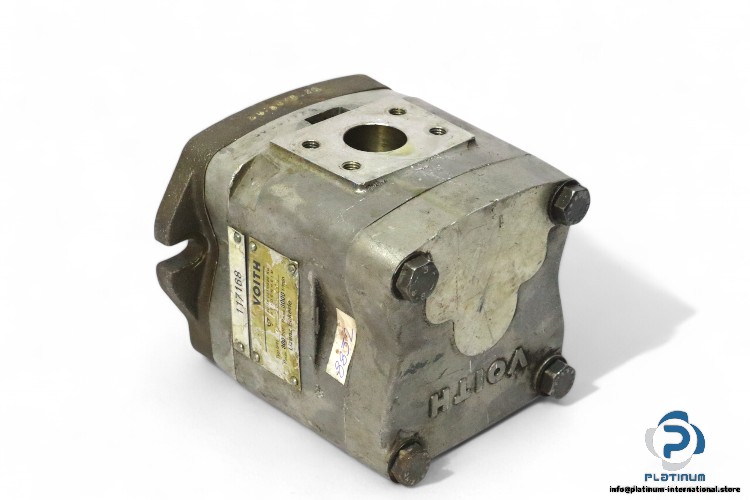

VOITH IPH 4-25 101 INTERNAL GEAR PUMP

The VOITH IPH 4-25 101 Internal Gear Pump is a high-performance pump designed for various industrial applications. With a displacement of 25.7 cm³ and a max pressure of 300 bar, it ensures reliable and efficient fluid handling. The pump features a 25 mm shaft diameter, a flow rate of 38.6 l/m at 1500 rpm, and a wide viscosity range, making it suitable for demanding environments.

Manufacturer: VOITH

Type: Internal Gear Pump

Model: IPH 4-25 101

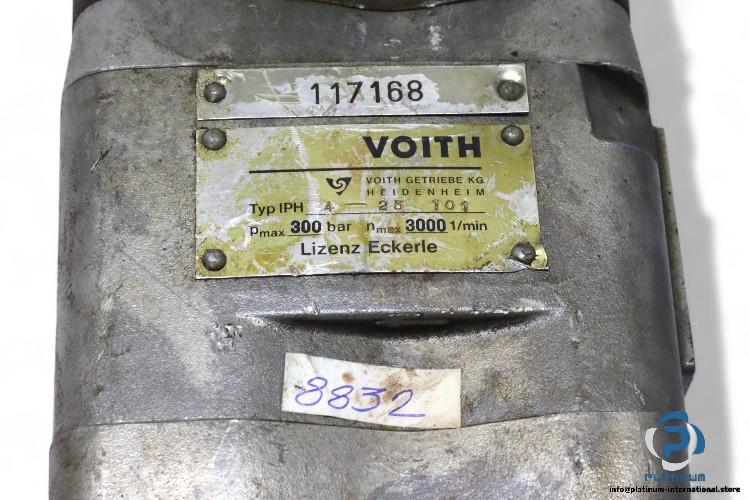

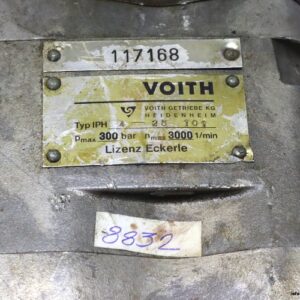

Part No.: 117168

Technical Specifications

• Shaft Diameter: 25 mm
• Max. Pressure: 300 bar
• Max. Speed: 3000 rpm
• Mounting Type: Hole flange, ISO 3019/1
• Displacement: 25.7 cm³
• Flow Rate at 1500 rpm: 38.6 l/m
• Peak Pressure: 315 bar
• Ambient Temperature: -10 to 60 °C
• Viscosity Range: 10 / . 300 mm²/s
