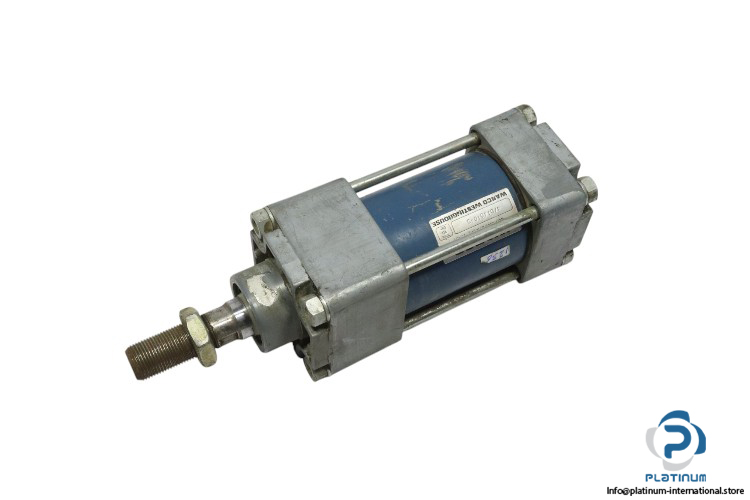

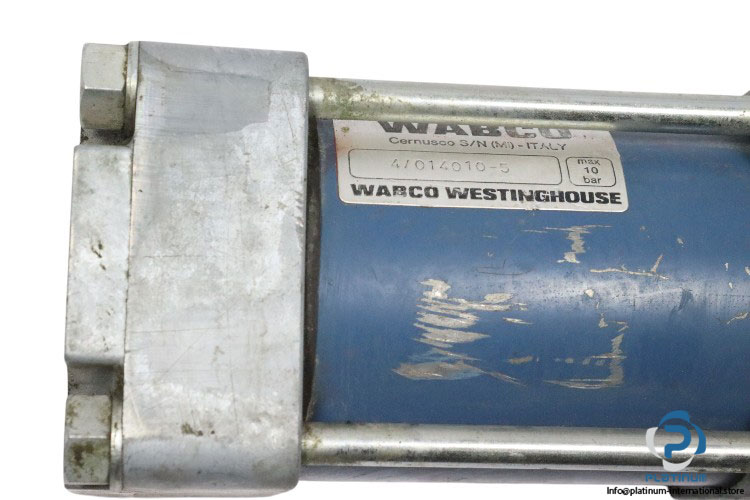

WABCO ISO Cylinder 4/014010-5

The WABCO ISO Cylinder 40140105 is designed for efficient pneumatic control in industrial systems. With a robust construction, it features a bore diameter of 63 mm and a stroke length of 50 mm, ensuring smooth operation under a maximum pressure of 10 bar. Ideal for use in systems requiring reliable and precise pneumatic movement.

Manufacturer: WABCO

Model: 4/014010-5

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 50 mm
• Bore x Stroke: 63 x 50 mm
• Rod Diameter: 22 mm
• Frame Dimensions: 75 x 200 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
