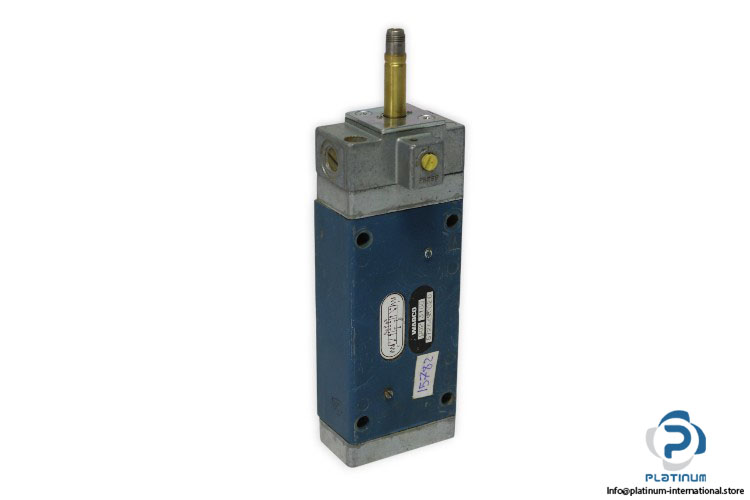

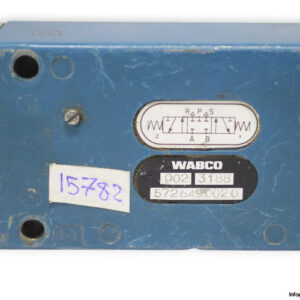

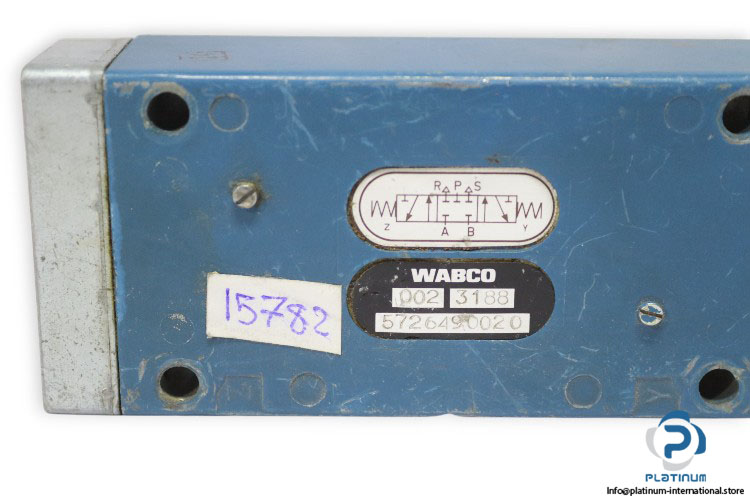

Wabco 5726490020 Pneumatic Directional Control Valve
The Wabco 5726490020 is a high-performance pneumatic 5/3-way directional control valve engineered for reliable operation in demanding industrial environments. Its robust construction with a blue painted body and durable end caps ensures long service life, while the multi-port design provides flexible control of compressed air flow. Ideal for automation systems, presses, and machinery, it guarantees precise switching of pneumatic actuators.
- Manufacturer: Wabco
- Type: Pneumatic Directional Control Valve
- Model: 5726490020
- Reference No.: 002 3188
Technical Information
- Valve Type: Pneumatic 5/3-Way Directional Valve
- Operation: Spool-actuated with mechanical / pneumatic pilot actuation
- Ports: A, B, P, R, S, Z, Y
- Construction: Blue painted body with aluminum/steel end caps, robust rectangular housing
- Function: Controls direction of compressed air flow, switches pneumatic actuators between extend/retract positions
- Applications: Industrial automation systems, pneumatic presses, machinery requiring controlled actuator switching
- Mounting Style: Sub-base
