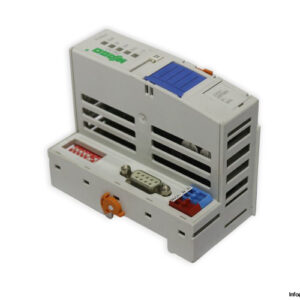

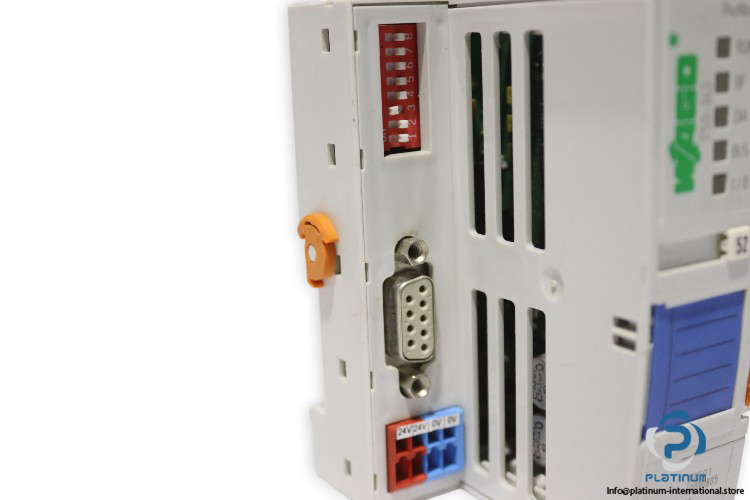

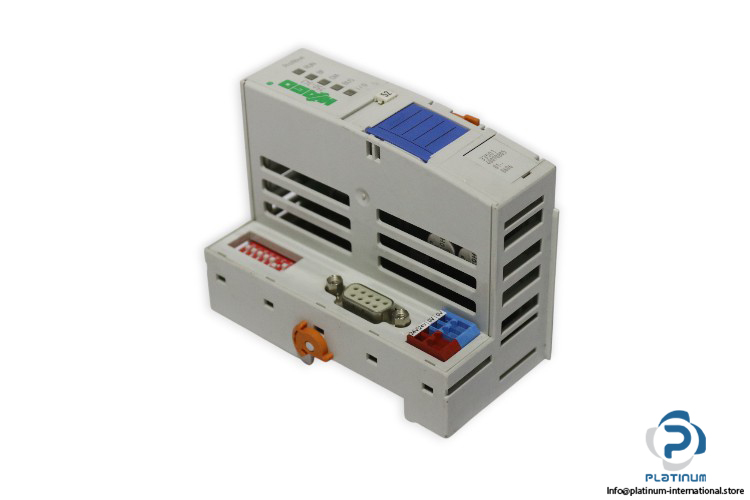

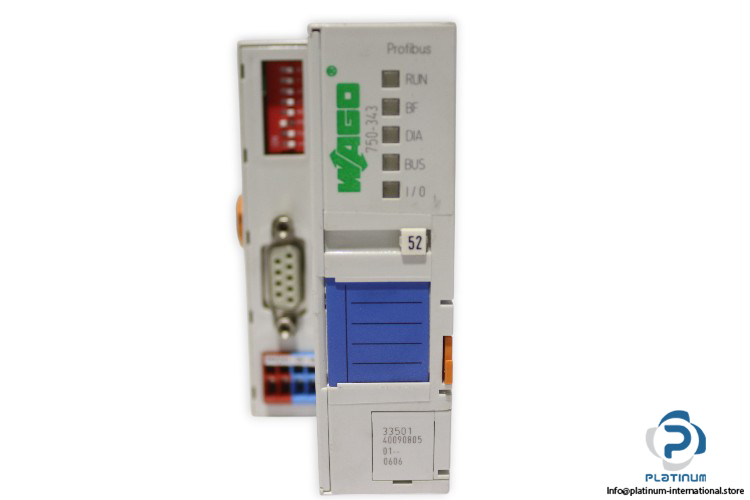

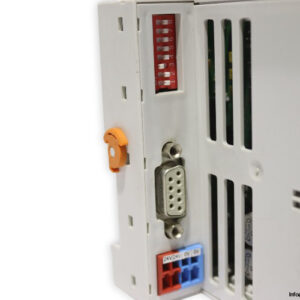

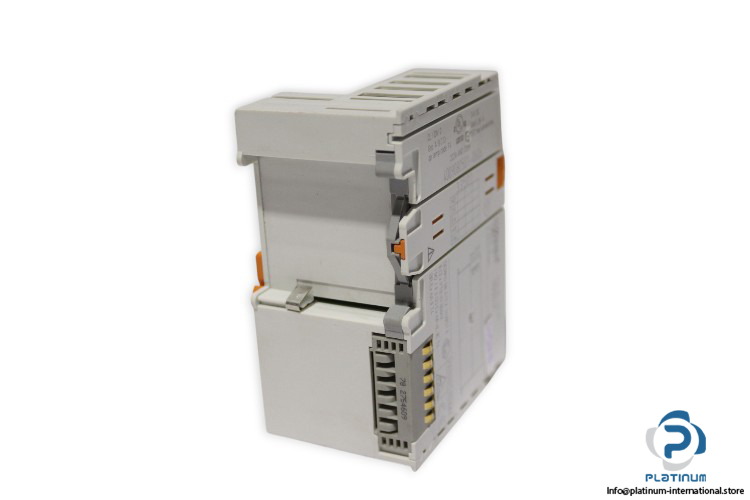

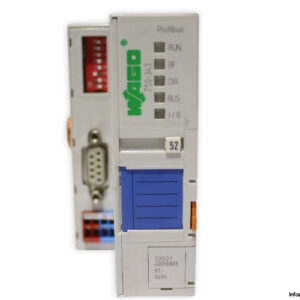

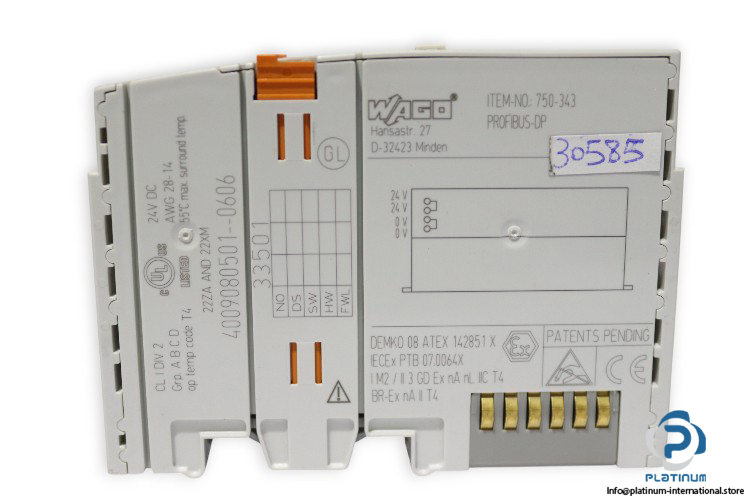

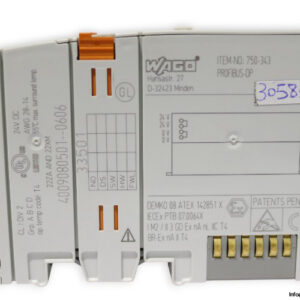

Wago 750-343 Fieldbus Coupler PROFIBUS DP

The Wago 750-343 Fieldbus Coupler PROFIBUS DP provides efficient and reliable integration of distributed I/O systems into PROFIBUS networks. With support for high transmission rates, multiple modules, and up to 6,000 I/O points, it ensures robust communication and control in industrial automation environments.

Manufacturer: Wago
Type: Fieldbus Coupler PROFIBUS DP
Model: 750-343
Part No.: 4009080501 “ 0606
Code: 33501/22ZA AND 22XM/CL I DIV 2
Temperature Code: T 4
Group: A B C D

Technical information

• Voltage: 24 V DC
• Wire Range: AWG 28 “ 14
• Surrounding Temperature: Max. 55 „ƒ
• Number of Fieldbus Nodes on Master (Max.): 125
• Number of I/O Points: 6,000
• Transmission Rate: 9.6 kBd / 12 MBd
• Bus Segment Length (Max.): 1200 m
• Number of Modules per Node (Max.): 63
• Input and Output Process Image (Fieldbus) Max.: 32 bytes / 32 bytes
• Dimensions: 49.5 x 96.8 x 71.9 mm
• Depth from Upper Edge of DIN-Rail: 64.7 mm / 2.547 inches
