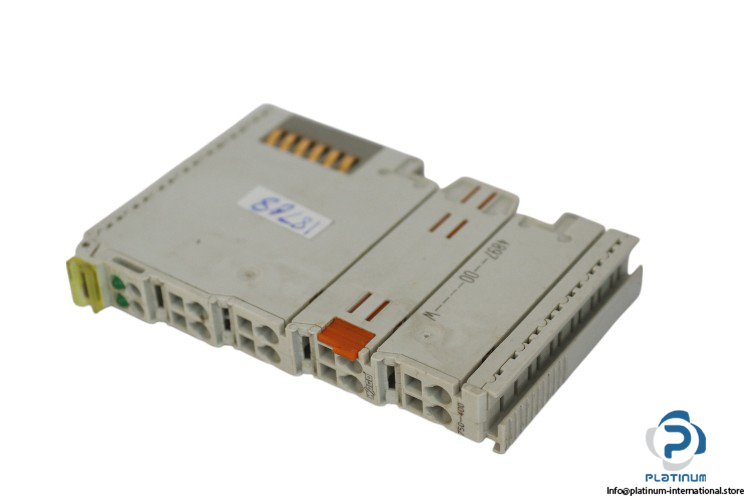

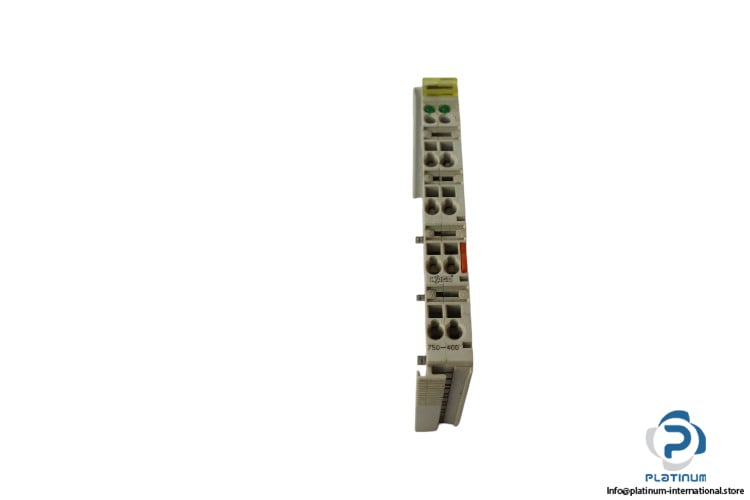

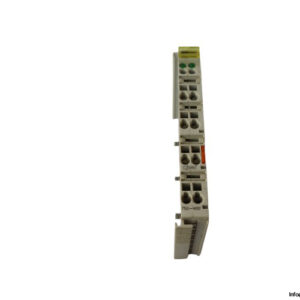

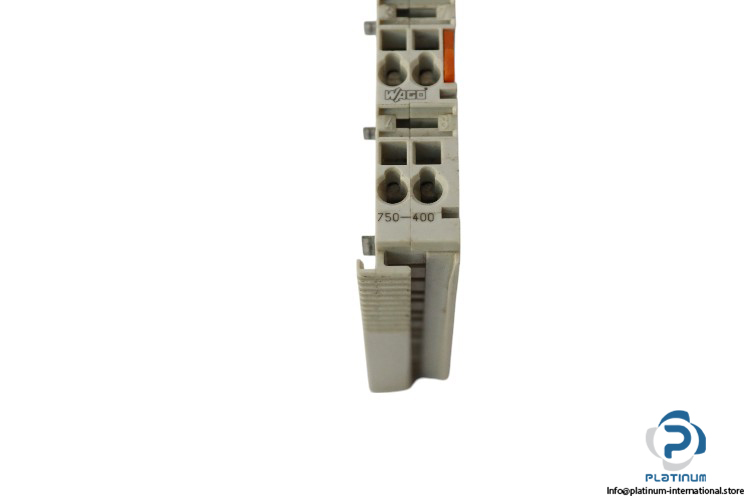

Wago 750-400 Channel Digital Input

The Wago 750-400 Channel Digital Input module offers precise digital signal input functionality for industrial automation applications. This module is designed with two digital inputs, operating at a voltage of 24 VDC. The module supports flexible sensor connections, including 2-wire, 3-wire, and 4-wire configurations, making it suitable for a wide range of industrial sensor types. With high-side switching input characteristics and a digital input filter of 3ms, it ensures fast response and reliable operation in demanding environments.

Manufacturer: Wago

Type: Channel Digital Input

Model: 750-400

Technical Information:

• Number of Digital Inputs: 2
• Total Number of Channels (Module): 2
• Signal Type: Digital
• Signal Type (Voltage): 24 VDC
• Isolation Voltage: 500 V
• Sensor Connection: 2 x (2-wire, 3-wire, 4-wire)
• Input Characteristic: High-side switching
• Input Filter (Digital): 3ms
• Input Current per Channel for Signal (1) Typ.: 4.5 mA
• Voltage Range for Signal (0): ˆ’3 / +5 VDC
• Voltage Range for Signal (1): 15 / 30 VDC
• Sensor Supply: 24 VDC
• Input Data Width (Internal) Max.: 2 Bit
• Supply Voltage (System): 5 VDC; via data contacts
• Current Consumption (5 V System Supply): 3.7 mA
• Solid Conductor: 0.08 / 2.5 mm²
• Strip Length: 8 / 9 mm
• Connection Technology: 8 x CAGE CLAMP® (inputs)
• Mounting Type: DIN-35 rail
• Pluggable Connector: Fixed
• Color: Light Gray
• Protection Type: IP20
• Housing Material: Polycarbonate; Polyamide 6.6
• Connectable Conductor Materials: Copper
• Ambient Temperature (Operation): 0 / 55 °C
• Dimensions (H x W x D): 100 x 12 x 69.8 mm

This module ensures reliable and accurate data acquisition in control systems, offering flexibility in sensor connectivity and fast data processing for industrial applications.
