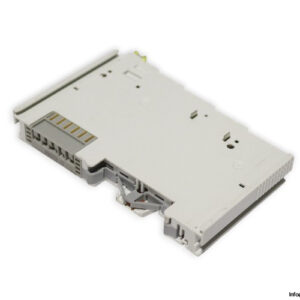

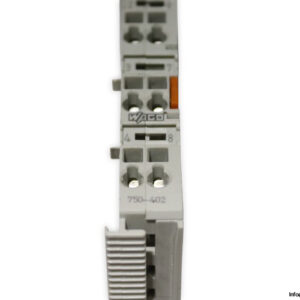

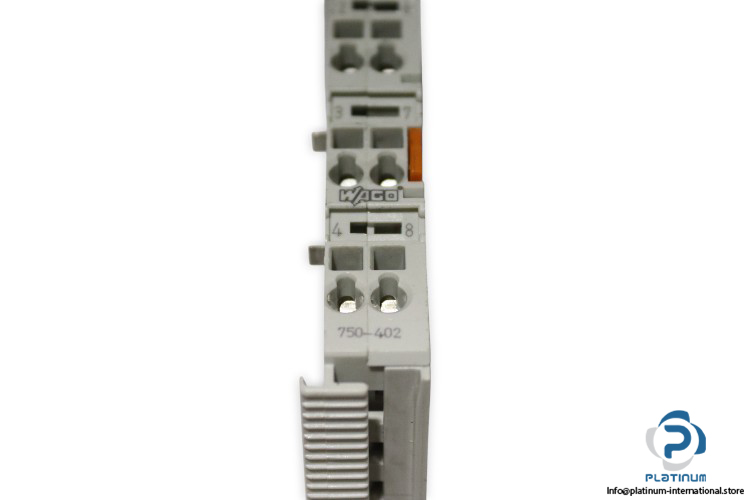

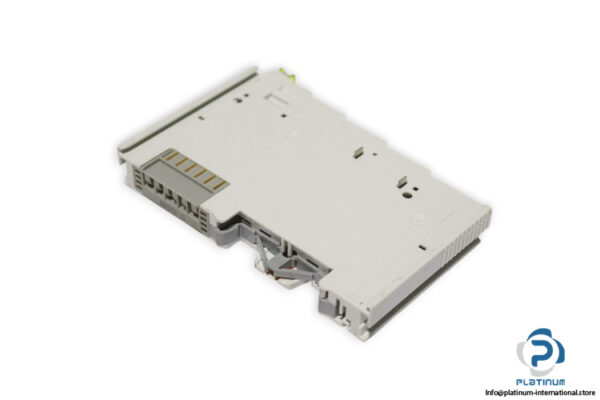

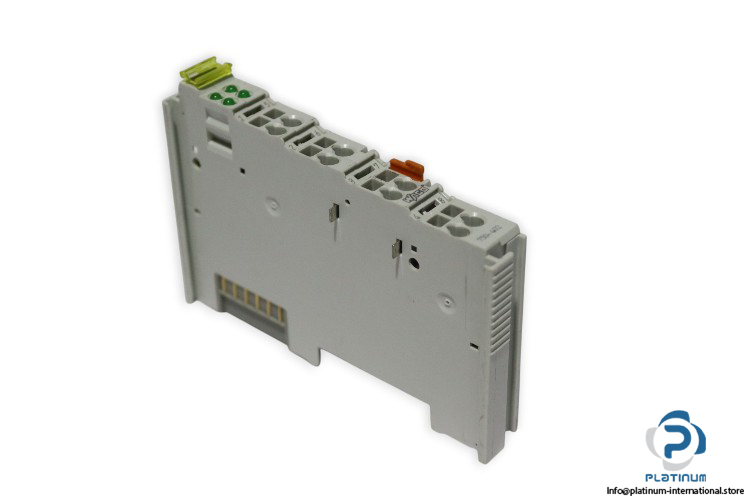

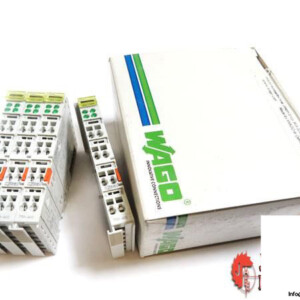

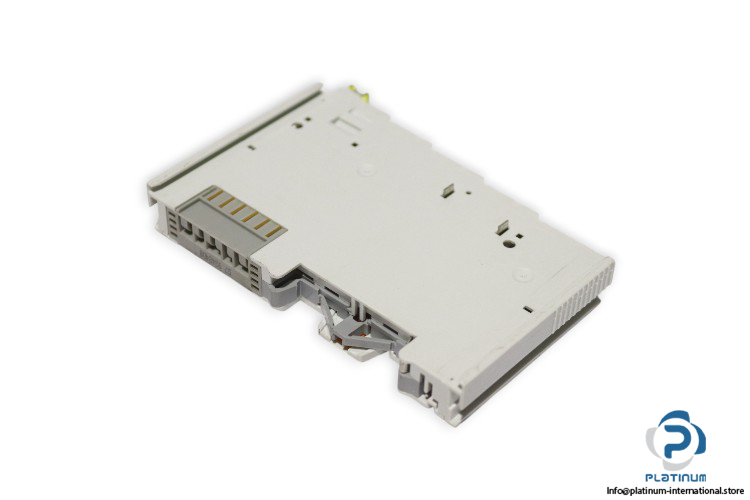

WAGO 750-402 4-Channel Digital Input Module
The WAGO 750-402 is a compact and reliable 4-channel digital input module designed for industrial automation. Built with durable housing and explosion-proof design, it ensures stable performance in demanding environments.
Manufacturer: WAGO
Type: 4-Channel Digital Input
Model: 750-402

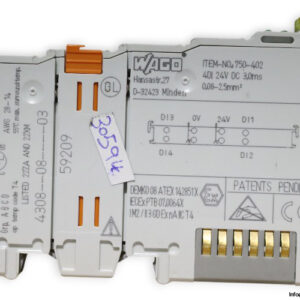

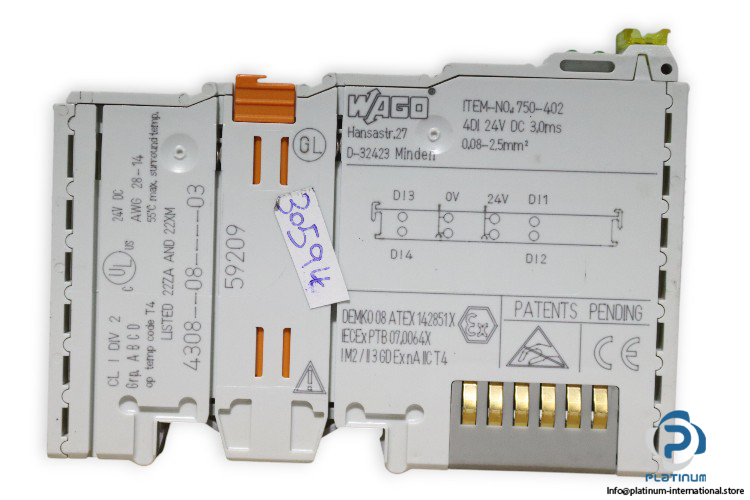

REF NO: 4308 08 03 / 59209
Technical Information
- Number of Digital Inputs: 4
- System Supply Voltage: DC 5 V; via data contacts
- Current Consumption (5 V): 7.5 mA
- Type of Signal: Voltage (DC 24 V)
- Sensor Supply Voltage: 24 V DC
- Voltage Range for Signal (0): -3 / +5 VDC
- Voltage Range for Signal (1): 15 / +30 VDC
- Input Characteristic: High-side switching
- Input Filter: 3 ms
- Incoming Power Jumper Contacts: 2
- Outgoing Power Jumper Contacts: 2
- Current Capacity (Power Jumpers): 10 A
- Isolation Field-System: 500 VAC (1 min)
- Operating Temperature: 0 / 55 °C
- Protection: IP20
- Dimensions: 12 x 100 x 70 mm
- Housing Material: Polycarbonate; Polyamide 6.6
- Explosion Proof: Yes
