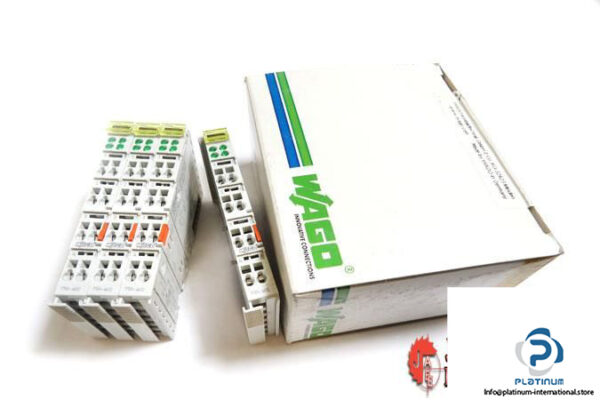

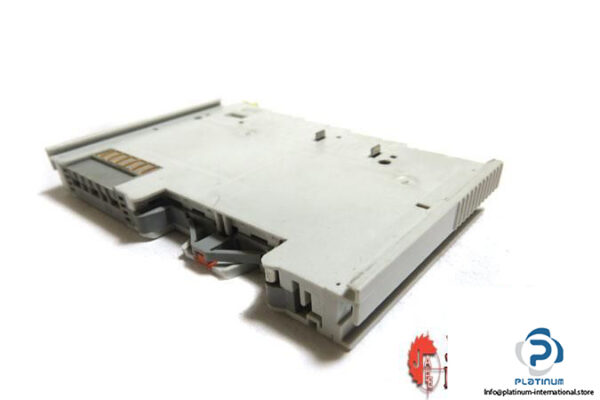

WAGO 750-402 4-Channel Digital Input
The WAGO 750-402 is a compact 4-channel digital input module designed for reliable signal processing in industrial automation systems. With robust protection, explosion-proof housing, and high switching performance, it ensures accurate operation under demanding conditions.
Manufacturer: WAGO
Type: 4-Channel Digital Input
Model: 750-402

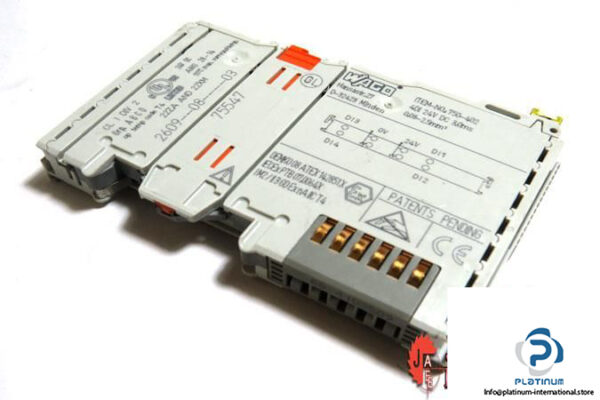

REF NO: 2609 08 03 / 75547
Technical Information
- Number of Digital Inputs: 4
- System Supply Voltage: DC 5 V; via data contacts
- Current Consumption, System Supply (5 V): 7.5 mA
- Type of Signal: Voltage (DC24 V)
- Sensor Supply Voltage: 24 V DC
- Voltage Range for Signal (0): -3 / +5 VDC
- Voltage Range for Signal (1): 15 / +30 VDC
- Input Characteristic: High-side switching
- Input Filter: 3 ms
- Number of Incoming Power Jumper Contacts: 2
- Number of Outgoing Power Jumper Contacts: 2
- Current Carrying Capacity (Power Jumper Contacts): 10 A
- Isolation Field-System: 500 VAC (1 min)
- Operating Temperature: 0 / 55 °C
- Protection: IP20
- Dimensions: 12 x 100 x 70 mm
- Housing Material: Polycarbonate; Polyamide 6.6
- Explosion Proof: Yes
