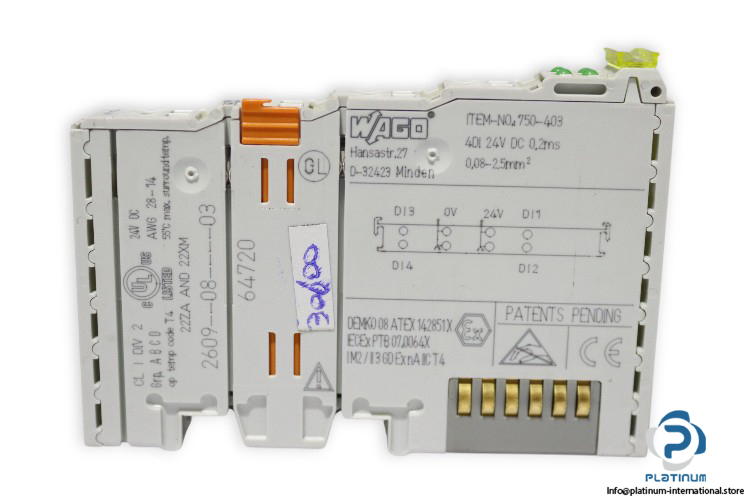

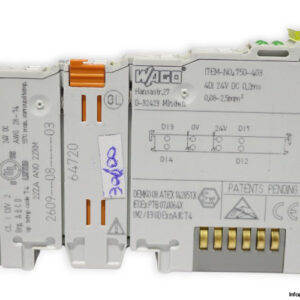

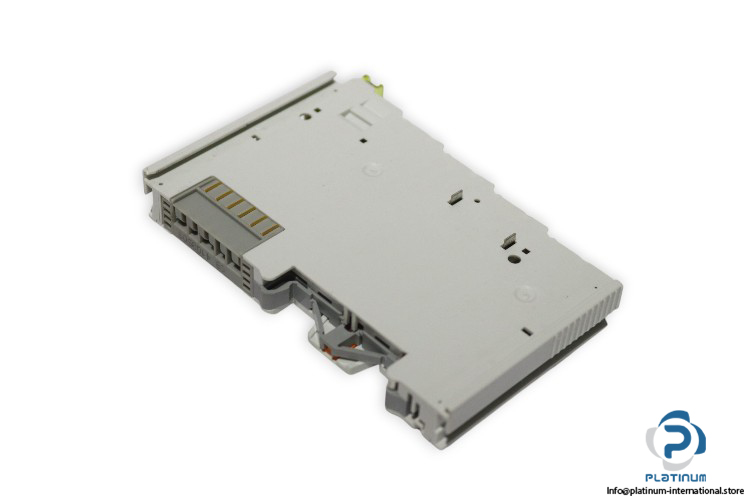

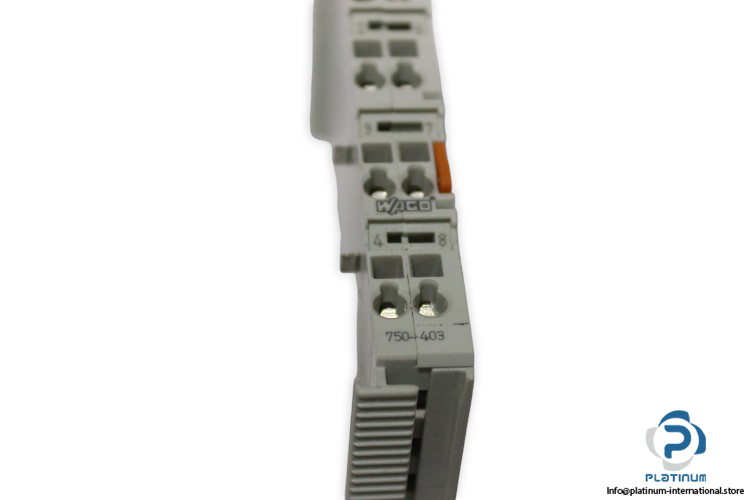

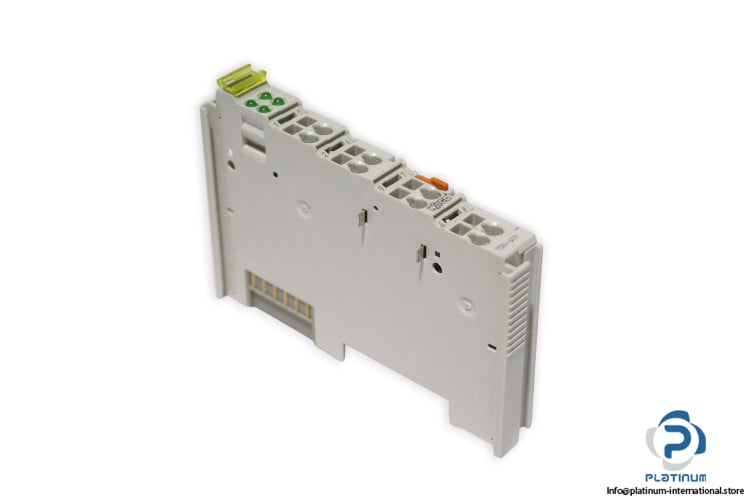

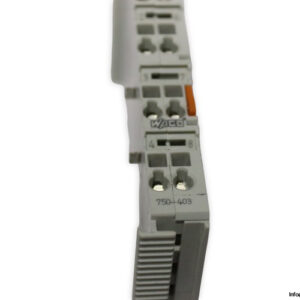

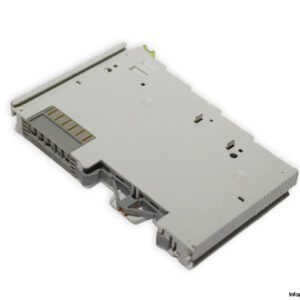

WAGO 750-403 4-Channel Digital Input
The WAGO 750-403 is a reliable 4-channel digital input module designed for precise signal processing in industrial automation. With a compact design, robust housing, and high compatibility, it ensures stable performance in demanding environments.
Manufacturer: WAGO
Type: 4-Channel Digital Input
Model: 750-403
Ref No.: 2609 08 03 / 64720 / CL I DIV 2
Technical Information
- Number of Digital Inputs: 4
- Total Number of Channels (Module): 4
- Signal Type: Digital
- Signal Type (Voltage): 24 VDC
- Sensor Connection: 2 x (2-wire, 3-wire); requires suitable field side module (e.g., 750-614)
- Input Characteristic: High-side switching
- Input Filter: 0.2 ms
- Input Current per Channel for Signal (1) typ.: 4.5 mA
- Voltage Range for Signal (0): ˆ’3 / +5 VDC
- Voltage Range for Signal (1): 15 / 30 VDC
- Sensor Supply: 24 VDC
- Number of Incoming Power Jumper Contacts: 2
- Number of Outgoing Power Jumper Contacts: 2
- Current Carrying Capacity (Power Jumper Contacts): 10 A
- Dimensions: 12 x 100 x 69 mm
- Housing Material: Polycarbonate; Polyamide 6.6
