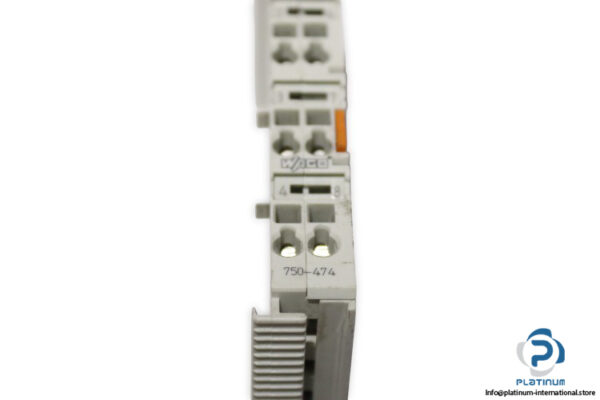

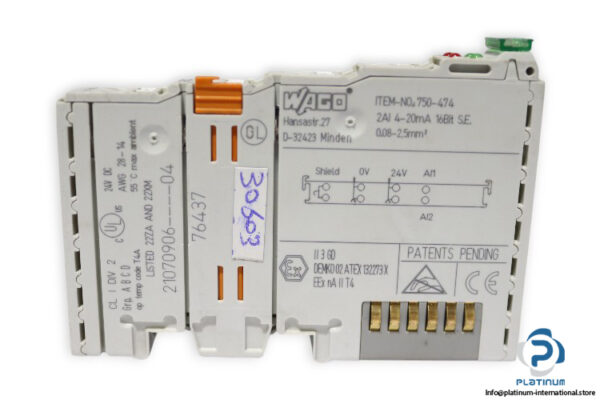

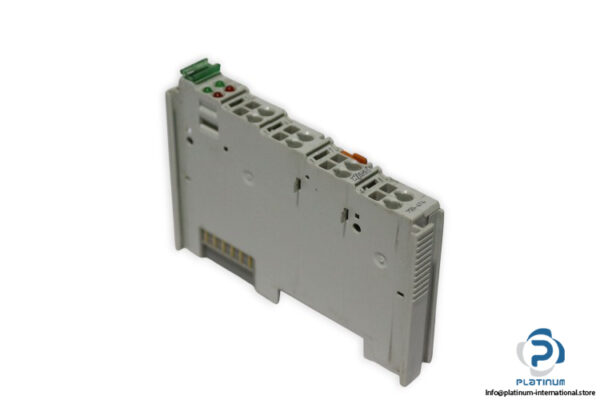

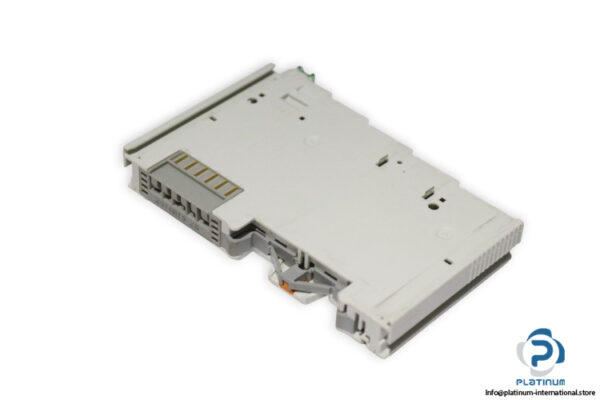

WAGO 750-474 2-Channel Analog Input
The WAGO 750-474 is a compact and reliable 2-channel analog input module designed for precise signal acquisition in industrial automation systems. Built with high-quality housing materials, it ensures accurate performance, safety, and durability under demanding operating conditions.
Manufacturer: WAGO
Type: 2-Channel Analog Input
Model: 750-474
Ref No.: 21070906 04 / 76437 / CL I DIV 2
Technical Information
- No. of Analog Input: 2
- Conductor Connection: 2 to 4
- System Supply Voltage: DC 5 V; via data contacts
- Current Consumption, System Supply (5 V): 75 mA
- Type of Signal: Current
- Type of Signal Current: DC 4 / 20 mA
- Input Voltage: max. 24 V
- Input Resistance: max. 220 Ω
- Overvoltage Protection: 30 V polarity reversal protection
- Conversion Time: 80 ms
- Isolation: 500 V system/supply
- Operating Temperature: 0 / 55 °C
- Protection: IP20
- Dimensions: 12 x 100 x 69 mm
- Housing Material: Polycarbonate; polyamide 6.6
