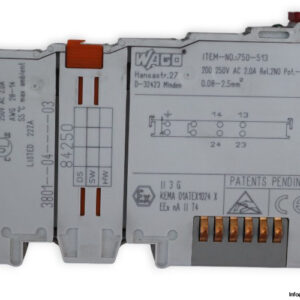

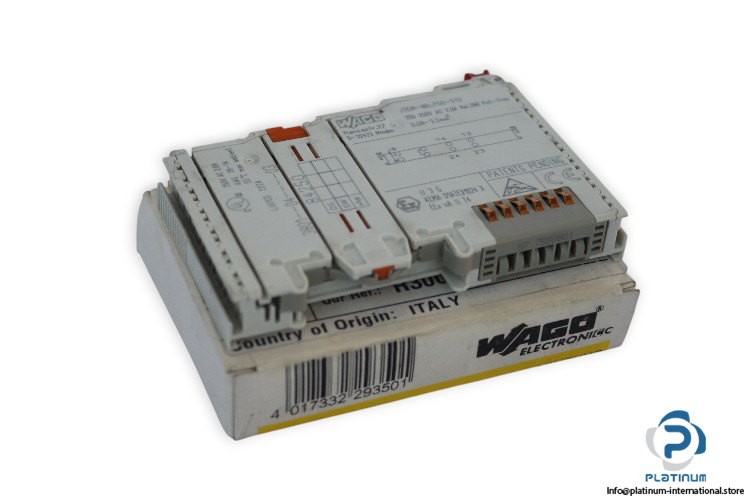

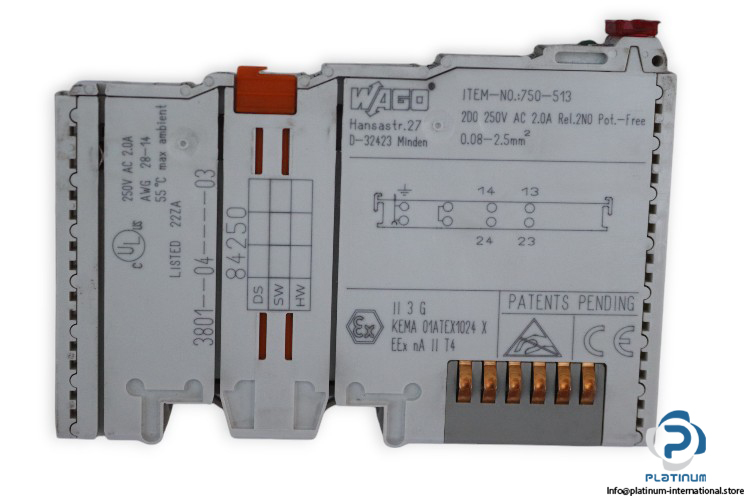

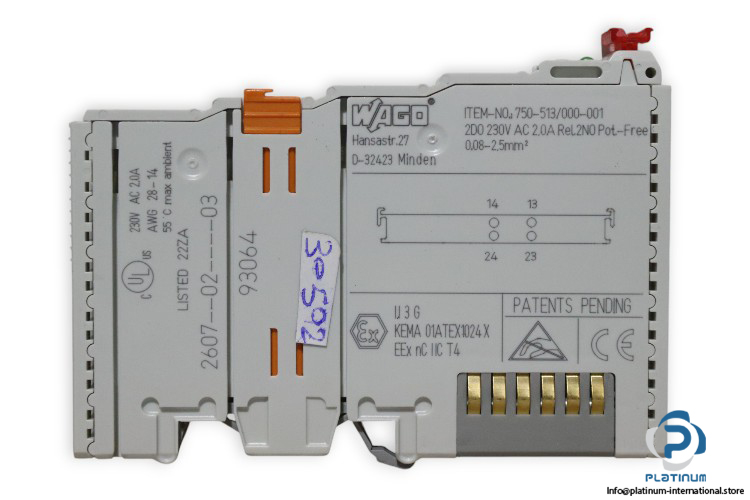

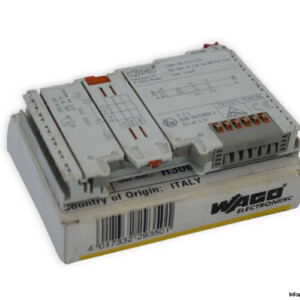

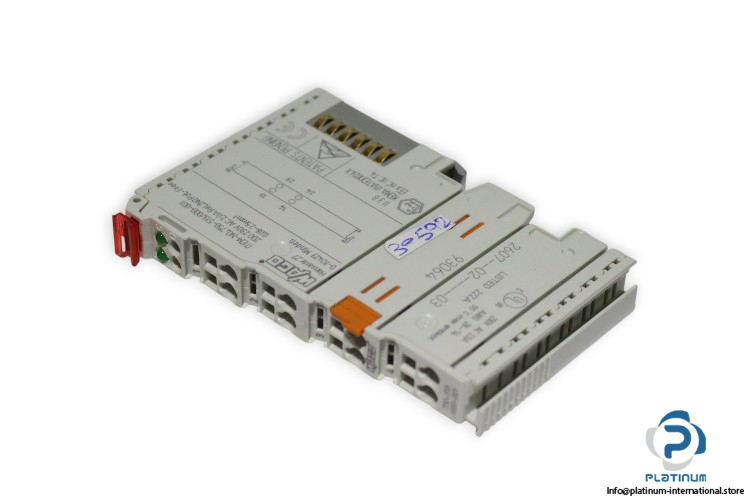

WAGO 750-513 2-Channel Relay Output
The WAGO 750-513 is a compact and reliable 2-channel relay output module designed for digital signal switching in industrial automation systems. With explosion-proof construction and durable housing, it ensures safe and long-lasting operation in demanding environments.
Manufacturer: WAGO
Type: 2-Channel Relay Output
Model: 750-513

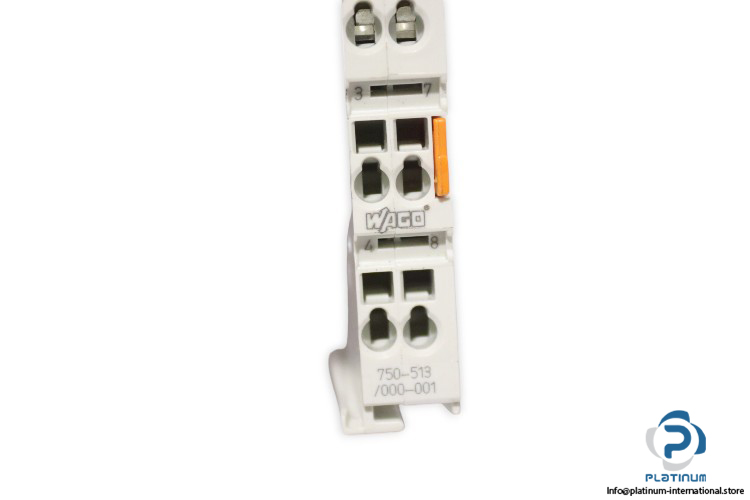

ID No.: 750-513/000-001
Ref No.: 3801 04 03 / 84250 / 84250
Technical Information
- Number of Digital Outputs: 2
- Total Number of Channels (Module): 2
- Signal Type: Digital
- Actuator Connection: 2 x (1-wire)
- Output Circuit Design: 2 make contacts, Relay
- Pull-in Time (max.): 10 ms
- Drop-out Time (max.): 10 ms
- Bounce Time (typ.): 1.2 ms
- Switching Frequency (max.): 0.5 Hz; Nominal load
- Switching Voltage (max.): 230 VAC
- Switching Current (max.): 2 A
- Switching Voltage (min.): 5 V
- Switching Current (min.): 10 mA
- Switching Power: 500 VA / 60 W
- Output Data Width (Internal): max. 2 Bit
- Supply Voltage (System): 5 VDC
- Indicators: LED (A, C) green: Status relay 1, relay 2
- Number of Incoming Power Jumper Contacts: 1
- Number of Outgoing Power Jumper Contacts: 1
- Dimensions: 12 x 100 x 67 mm
- Housing Material: Polycarbonate; polyamide 6.6
- Explosion Proof: Yes
