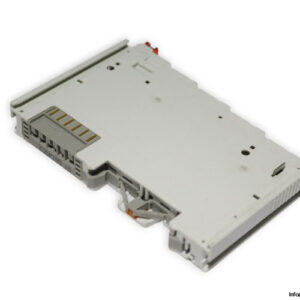

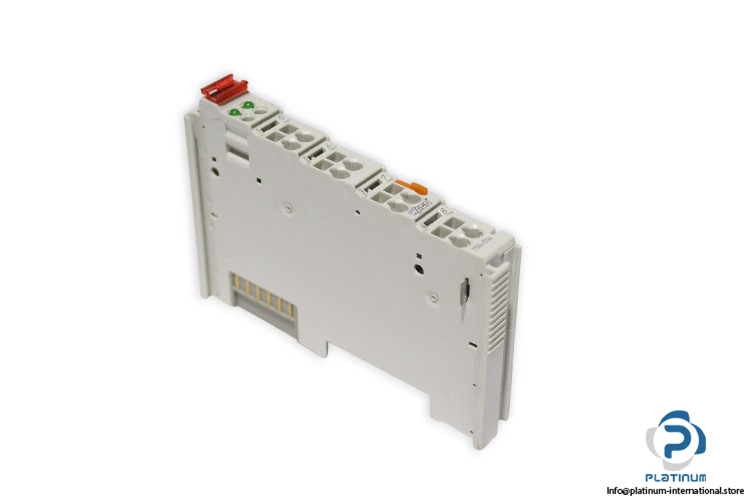

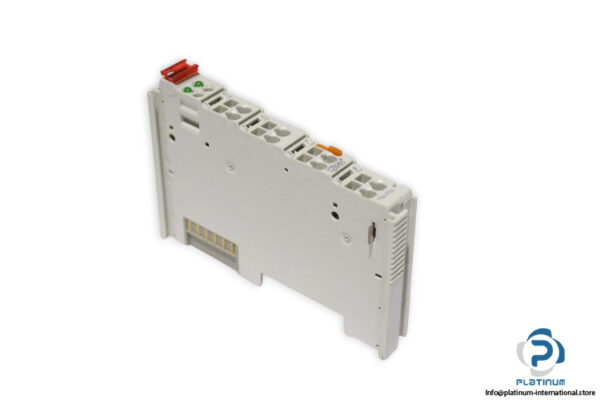

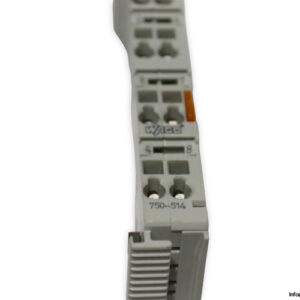

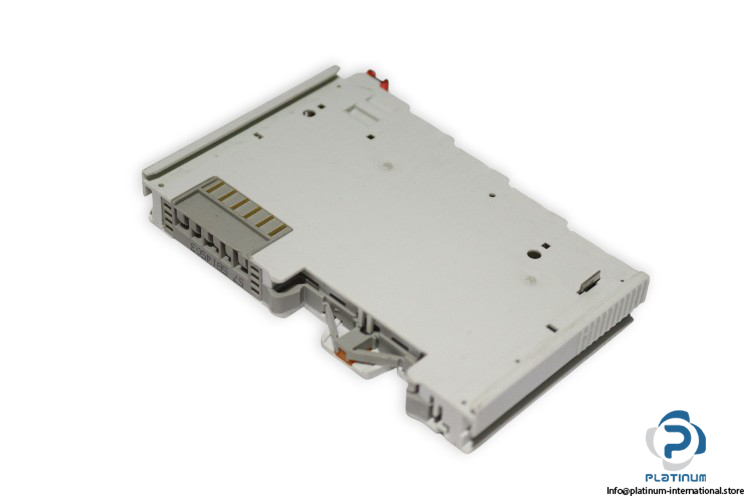

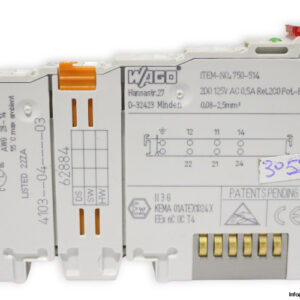

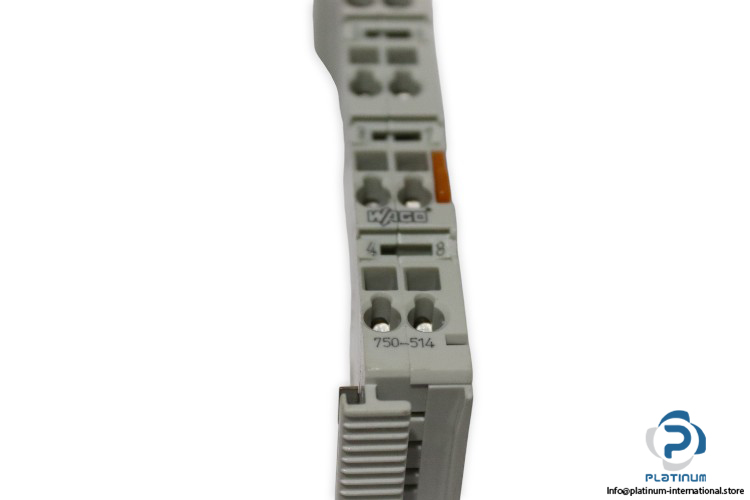

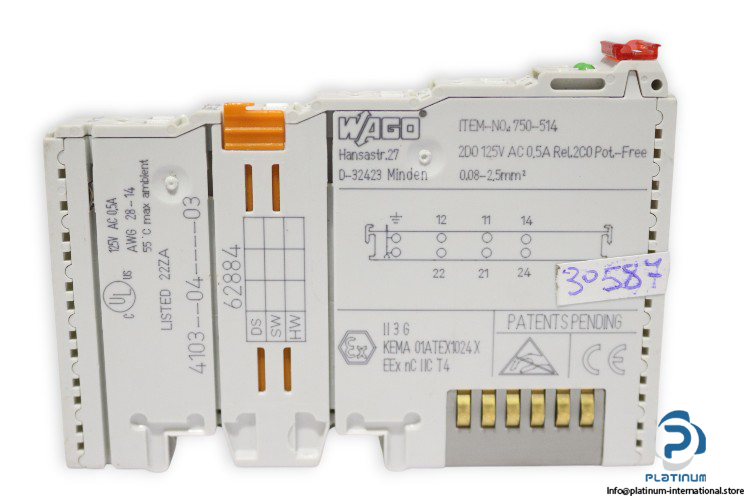

Wago 750-514 2-Channel Relay Output (Potential-Free)
The Wago 750-514 is a compact 2-channel relay output module designed for digital signal switching in automation systems. With potential-free outputs, ATEX approval, and DIN-rail mounting, it ensures safe and reliable integration into industrial control environments.
Manufacturer: Wago
Type: 2-Channel Relay Output (Potential-Free)
Model: 750-514
Part No.: 4103 — 04 —- 03
Code: 62884
KEMA: 01ATEX1024 X
Technical information
- Switching Power: 62.5 VA / 30 W
- Voltage: 200/125 V AC @ 0.5 A
- Solid Conductor: 0.08 to 2.5 mm²
- Wire: AWG 28 “ 14
- Surrounding Temperature: 55 °C max
- Changeover Contacts: 2
- Number of Digital Outputs: 2
- Total Number of Channels (Module): 2
- Signal Type: Digital
- Actuator Connection: 2 × (1-wire)
- Output Characteristic: Potential-free
- Width: 12 mm / 0.472 in
- Height: 100 mm / 3.937 in
- Depth: 69.8 mm / 2.748 in
- Depth from Upper Edge of DIN-Rail: 62.6 mm / 2.465 in
