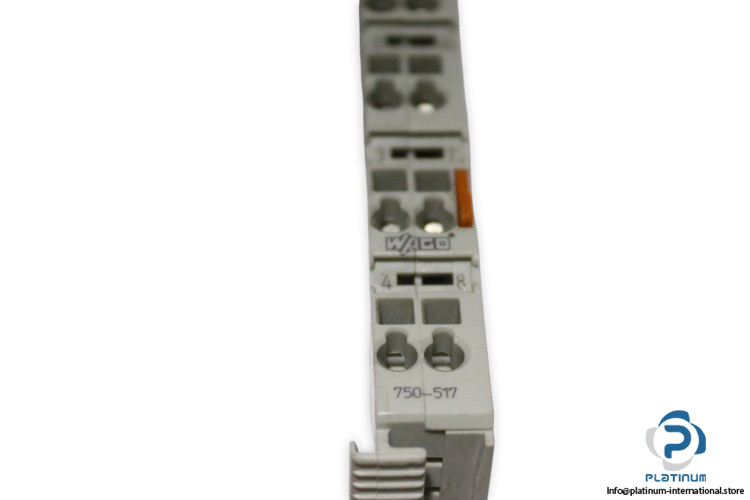

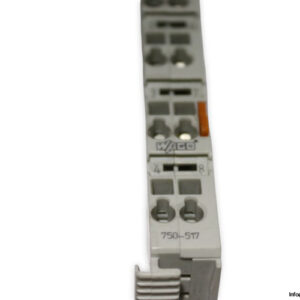

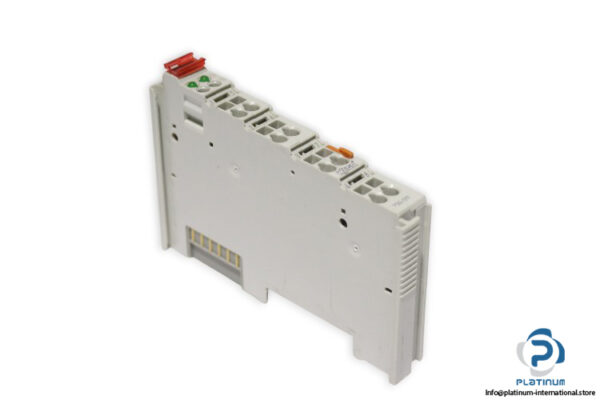

WAGO 750-517 2-Channel Relay Output
The WAGO 750-517 is a compact and reliable 2-channel relay output module designed for industrial automation systems. Built for durability and performance, it ensures secure digital signal control with high switching reliability and explosion-proof safety features.
Manufacturer: WAGO
Type: 2-Channel Relay Output
Model: 750-517

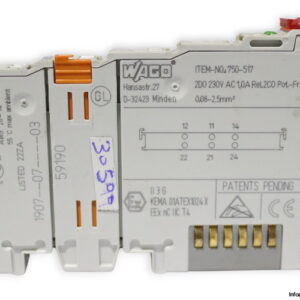

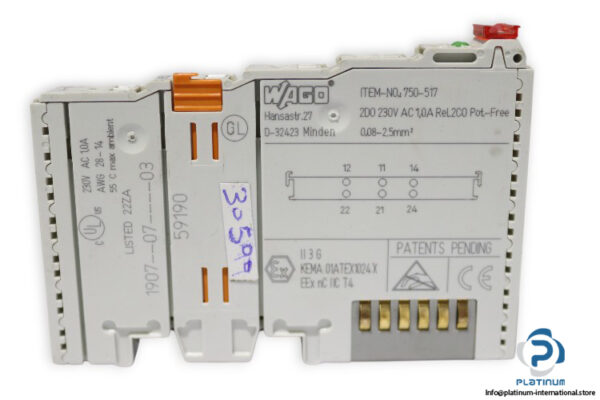

Ref No.: 1907 07 03 / 59190
Technical Information
- Number of Digital Outputs: 2
- Total Number of Channels (Module): 2
- Signal Type: Digital
- Actuator Connection: 2 x (1-wire)
- Output Circuit Design: 2 Changeover Contacts Relay
- Output Characteristic: Potential-Free
- Pull-In Time (Max.): 8 ms
- Drop-Out Time (Max.): 4 ms
- Switching Frequency (Max.): 0.1 Hz; Nominal Load
- Switching Voltage (Max.): 230 VAC
- Switching Current (Max.): 1 A
- Switching Voltage (Min.): 12 V
- Switching Current (Min.): 100 mA
- Electrical Switching Operations (Min. at Max. Resistive Load): 1 x 10¶
- Mechanical Switching Operations (Min. at Max. Resistive Load): 5 x 10¶
- Output Data Width (Internal) Max.: 2 Bit
- Supply Voltage (System): 5 VDC; via data contacts
- Current Consumption (5 V System Supply): 90 mA
- Isolation: 1500 V (system/field)
- Indicators: LED (A, E) Green “ Status Relay 1, Relay 2
- Dimensions: 12 x 100 x 67 mm
- Housing Material: Polycarbonate; Polyamide 6.6
- Explosion Proof: Yes
