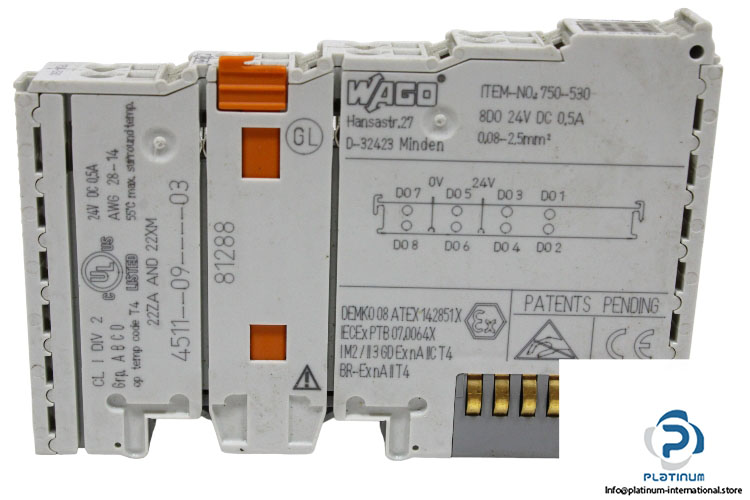

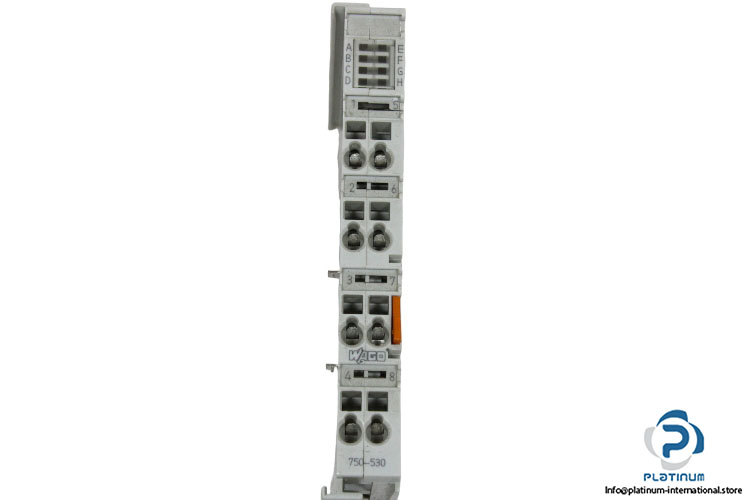

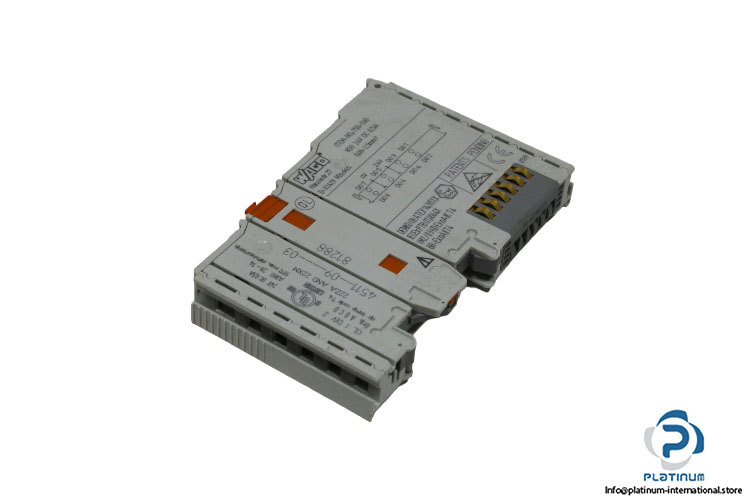

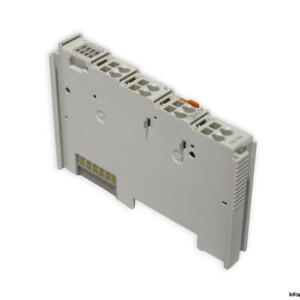

WAGO 750-530 8-Channel Digital Output
The WAGO 750-530 is a compact and reliable 8-channel digital output module designed for modern automation systems. With high-side switching capability and robust protection, it ensures safe and efficient signal control in industrial applications.
Manufacturer: WAGO
Type: 8-Channel Digital Output
Model: 750-530
REF NO.: 4511 09 03 / 81288
Technical Information
- Number of Digital Outputs: 8
- Total Number of Channels (Module): 8
- Signal Type: Digital
- Signal Type (Voltage): 24 VDC
- Actuator Connection: 8 x (1-wire)
- Output Characteristic: High-side switching
- Output Current per Channel: 0.5 A
- System Supply Voltage: DC 5 V (via data contacts)
- Current Consumption (5V): 25 mA
- Number of Incoming Power Jumper Contacts: 2
- Number of Outgoing Power Jumper Contacts: 2
- Current Carrying Capacity (Power Jumper Contacts): 10 A
- Isolation Field “ System: 500 V AC
- Type of Signal: Voltage
- Switching Frequency: Max. 2000 Hz
- Operating Temperature: 0 / 55 °C
- Protection: IP20
- Dimensions: 12 x 100 x 67.8 mm
- Housing Material: Polycarbonate; Polyamide 6.6
