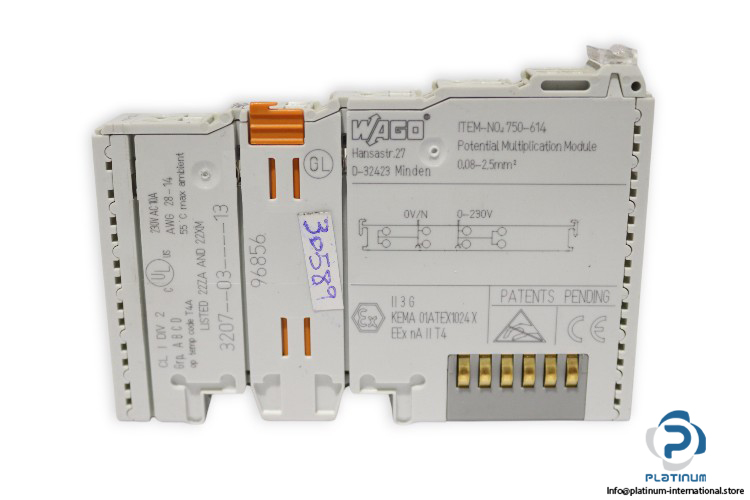

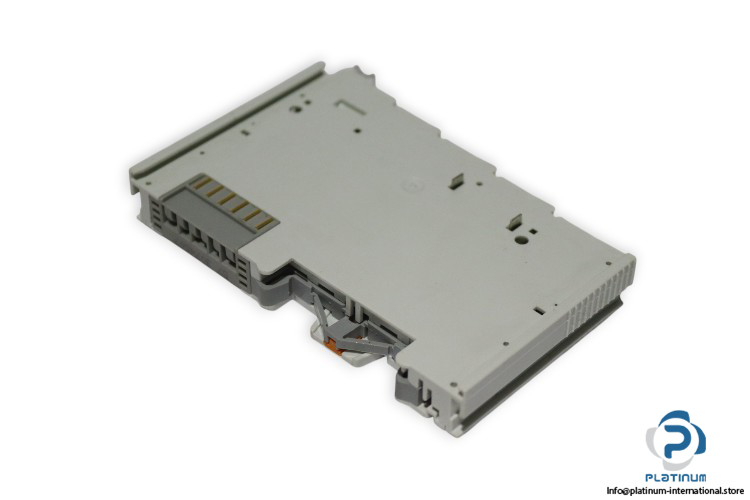

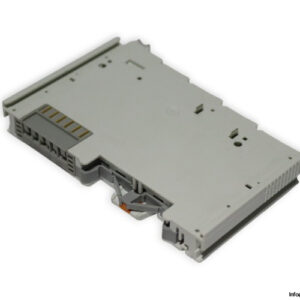

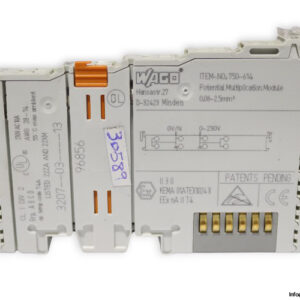

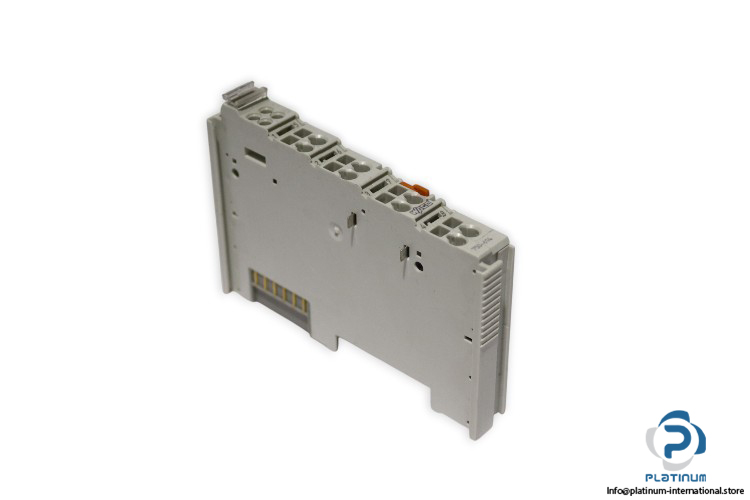

Wago 750-614 Potential Distribution Module
The Wago 750-614 potential distribution module is designed for safe and efficient power distribution in automation systems. Compact in design with IP20 protection, it supports a wide conductor range and provides reliable performance for both AC and DC applications.
Manufacturer: Wago
Type: Potential Distribution
Model: 750-614
Part No.: 3207 — 03 —- 13/ 96856
Code: CL | DIV 2/22ZA AND 22XM
Grp: ABCD
Temp. Code: T4A
KEMA: 01ATEX1024 X
Technical information
- Voltage: 230 V AC @ 10 A
- Wire: AWG 28 to 14
- Temperature: 55 °C max
- Solid Conductor: 0.08 to 2.5 mm²
- Signal Type (Voltage): 0 / 230 V AC/DC
- Number of Incoming/Outgoing Power Jumper Contacts: 2
- Protection Type: IP20
- Width: 12 mm / 0.472 inches
- Height: 100 mm / 3.937 inches
- Depth: 69.8 mm / 2.748 inches
- Depth from Upper-Edge of DIN-Rail: 62.6 mm / 2.465 inches
