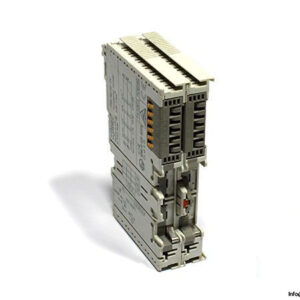

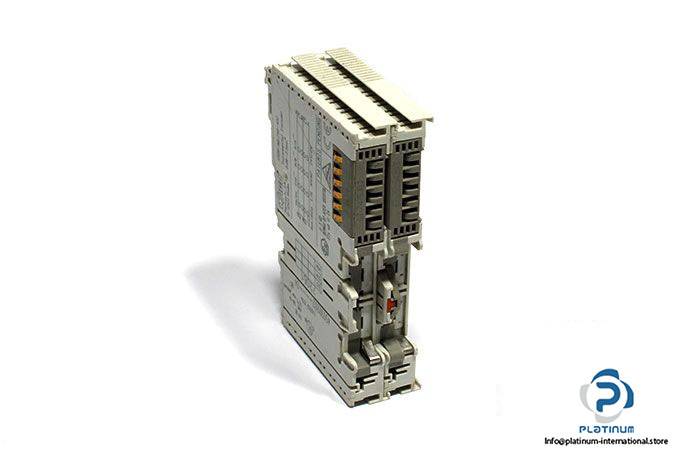

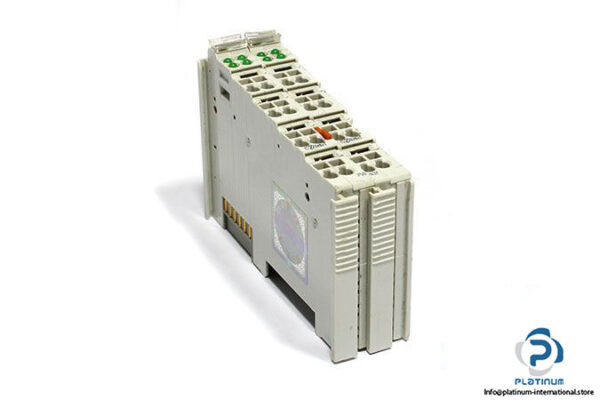

WAGO 750-637 INCREMENTAL ENCODER INTERFACE
The WAGO 750-637 is a high-precision incremental encoder interface module designed for fast and reliable signal acquisition in automation systems. Engineered for industrial environments, this unit supports RS-422 differential inputs and delivers excellent performance at high frequencies.
Manufacturer: WAGO
Type: Incremental Encoder Interface
Model: 750-637

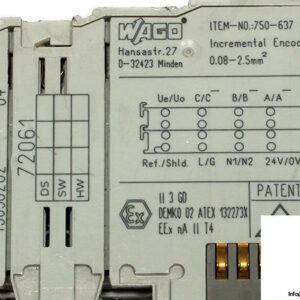

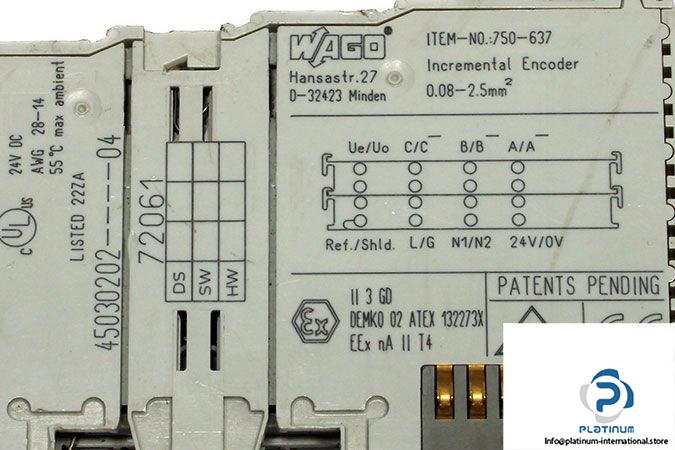

Ref No.: 45030202-04 / 72061
Technical Information
- Counter Depth: 32 bits
- Supply Voltage (Encoder): 5 V DC
- Supply Current (Encoder) Max.: 300 mA

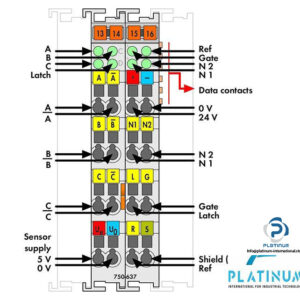

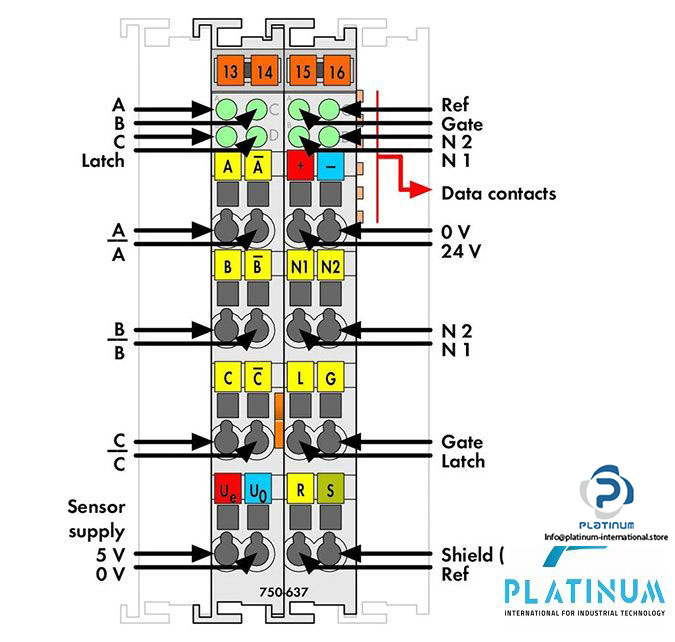

- Encoder Connection: A; /A; B; /B; C; /C (RS-422 Inputs)
- Output Voltage: 24 V DC
- Supply Voltage (System): 5 VDC; Via Data Contacts
- Limit Frequency: 250 kHz
- Current Consumption (5 V System Supply): 110 mA
- Connection Technology: Inputs/Outputs 16 X CAGE CLAMP®
- Dimensions: 24 x 69.8 x 100 mm
- Protection Class: IP20
- Explosion Proof: Ex
- Ambient Temperature (Operation): 0 / 55 °C
