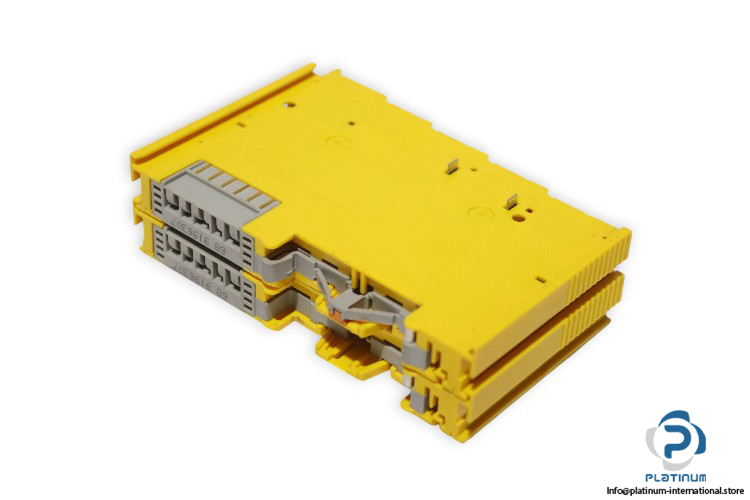

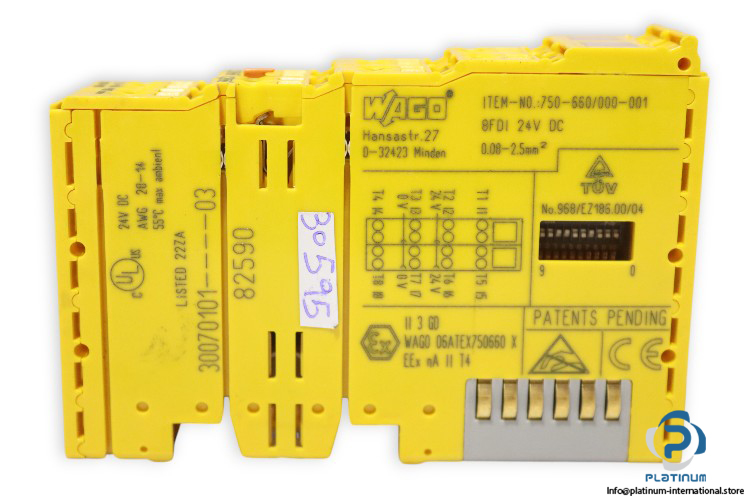

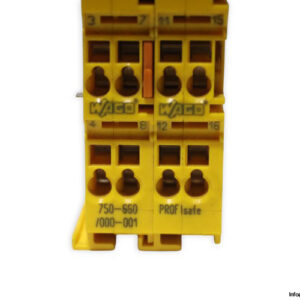

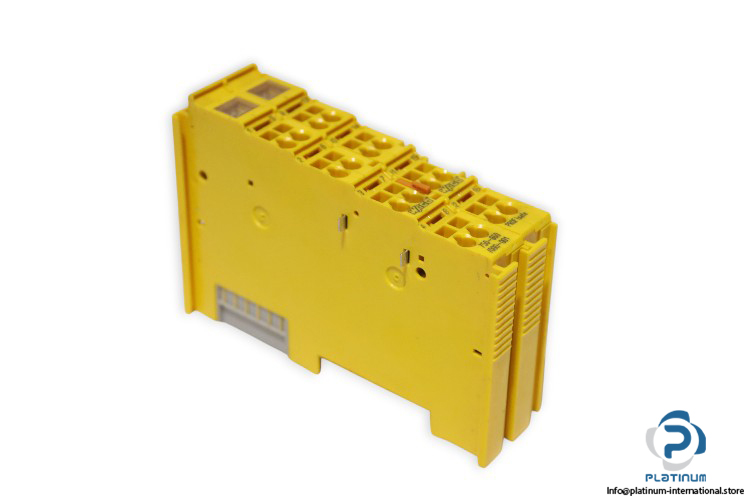

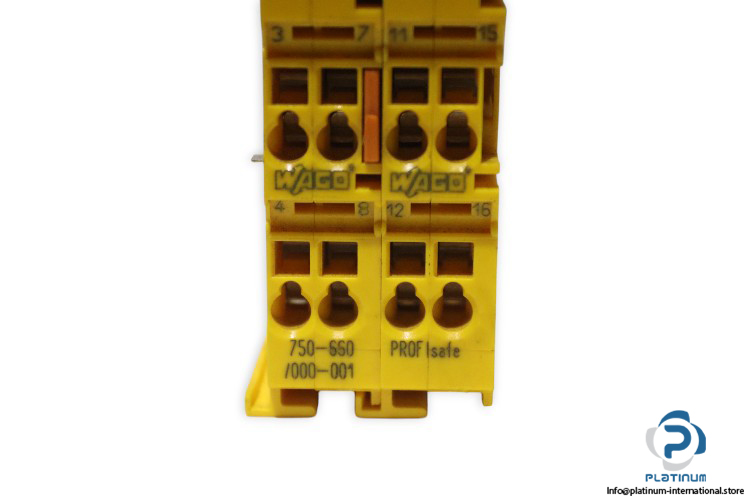

WAGO 750-660 8-Channel Digital Input Module

The WAGO 750-660 is a high-performance 8-channel digital input module designed for reliable PROFIsafe communication and robust industrial automation systems. With advanced safety features, flexible configuration, and LED indicators for easy monitoring, this module ensures safe and efficient operation in demanding environments.

Manufacturer: WAGO
Type: 8-Channel Digital Input
Model: 750-660
ID No.: 750-660/000-001
Ref No.: 30070101 03/ 82590

Technical Information

• Protocols: PROFIsafe V1.3
• Configuration Options: PROFIsafe address adjustable via DIP switch or engineering software
• Indicators: LED (A-H) green: Status I1 / I8; LED (I-K) red: internal, external; LED (L) yellow: error operator
• Total Number of Channels (Module): 8
• Pluggable Connector: Fixed
• Number of Digital Inputs: 8
• Signal Type: Digital
• Signal Voltage: 24 VDC
• Sensor Connection: 8 x (Fail-safe input with test pulse)
• Number of Incoming Power Jumper Contacts: 2
• Number of Outgoing Power Jumper Contacts: 2
• Current Carrying Capacity (Power Jumper Contacts): 10A
• Connectable Conductor Materials: Copper
• Housing Material: Polycarbonate; Polyamide 6.6
• Dimensions: 100 x 67.8 x 60.6 mm
• Explosion Proof: Yes
