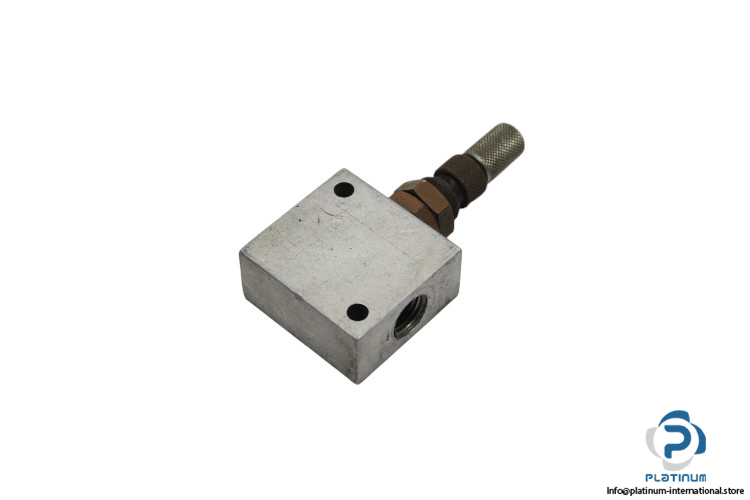

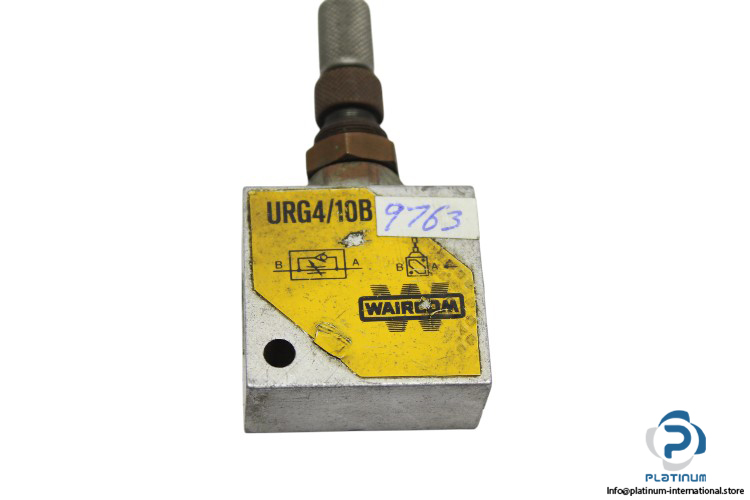

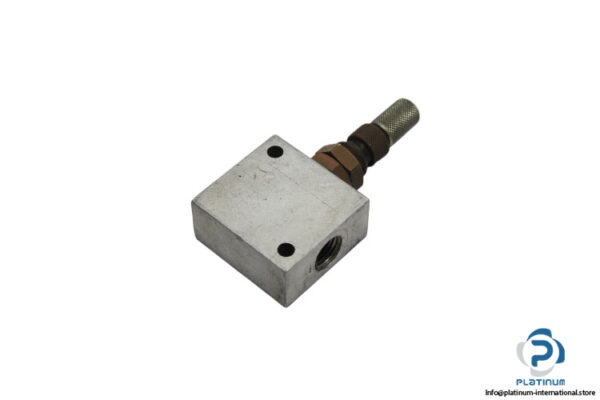

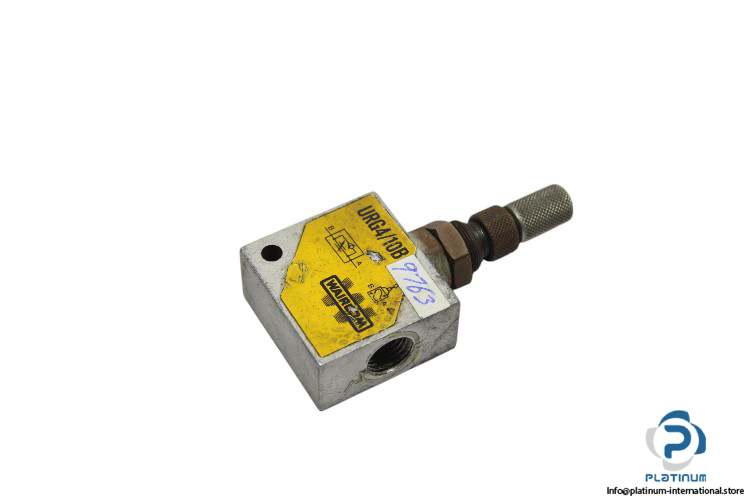

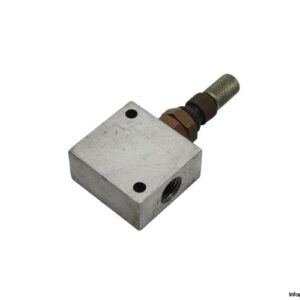

Waircom URG4/10 B Flow Control Valve
The Waircom URG4/10 B Flow Control Valve is designed for precise control of compressed air flow in various pneumatic systems. Made from anodized aluminium alloy and featuring brass components, this valve ensures reliable operation under a wide range of conditions.
Manufacturer: Waircom
Type: FLOW CONTROL VALVE
Model: URG4/10 B
Technical Information:
- Fluid: Filtered, unlubricated or continuous lubricated compressed air
- Housing Material: Anodized aluminium alloy
- Needle Guide and Nuts Material: Brass
- Seals: NBR rubber
- Maximum Pressure: 12 bar
- Operating Temperature: 0 to 80 °C
- Nominal Diameter: 7.2 mm
- Pneumatic Connection Port 1: G1/4
- Pneumatic Connection Port 2: G1/4
The Waircom URG4/10 B flow control valve provides optimal air flow regulation in pneumatic systems, ensuring reliable performance even under challenging conditions, with high-quality materials and a wide operating range.
