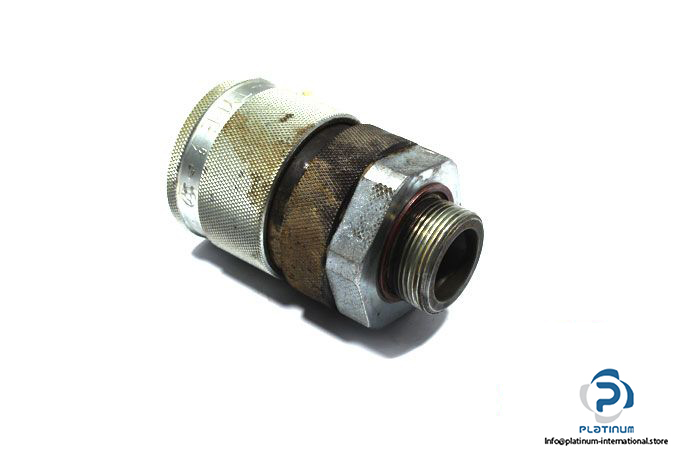

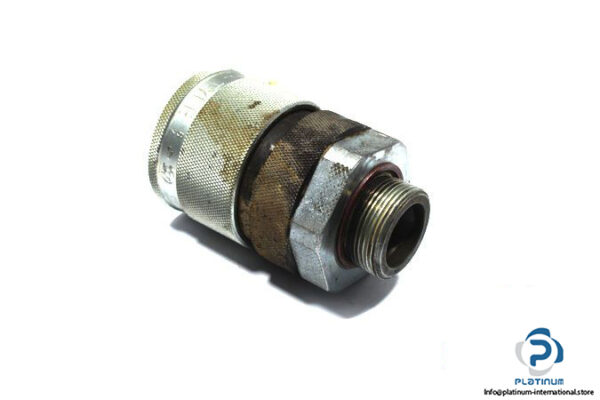

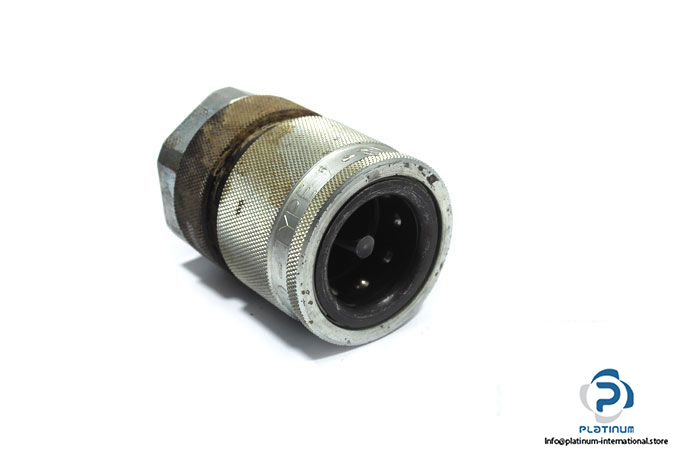

Manufacturer: WALTHER-PRAZISION
Type: Quick Coupling System
Model: MD-032-2-D3245-19-1
Features: metric male thread with 60° sealing cone
Max. Pressure: 200 bar
Burst Pressure: 700 bar
CV Value: 29.40
Nominal Flow(water, 20 °C, Δp = 1 bar): 419.86 l/m
Nominal Flow(Air, 20 °C, Δp = 1 bar): 1,487.84 m3/h
Nominal Bore: 32
Connection A: M 45 x 1.5
Cross Section: 800 mm2
Fluid Temperature Range: -25 … 80°C
Weight: 2.5 Kg
