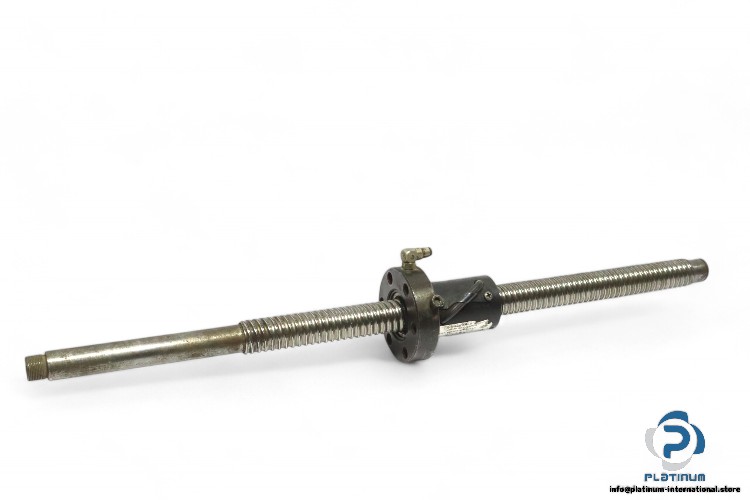

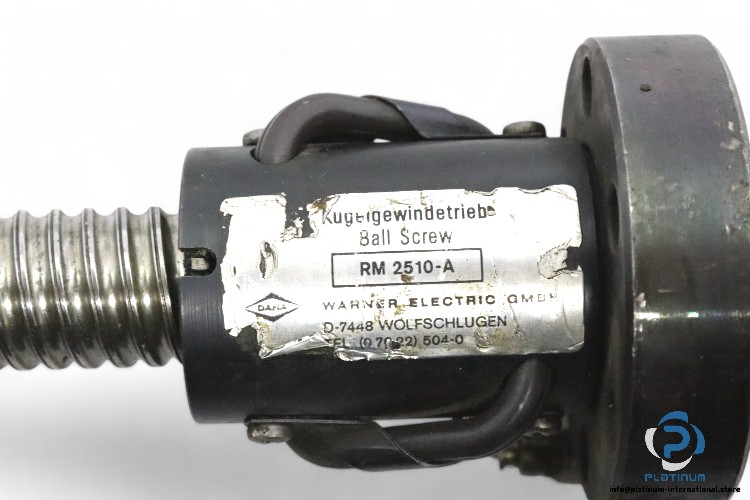

Ball Screw (Type A-for single bearing) (Model: RM2510 A)

Manufacturer: Warner Electric-Thomson

Type: Ball Screw (Type A-for single bearing)

Model: RM2510 A

The Warner Electric-Thomson Ball Screw (Model: RM2510 A) is engineered for high-performance motion control, designed with a single bearing for optimal precision and smooth operation in various industrial applications.

• Manufacturer: Warner Electric-Thomson
• Type: Ball Screw (Type A-for single bearing)
• Model: RM2510 A
• Size: 25 x 10 R
• Nominal Diameter (dN): 25 mm
• Lead (P): 10 mm
• Number of Starts: 2
• Direction of Lead: Right-Hand Thread
• Threaded Length: 395 mm
• Total Screw Length: 555 mm
