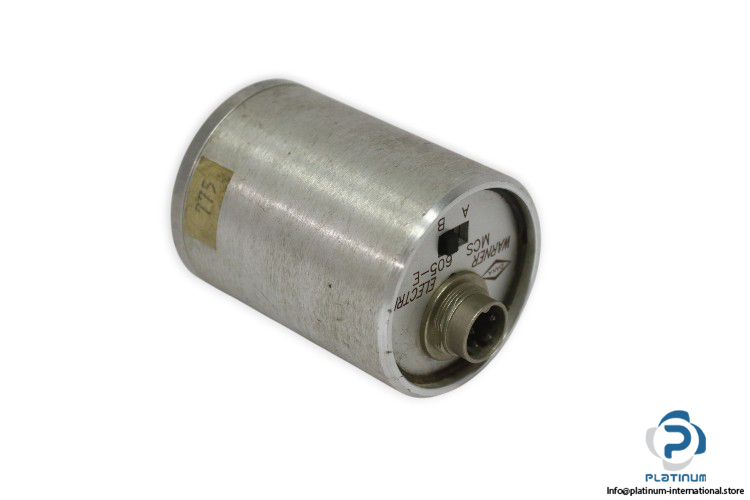

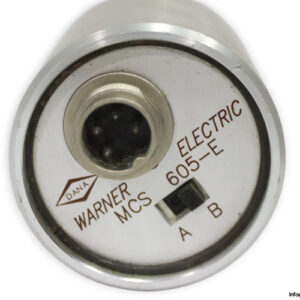

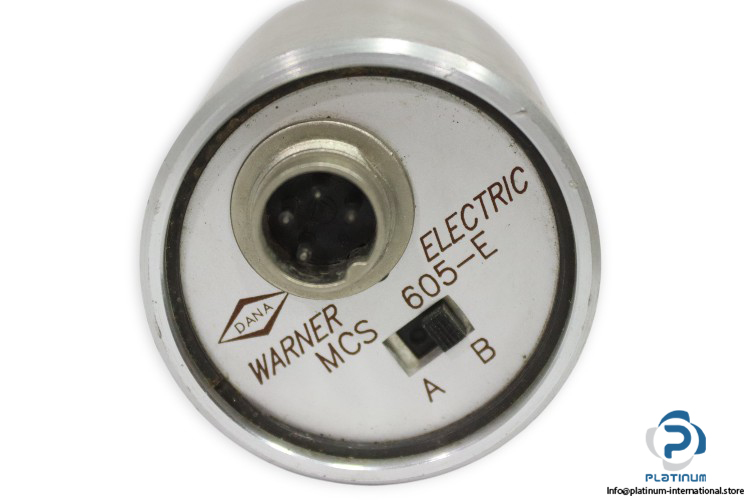

Warner Electric MCS605-E Rotary Sensor
The Warner Electric / Dana MCS605-E Rotary Sensor from the MCS series is designed for accurate angular detection in industrial applications. With high sensitivity and versatile power options, it ensures reliable and precise performance.
Manufacturer: Warner Electric / Dana
Type: Rotary Sensor
Model: MCS605-E
Series: MCS
Technical Information
- Power Supply: 10 to 30 VDC / 30 mA (or ±5 to 15 VDC)
- Max. Detection Angle: 200° or ±100°
- Sensitivity: 2.5 mV / V / °
- Automatic Setting: By dancer arm
- Switch: Small toggle switch labeled A / B
