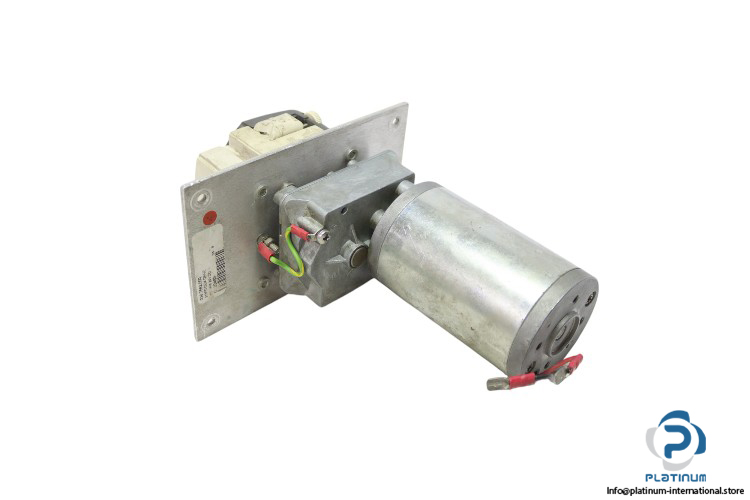

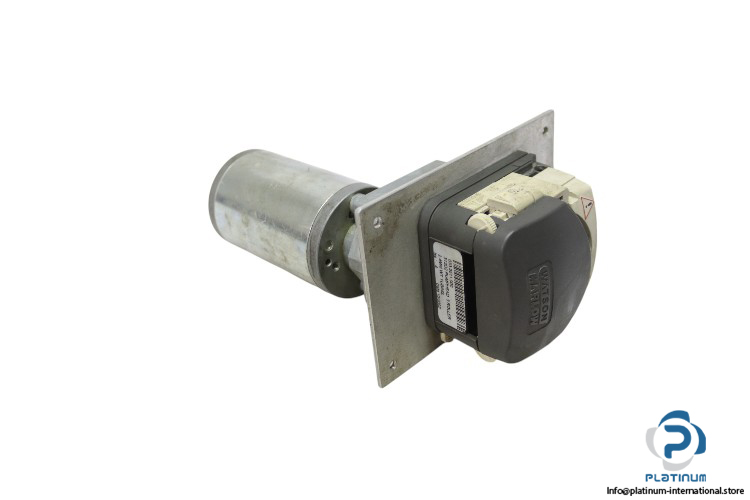

WATSON-MARLOW 033.3511.000 FLIP-TOP PUMP

This Watson-Marlow flip-top pump system, featuring the 313D2 pump head, offers precision fluid handling with high flow range flexibility. Designed for OEM integration, it includes a compatible 24 V DC drive and high-speed motor, delivering reliable performance in industrial and laboratory settings.

Manufacturer: Watson-Marlow
Type: Flip-Top Pump
Model: 033.3511.000

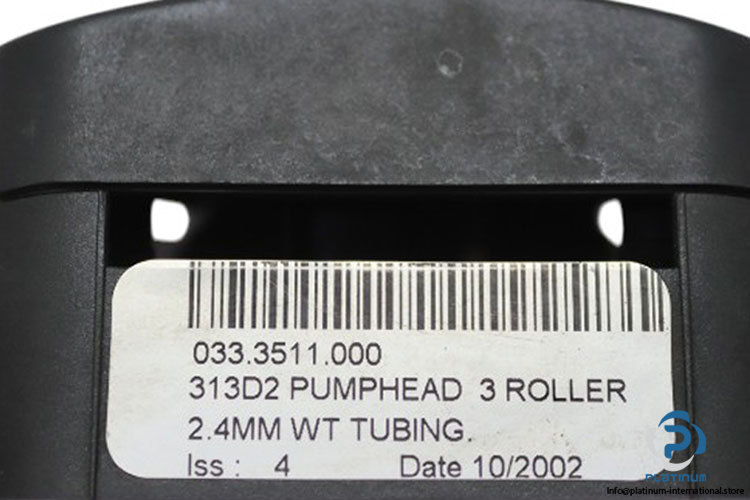

Pump Head: 313D2

Technical Information

• Pump Head Number of Rollers: 3
• Compatible Tubing Wall Thickness: 2.4 mm
• Pump Head Number of Channels: 1
• Speed: 3 to 400 rpm
• Speed Control Ratio: 133:1, 27:1
• Operating Temperature Range: 5 to 40 °C
• Max. Flow Rate: 2000 ml/min
• Min. Flow Rate: 0.81 ml/min
• Issue: 4

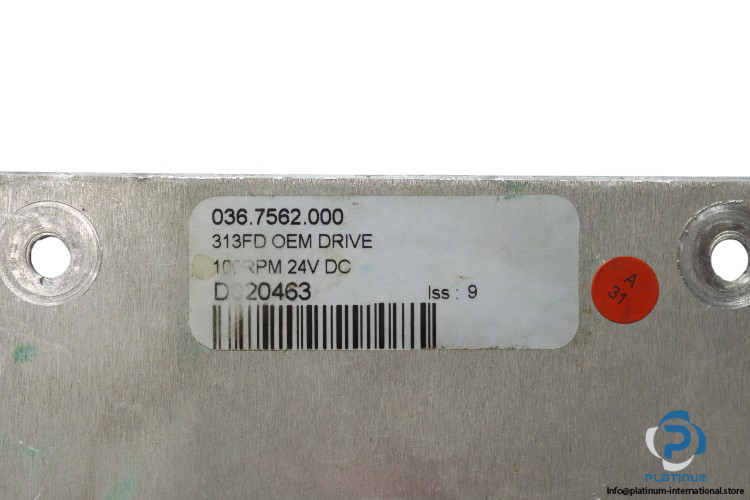

Attachment 1: OEM DRIVE

Manufacturer: Watson-Marlow
Type: OEM Drive
Model: 036.7562.000
Part No.: 313FD
Code: D020463

• Speed: 100 rpm
• Voltage: 24 V DC
• Issue: 9

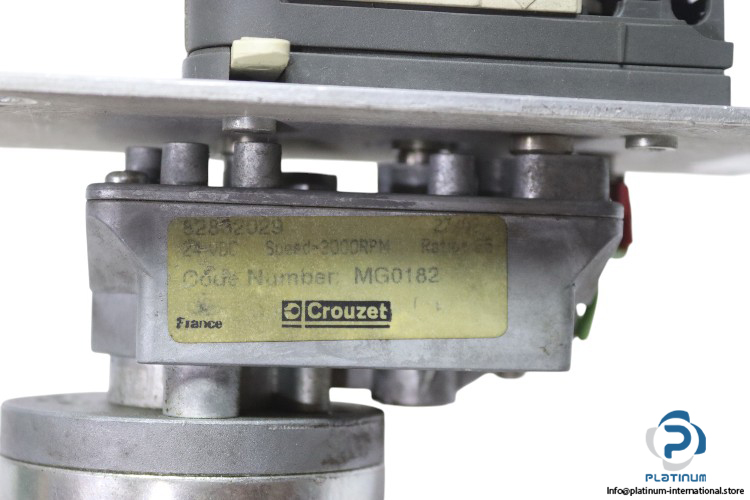

Attachment 2: MOTOR

Manufacturer: Crouzet
Type: Motor
Model: MG0182
Part No.: 82832029

• Speed: 3000 rpm
• Voltage: 24 V DC
• Ratio: 25
