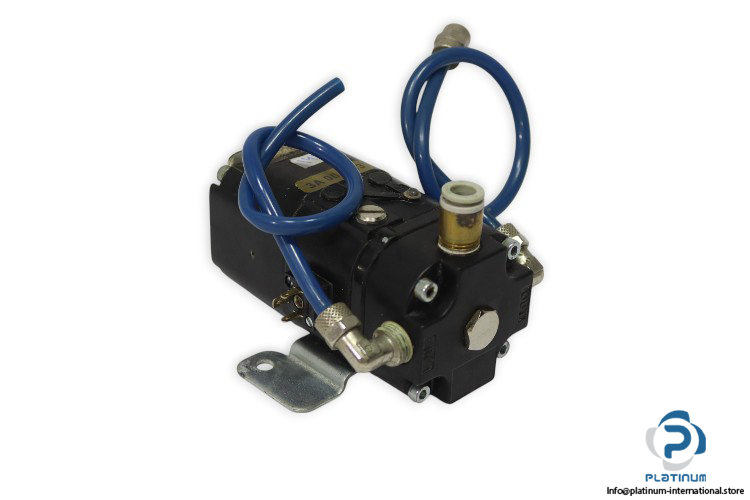

WATSON SMITH 100X I/P CONVERTER

High-performance I/P converter designed for industrial automation and process control. The 100X model from Watson Smith ensures accurate signal conversion from current to pneumatic pressure, with robust environmental protection and certified safety standards.

• Manufacturer: Watson Smith
• Type: I/P Converter
• Model: 100X

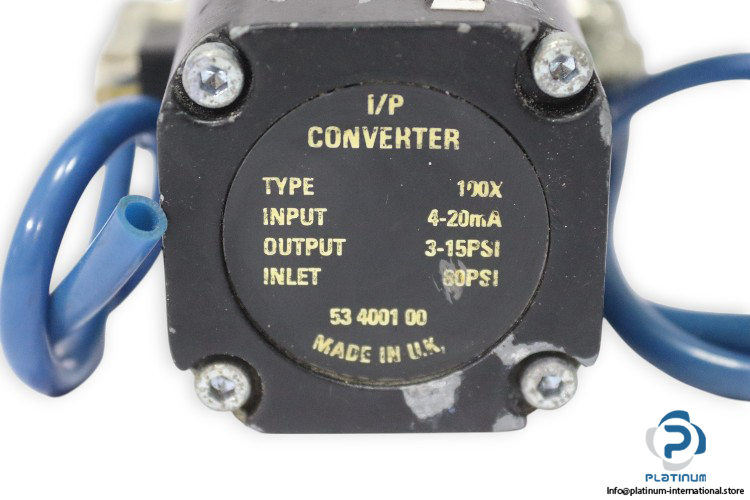

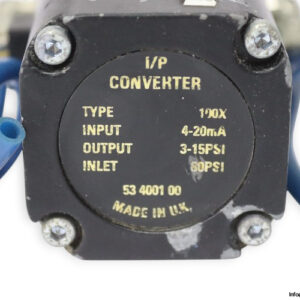

• Part No.: 53 4001 00

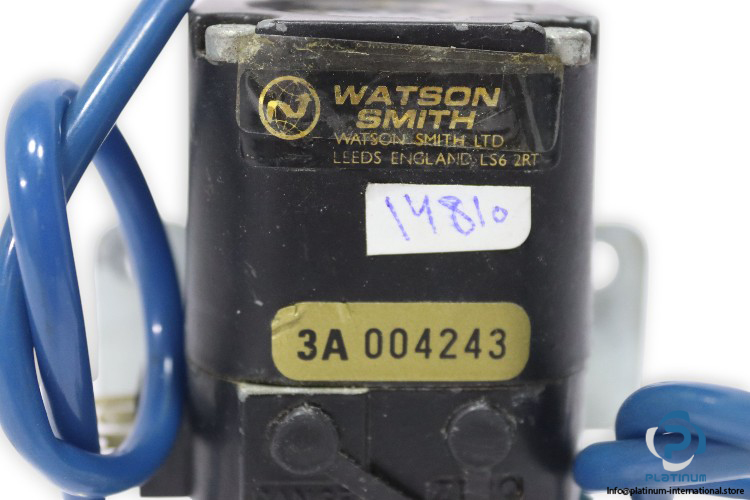

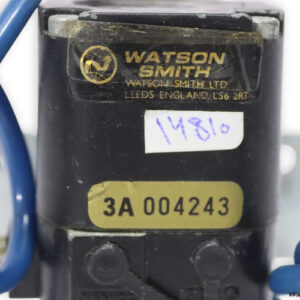

• Ref. No.: 3A 004243

Technical Information

• Input Signal: 4 to 20¯mA
• Output Pressure Range: 3 to 15¯psi
• Inlet Pressure Range: 80 psi
• Air Supply Requirement: Dry, oil-free, filtered
• Flow Rate: Up to 300¯Nl/min (typical at low range: 0.85¯L/min)
• Temperature Range: -40 to +85¯°C
• Ingress Protection: IP65
• Port Size: G1/8
• Material: Zinc die-cast with epoxy paint, nylon cover, NBR diaphragms
• Certifications: ATEX / FM
