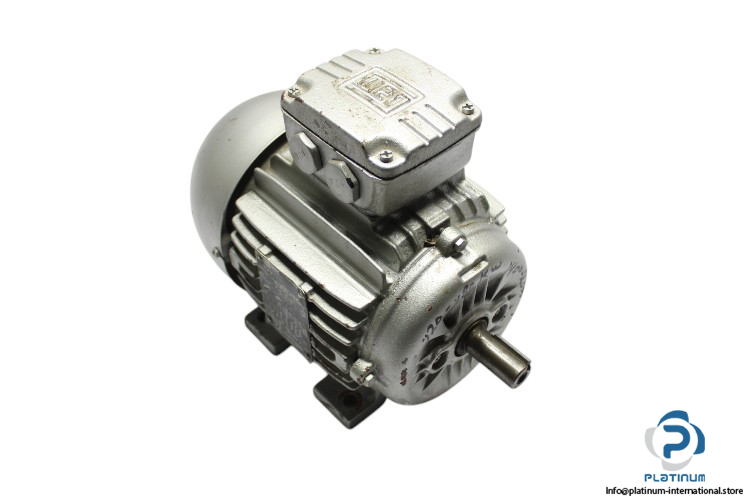

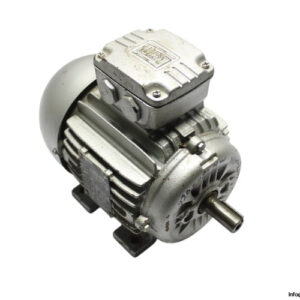

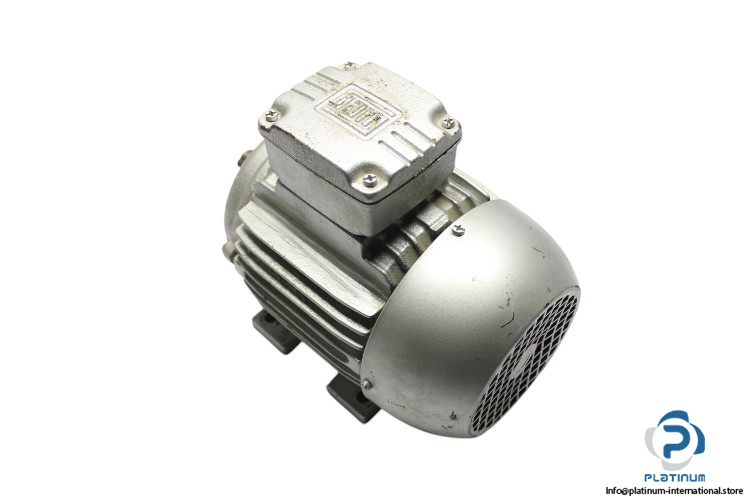

WEG 3-PHASE ELECTRIC MOTOR
The WEG 3-Phase Electric Motor (Model: 80-04/02) offers reliable performance for a wide range of industrial applications. With a rated power of 0.20 / 0.80 kW and rated speeds of 1400 / 2820 RPM, this motor provides excellent efficiency with a power factor of 0.70 / 0.83. It features protection class IP55 and insulation class H for robust and durable operation in demanding environments.
Manufacturer: WEG
Type: 3-Phase Electric Motor
Model: 80-04/02
Technical Specifications
- Rated Voltage: 400 V
- Rated Speed: 1400 / 2820 RPM
- Rated Power: 0.20 / 0.80 kW
- Rated Current: 0.602 / 1.91 A
- Rated Frequency: 50 Hz
- Power Factor: 0.70 / 0.83
- Insulation Class: H
- Protection Class: IP55
- Duty: S1
