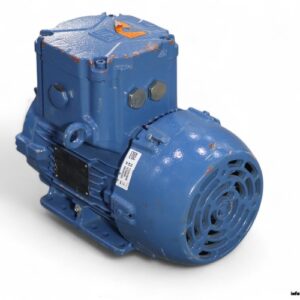

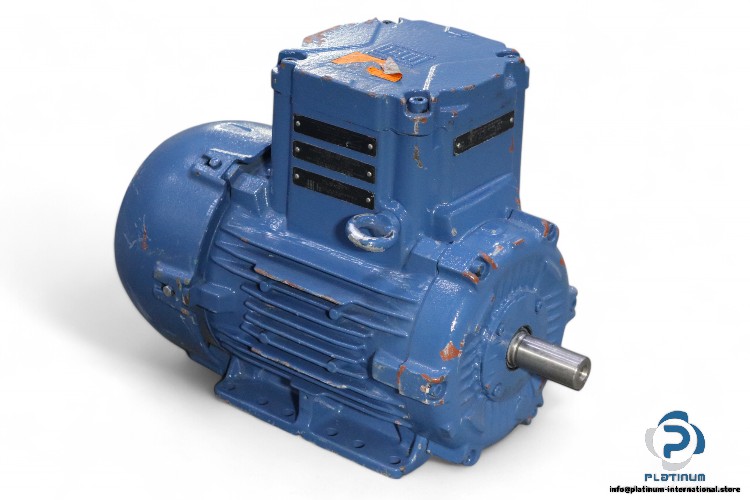

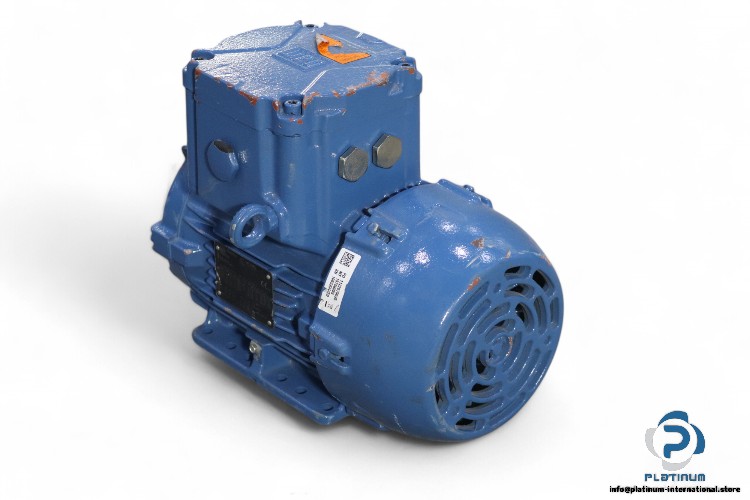

WEG 3-PHASE Electric Motor Model: 90S/L-02
The WEG 3-Phase Electric Motor Model 90S/L-02 offers reliable and efficient performance with high explosion protection and advanced insulation. Ideal for various industrial applications, it delivers consistent power across a wide range of voltages and frequencies.
Manufacturer: WEG
Type: 3-PHASE Electric Motor
Model: 90S/L-02

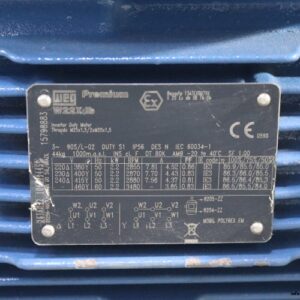

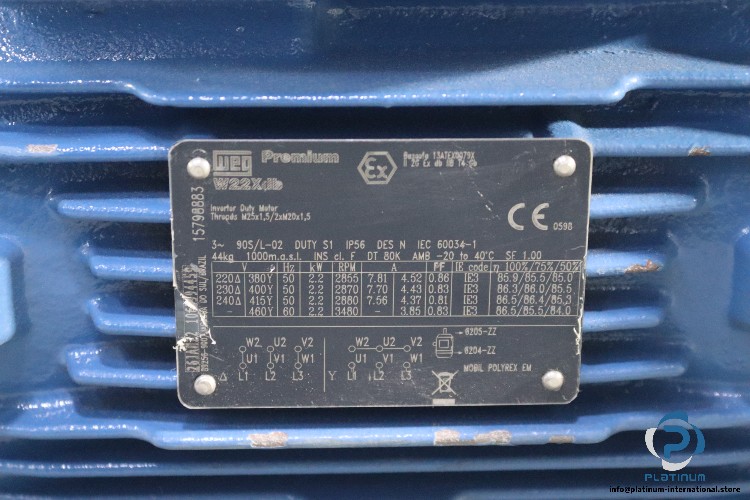

Technical Specifications
- Explosion Protection: II 2G Ex db IIB T4 Gb (Ex)
- Frame: 90S/L
- Rated Voltage [V]: (220D/380Y), (230D/400Y), (240D/415Y), (460Y)
- Rated Speed: 2855/2870/2880/3480 RPM
- Rated Frequency: 50/50/50/60 Hz
- Rated Power: 2.2 kW
- Power Factor: 0.86/0.83/0.81/0.83
- Rated Current: 7.81/7.7/7.56 A
- Insulation Class: F
- Protection: IP56
- Duty: S1
- Ambient Temperature: -20 to 40 °C
