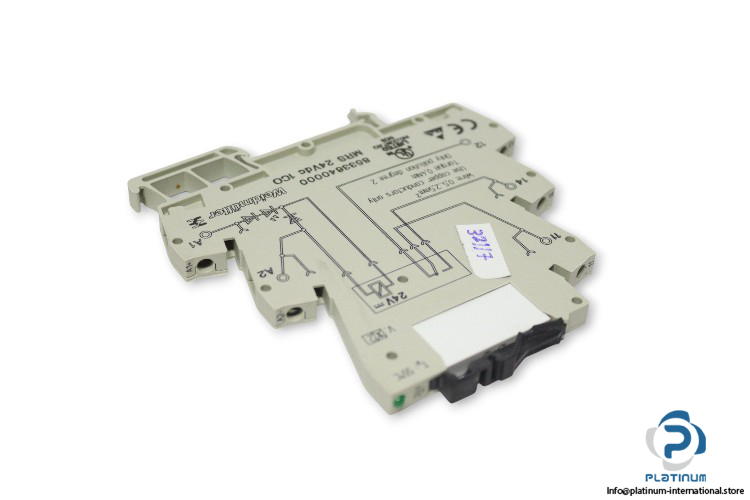

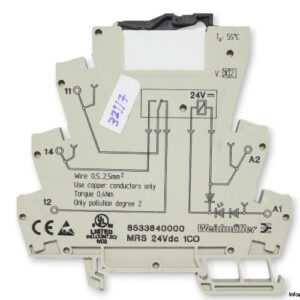

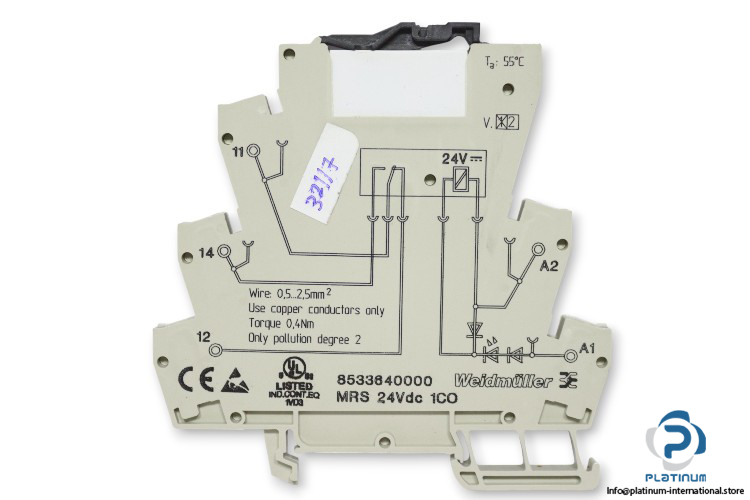

Weidmüller MRS 24VDC 1CO Relay Module

The Weidmüller MRS 24VDC 1CO Relay Module is a compact and reliable interface module designed for precise switching applications in industrial automation systems. It provides stable performance, long electrical lifespan, and secure installation in control cabinets.

Manufacturer: Weidmüller
Type: Relay Module
Model: MRS 24VDC 1CO
Part No.: 8533640000

Technical Information

• Rated Control Voltage: 24 V DC
• Rated Current: 6.6 mA
• Power: 160 mW
• Contact: 1 Changeover (CO)
• Rated Switching Voltage: 250 V AC/DC
• Rated Switching Current: 6 A
• Rated Switching Capacity: 144 W
• Protection Class: IP20
• Operating Temperature: -25 / 55 °C
• Dimensions: 93 x 6.1 x 94 mm

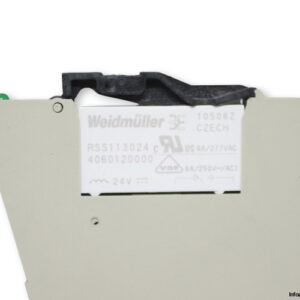

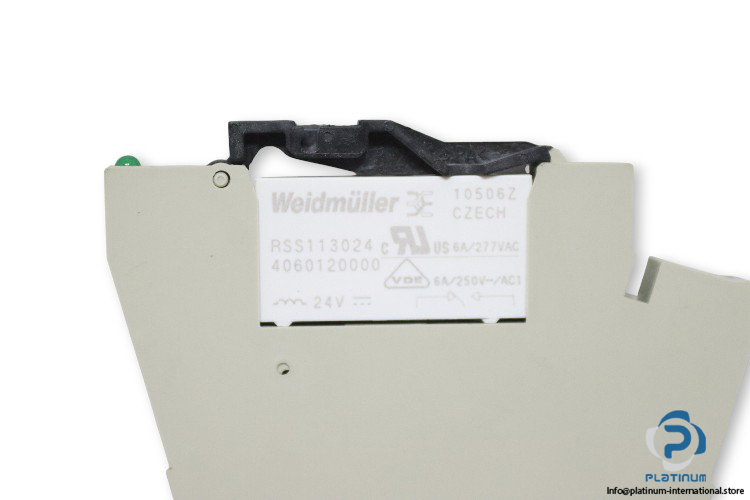

Attached Relay Module

Manufacturer: Weidmüller
Type: Relay
Model: RSS113024
Part No.: 4060120000

• Rated Control Voltage: 24 V DC
• Rated Current: 7 mA
• Power: 170 mW
• Contact: 1 Changeover (CO)
• Rated Switching Voltage: 250 V AC/DC
• Rated Switching Current: 6 A
• Rated Switching Capacity: 144 W
• Protection Class: IP20
• Operating Temperature: -40 / 85 °C
• Dimensions: 28 x 5 x 15 mm
