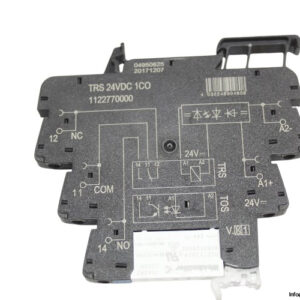

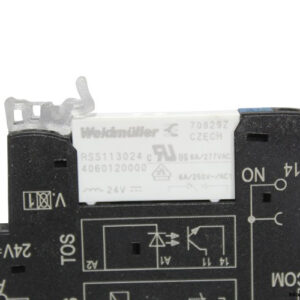

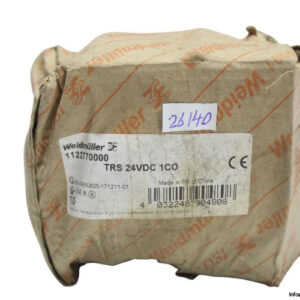

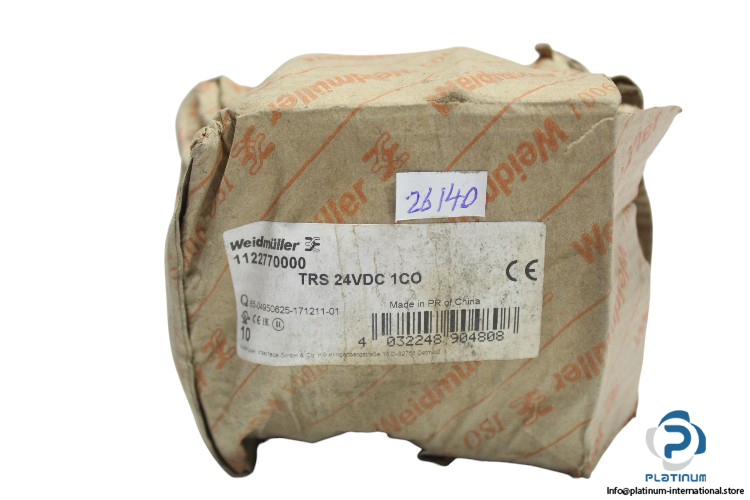

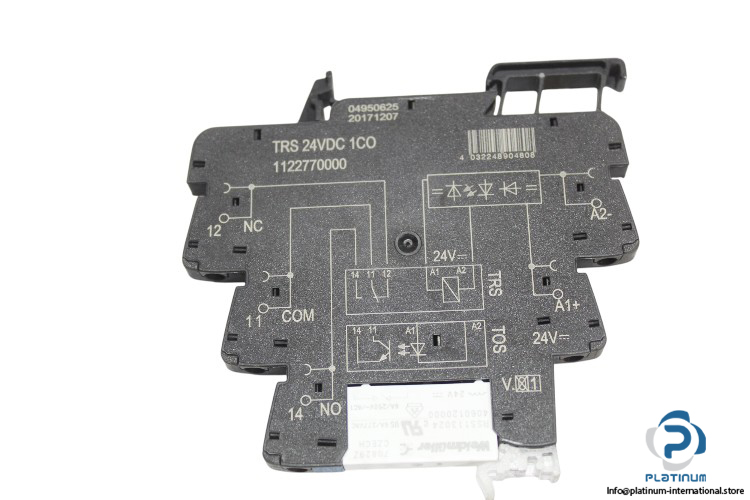

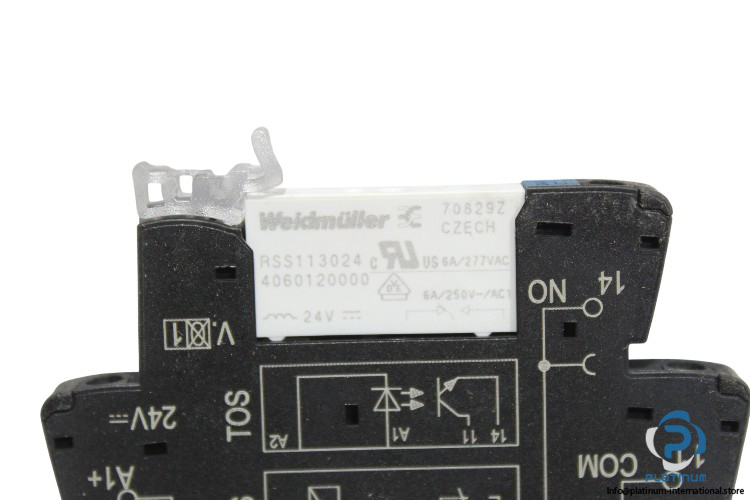

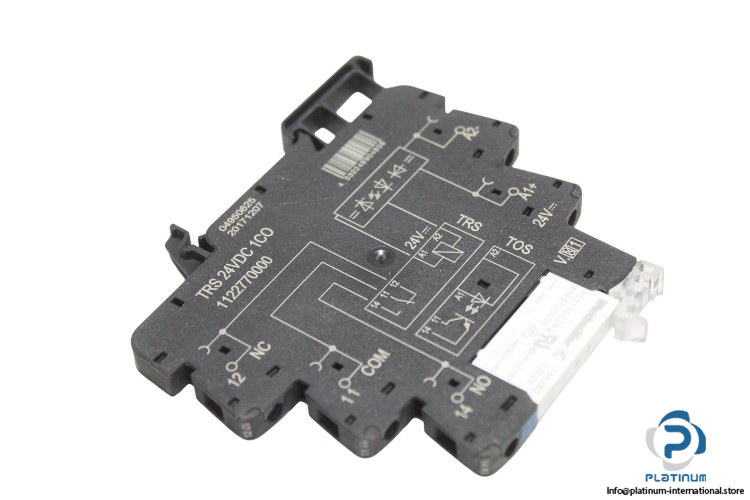

WEIDMULLER TRS 24VDC 1CO RELAY MODULE

weidmuller-TRS-24VDC-1CO-relay-module-(new)
weidmuller-TRS-24VDC-1CO-relay-module-(new)-1
weidmuller-TRS-24VDC-1CO-relay-module-(new)-2
weidmuller-TRS-24VDC-1CO-relay-module-(new)-3
weidmuller-TRS-24VDC-1CO-relay-module-(new)
weidmuller-TRS-24VDC-1CO-relay-module-(new)-1
weidmuller-TRS-24VDC-1CO-relay-module-(new)-2
weidmuller-TRS-24VDC-1CO-relay-module-(new)-3

WEIDMULLER TRS 24VDC 1CO RELAY MODULE

Relay Module

The Weidmuller TRS24VDC1CO relay module operates at 24 V DC with a 6 A continuous current and features a 1 CO contact. Its compact design and screw connection method make it ideal for automation and control systems.

SKU: 1056567 Category: Tags: , , , , , , , , , , , , , , ,
In stock: 10 pcs
Low stock
Only 10 items remaining.
Add to quote

Weidmuller TRS24VDC1CO “ Relay Module

The Weidmuller TRS24VDC1CO relay module is designed for efficient and reliable switching in industrial control systems. With a 24 V DC rated control voltage and a compact design, it is ideal for a wide range of automation applications.

  • Manufacturer: Weidmuller
  • Type: Relay Module
  • Model: TRS24VDC1CO
  • Order No.: 1122770000
  • Series: TERMSERIES

Technical Information:

  • Tightening Torque: max. 0.4 Nm
  • Rated Control Voltage: 24 V DC
  • Rated Current: 11.5 mA
  • Power Rating: 280 mW
  • Rated Switching Voltage: 250 V AC
  • Continuous Current: 6 A
  • Wire Connection Method: Screw connection
  • Contact Type: 1 CO contact
  • Operating Temperature: -40 to 60 °C
  • Dimensions (W x D x H): 6.4 x 87.8 x 89.6 mm
Weight0,35 kg
