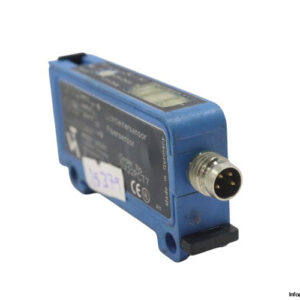

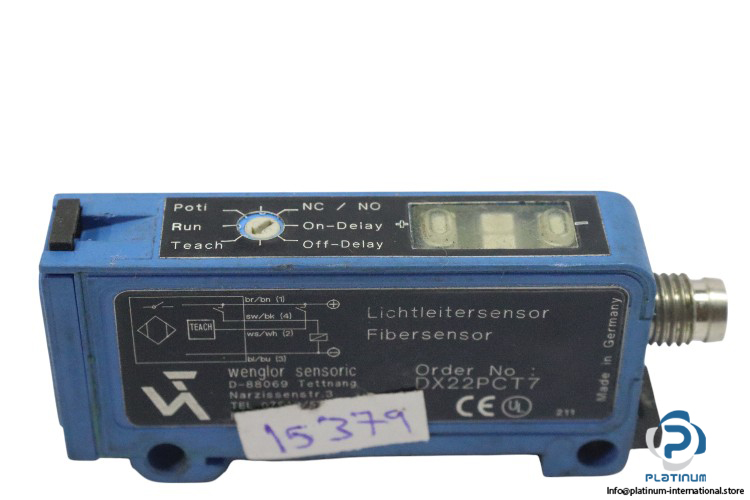

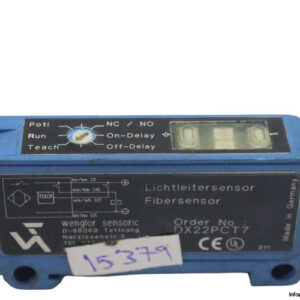

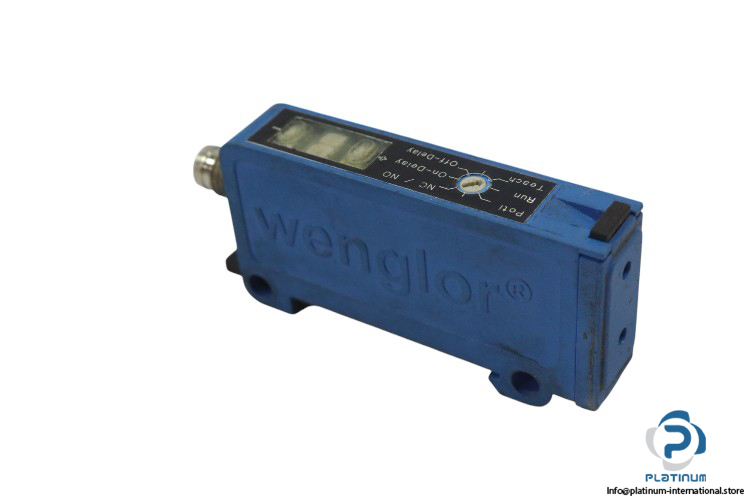

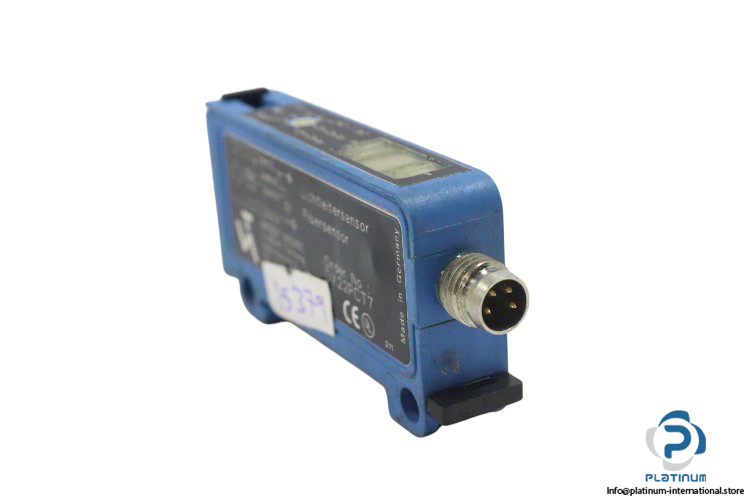

WENGLOR DX22PCT7 Photoelectric Reflex Sensor

The WENGLOR DX22PCT7 is a compact and high-performance photoelectric reflex sensor designed for precise object detection in industrial automation systems. With fast response times, robust IP65 housing, and reliable PNP electrical design, it ensures accuracy and durability in various applications.

Manufacturer: WENGLOR

Type: Photoelectric Reflex Sensor

Part Nr.: DX22PCT7

Technical Data:

• Response Time: 250 microseconds
• Time Delay: 0 / 200 ms
• Operating Voltage: 10 / 30 V DC
• Current Consumption: 40 mA
• Electrical Design: PNP
• Switching Frequency: 2 KHz
• Connector Type: M8, 4-pin
• Enclosure Rating: IP65
• Ambient Operating Temperature: -25 / 60°C
• Dimensions: 12 x 59 x 30 mm
• Housing: Rectangular
