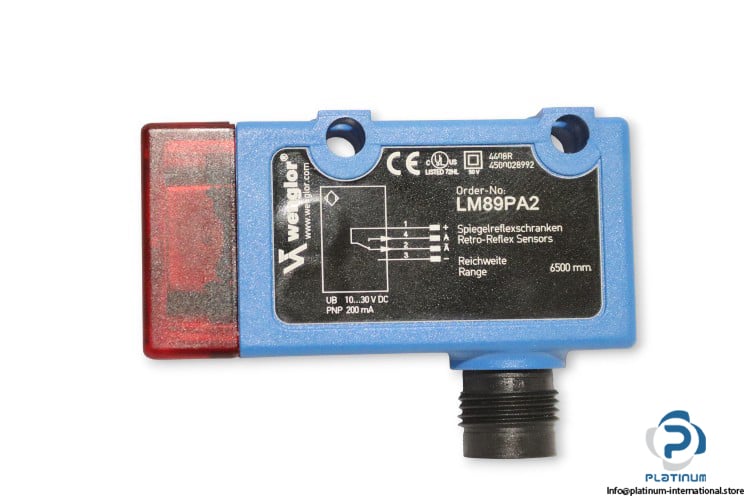

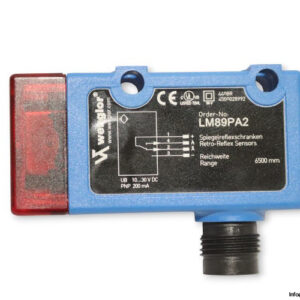

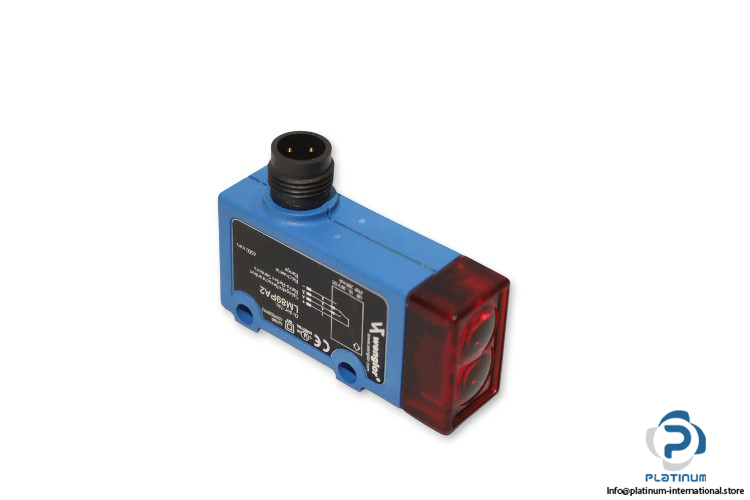

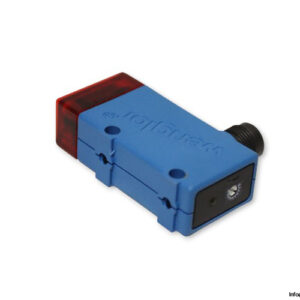

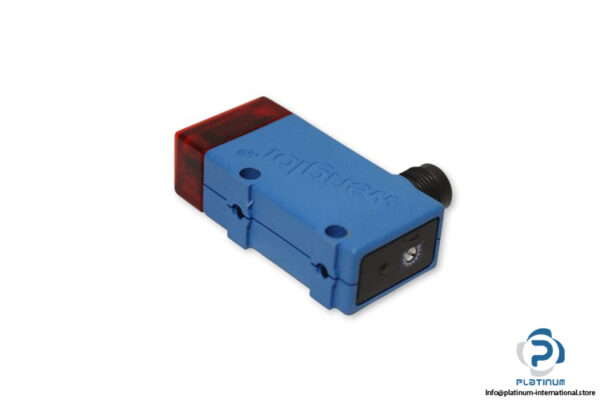

Wenglor LM89PA2 Retro Reflective Sensor

The Wenglor LM89PA2 Retro-Reflective Sensor is a high-performance optical sensor designed for reliable object detection using a red light source. With a long sensing range and durable housing, it ensures precise operation in demanding industrial environments.

Manufacturer: Wenglor
Type: Retro-Reflective Sensor
Model: LM89PA2
Part No.: 4500028992

Technical Information

• Sensing Range: 6,500 mm
• Housing Design (Light Emission): Rectangular
• Opening Angle: 5°
• Setting Method: Potentiometer
• Light Source: Red Light
• Operating Voltage: 10 / 30 V DC
• Switching Output: PNP NO
• Output Current: 200 mA

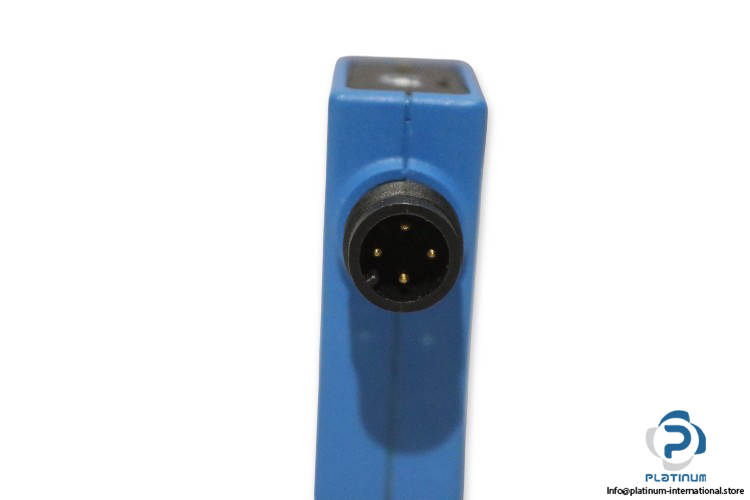

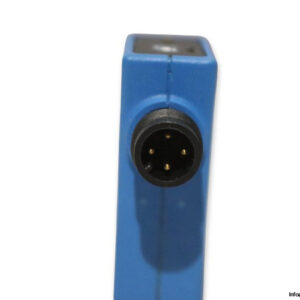

• Connection Type: Male Connector 1xM12, 4-pin
• Switching Mode: Light / Dark Switching
• Material: Plastic, PBT
• Protection Class: IP67
• Operating Temperature: -10 … 60 °C
• Dimensions (W x H x D): 22.4 x 12.4 x 54.5 mm
