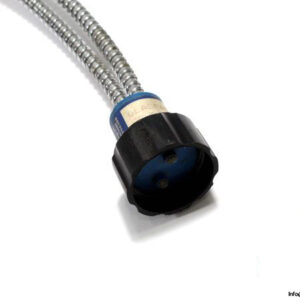

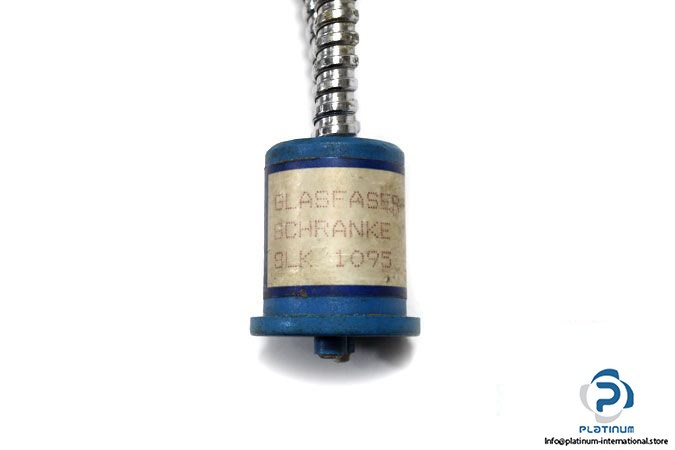

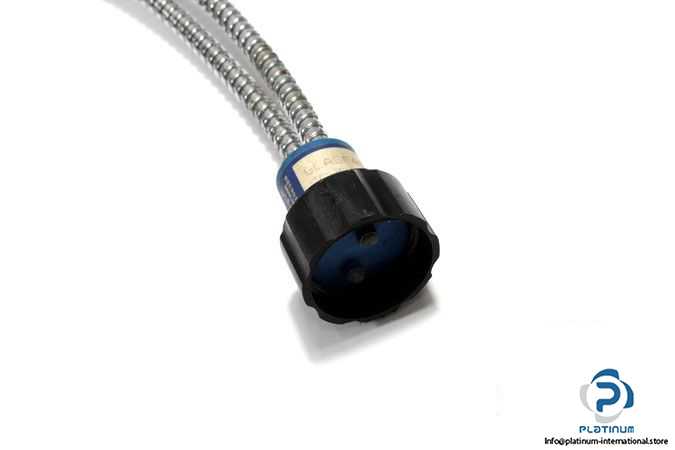

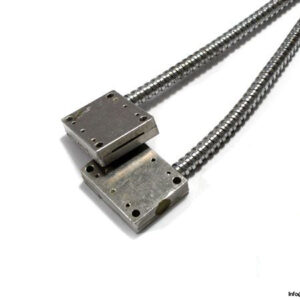

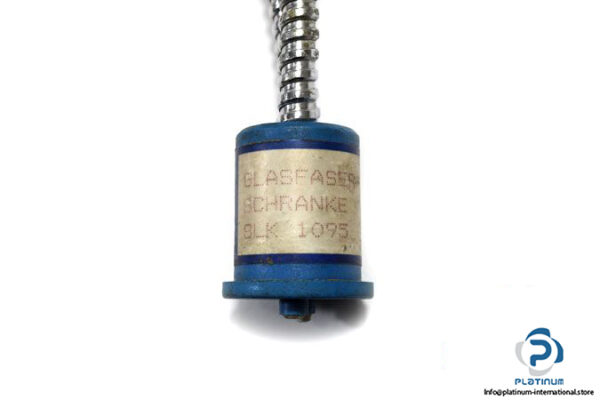

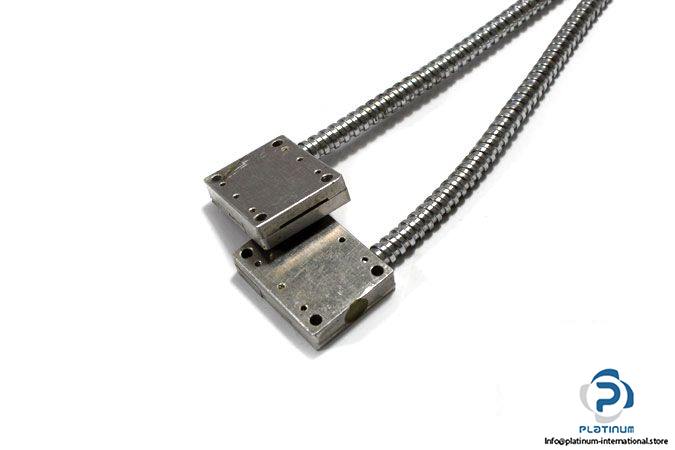

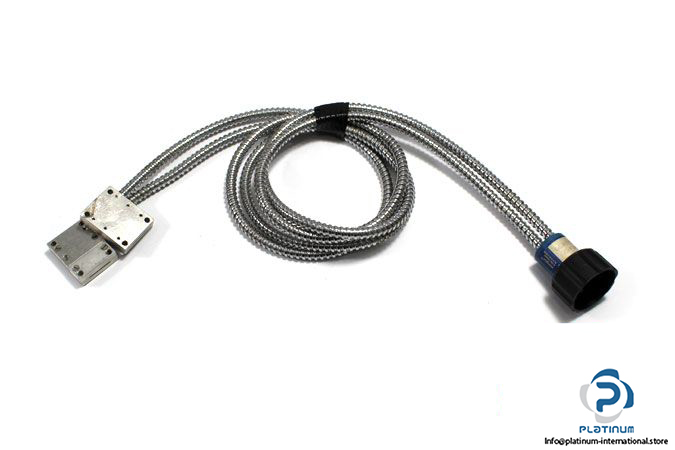

Manufacturer: WENGLOR
Type: Glass Fiber Optic Light Curtain
Model: SLK 1095
Part No.: 363-273-104

Features: For measuring tasks, Resistant to high temperature, Variable light emitting slot
Fiber Bundle Diameter: 3.6 mm
Range with Sensor Type UF55MV3: 130 … 600 mm
Range with Sensor Type UF22MV3: 50 … 250 mm
Range with Sensor Type U-55: 886 mm
Range with Sensor Type U-66: 1500 mm
Range with Sensor Type U-87: 1500 mm
Range with Sensor Type U-88: 1500 mm
Opening Angle: 68°
Ambient Operating temperature: -25 …. 250°C
Fiber diameter: 50 µm
Jacket material: CuZn, nickel-plated
Endpot material: Aluminium
Fiber optic length: 1 m
