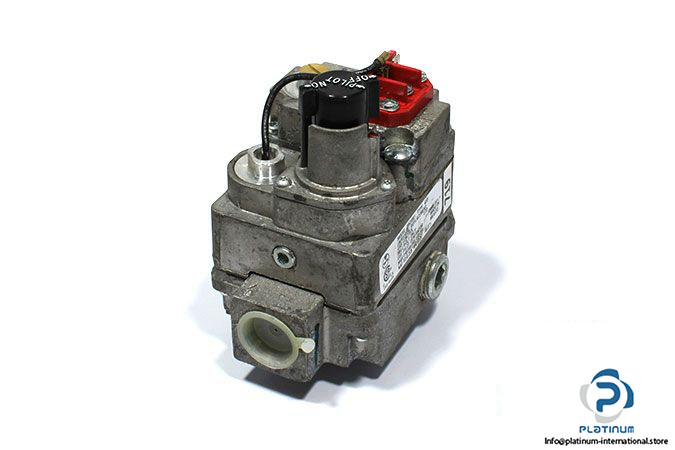

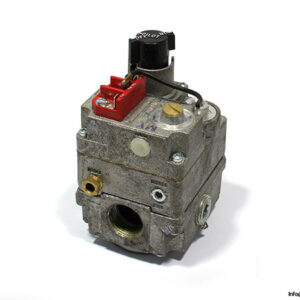

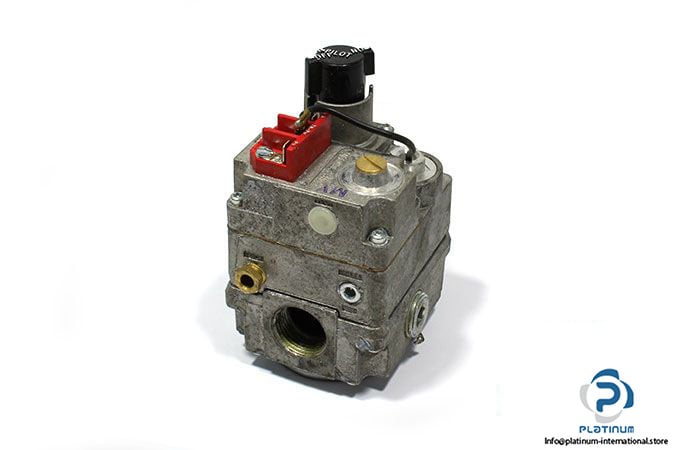

Manufacturer: WHITE-RODGERS
Type: COMBINATION GAS VALVE

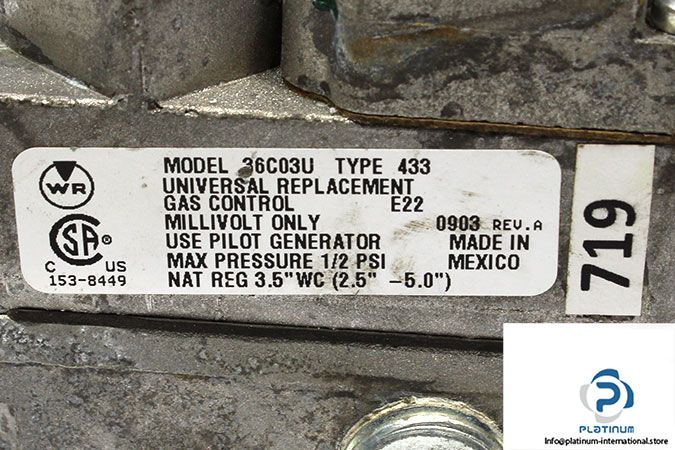

Model: 36C03U 433
Part No.:

Features
• Standing Pilot • Adjustable regulator(s)

• Single Stage • Inlet/outlet screens

• Fast Opening • Line interrupter

• Max. Capacity @ • Inlet/outlet pressure taps
1” PD = 280,000 BTU/HR • CSA approved

• Convertible – natural or LP gas • Optional sidetaps
Uses: For Furnaces, Boilers and Heaters
Pressure Rating max. 1/2 PSI
Voltage 750 mV
Power consumption:
Current: 0.23 Amps @ 24 VAC
Regulator pressure: 2.5″ … 5.0″ W.C.
Process connection: Female 3/4″ NPT x 3/4″ NPT
Working temp.: -40° to 79°C
Class:
Type of Gases: Nat. Gas, LP Gas
