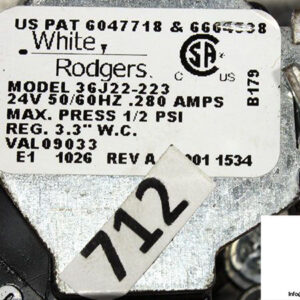

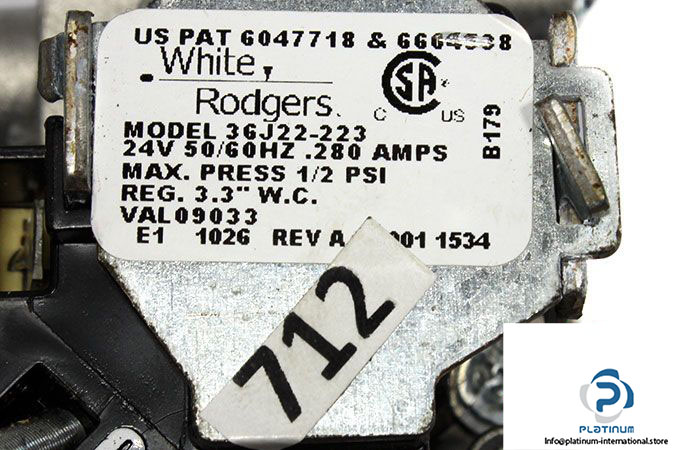

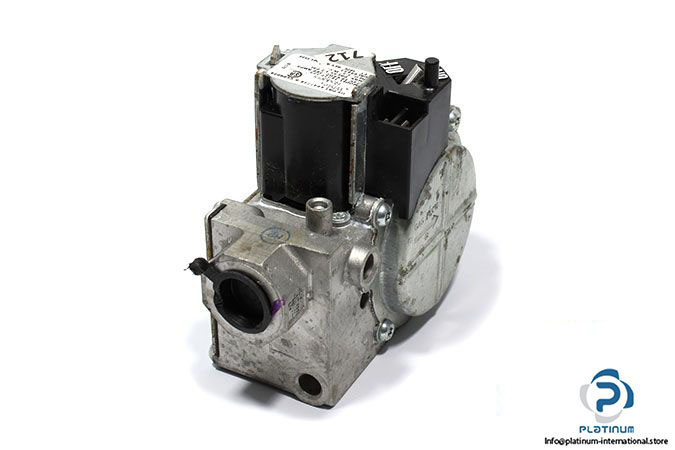

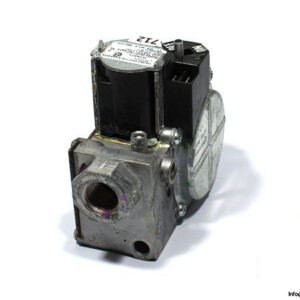

Manufacturer: WHITE-RODGERS

Type: ELECTRONIC IGNITION GAS VALVE

Model: 36J22-223

Part No.: E1 1026

The 36J is a Combination Gas Control Valve Designed for use with

Non-Piloted Intermittent Ignition Systems. The Control is Designed to

meet Today’s Maximum Capacity, Smaller Size and High Efficiency

Gas Systems.

Uses: For Furnaces, Boilers and Heaters

Pressure Rating max. 1/2 PSI

Voltage 24V AC/ 50Hz

Power consumption:

Current: 0.28 A

Regulator pressure: 3.3 W.C

Process connection: Female 1/2″

Working temp.: -40° to 70°C

Class:

Type of Gases: Nat. Gas, LP Gas
