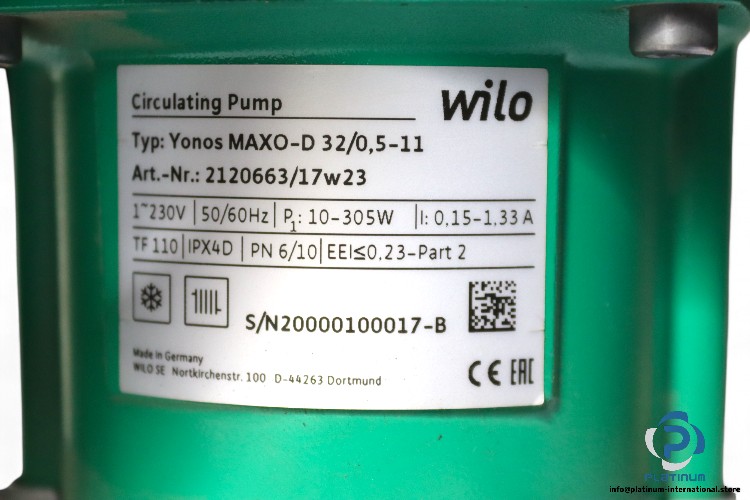

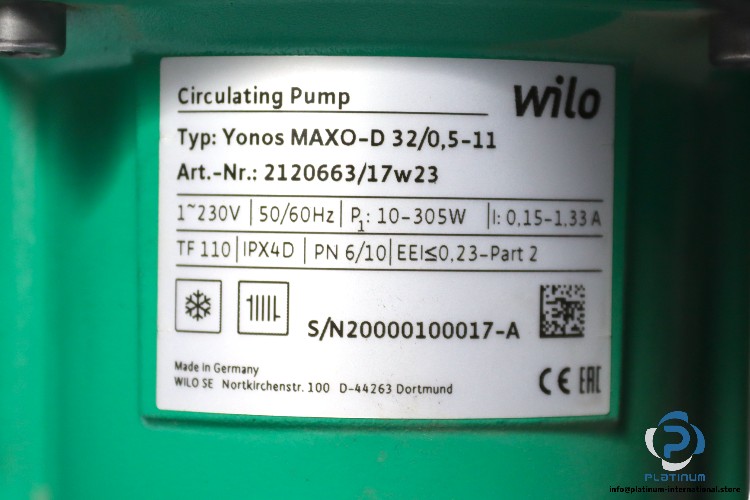

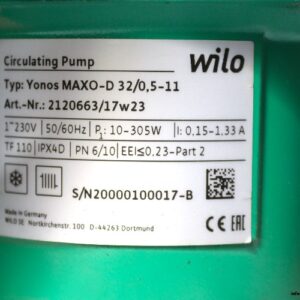

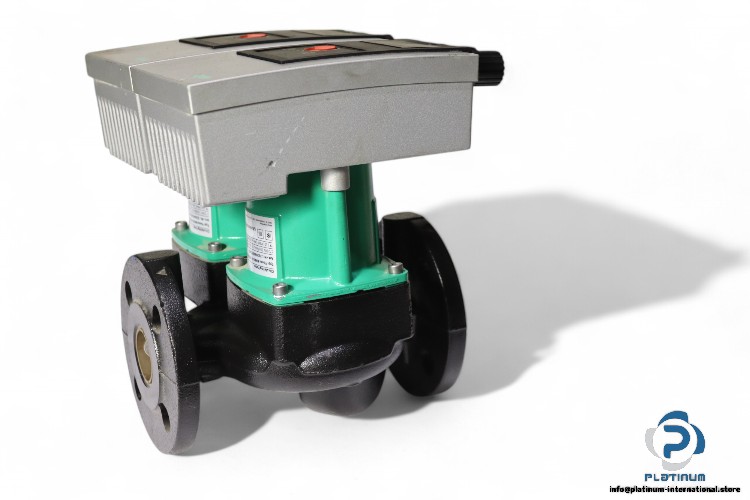

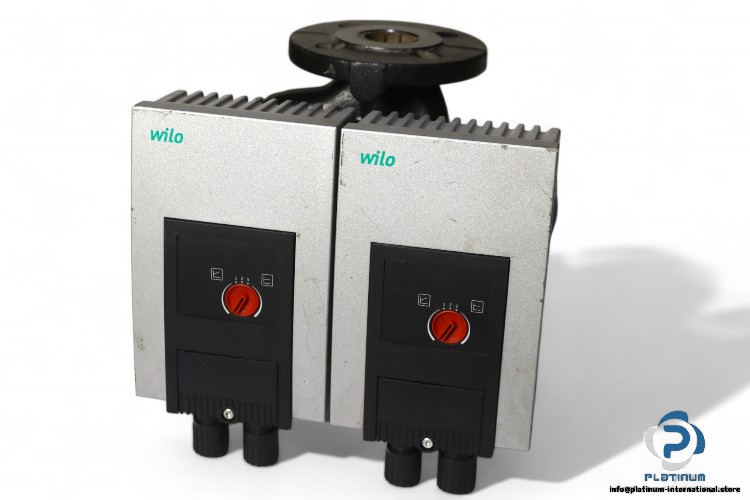

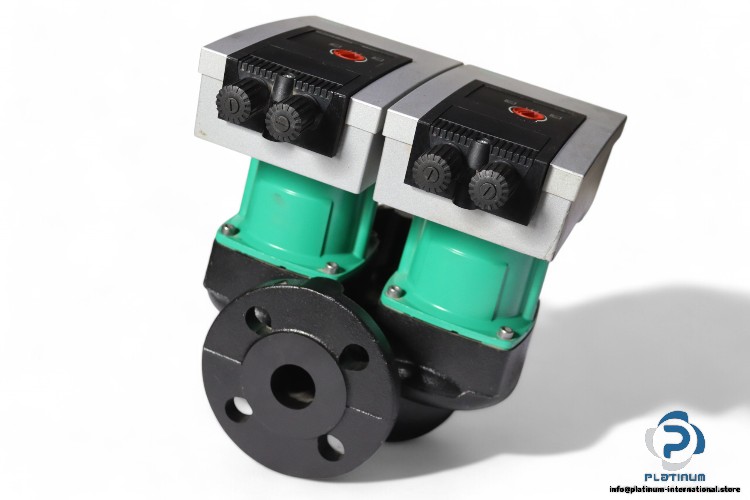

WILO YONOS MAXO-D 32/0,5-11 CIRCULATING PUMP

The WILO YONOS MAXO-D 32/0,5-11 Circulating Pump is designed for high efficiency in heating and cooling systems, offering precise and reliable water circulation with excellent performance under various conditions. With a maximum operating pressure of 10 bar and a maximum flow of 13.6 m³/h, it ensures optimal functionality for both residential and commercial applications.

Manufacturer: WILO

Type: CIRCULATING PUMP

Model: YONOS MAXO-D 32/0,5-11

Art No.: 2120663/17w23

Technical Specifications

• Mains Connection: 230 V
• Rated Frequency: 50/60 Hz
• Max Operating Pressure: 10 bar
• Max Flow: 13.6 m³/h
• Ambient Temperature: -20 to 40 °C
• Port-to-Port Length: 220 mm
• Rated Speed: 1000 to 4800 1/min
• Nominal Diameter of Flanged Port: DN 32
• Pump Housing Material: Grey cast iron
• Rated Power Consumption: 10 to 305 W
• Minimum Suction Head at 50°C: 3 m
• Rated Current: 0.15 to 1.33 A
• Standard Voltage: Single-phase
