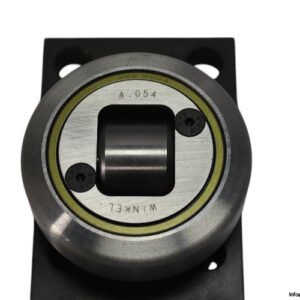

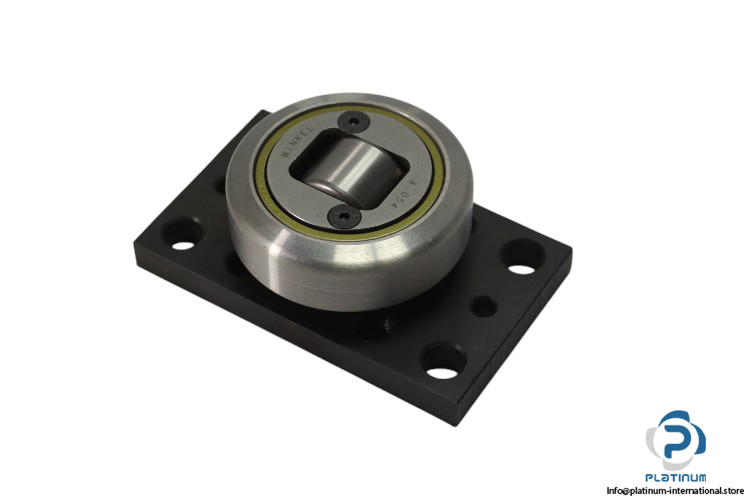

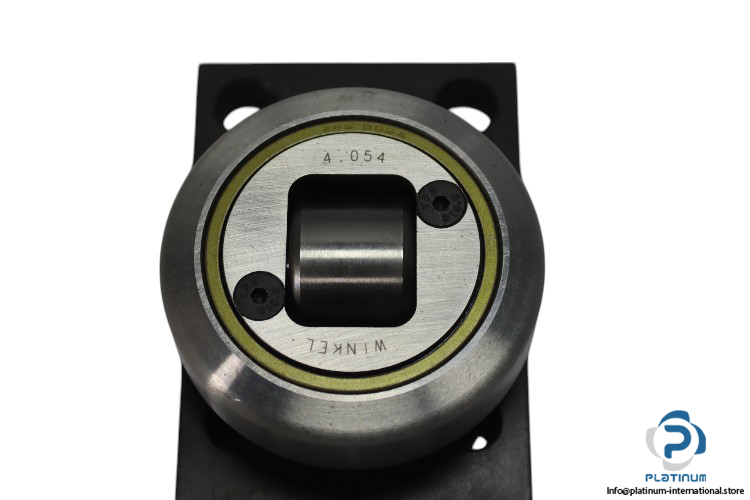

Winkel 4.054 Fixed Combined Bearing
The Winkel 4.054 Fixed Combined Bearing is designed for linear motion applications requiring high load capacity and compact design. Manufactured with precision, it supports both radial and axial loads, making it ideal for heavy-duty guiding systems in industrial machinery.
Manufacturer: Winkel
Type: Fixed Combined Bearing
Model: 4.054

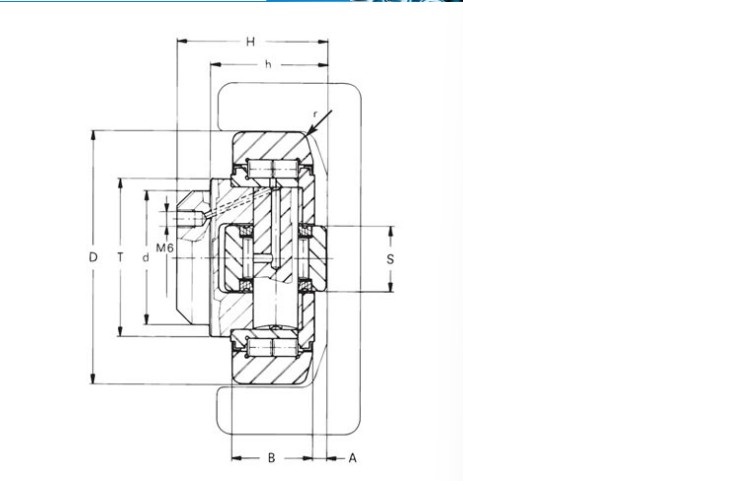

Technical Information:
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 62.5 mm
- Height (H): 37.5 mm
- Width (B): 20 mm
- Total Thickness (T): 42 mm
- Dynamic Load Rating (Cr): 31 kN
- Static Load Rating (C0r): 35.5 kN
- Axial Dynamic Load (CA): 11 kN
- Axial Static Load (C0A): 11 kN
