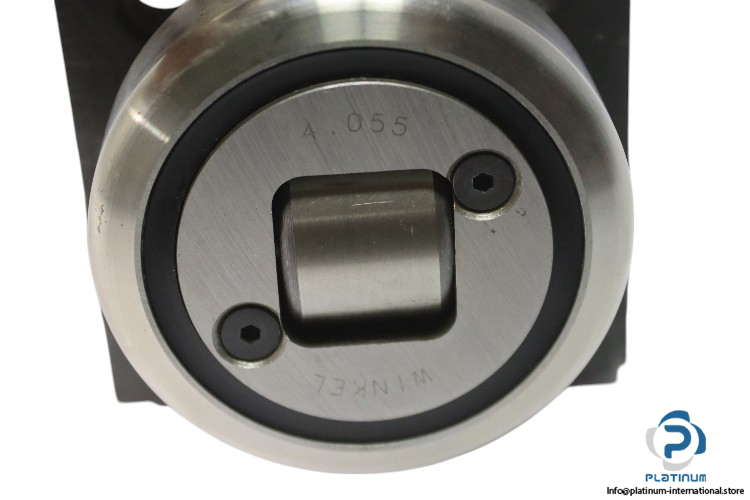

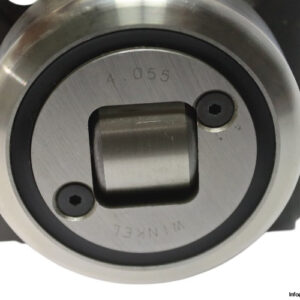

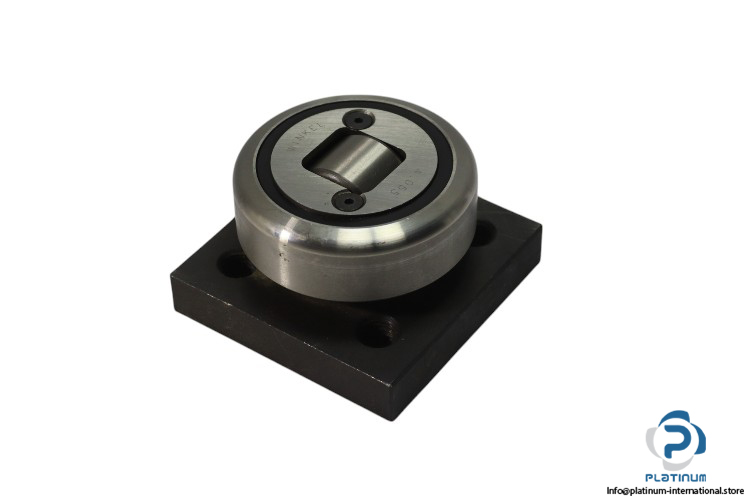

Winkel 4.055 Fixed Combined Bearing

The Winkel 4.055 Fixed Combined Bearing is a precision-engineered component designed for guiding and supporting heavy linear loads in vertical or horizontal applications. It combines radial and axial load handling capabilities, making it ideal for material handling systems, automated machinery, and structural guidance systems.

Manufacturer: Winkel

Type: Fixed Combined Bearing

Model: 4.055

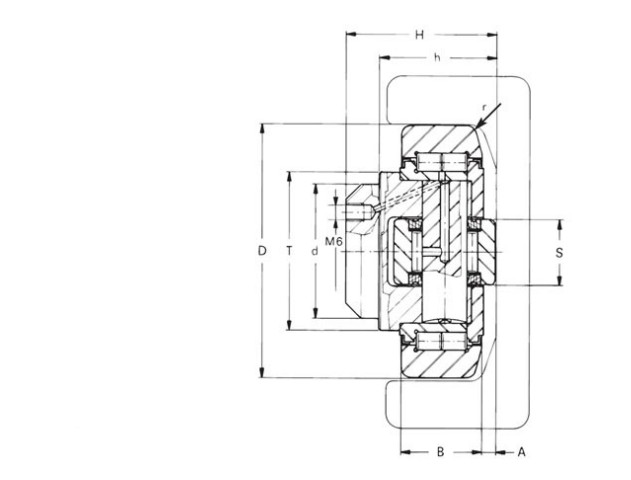

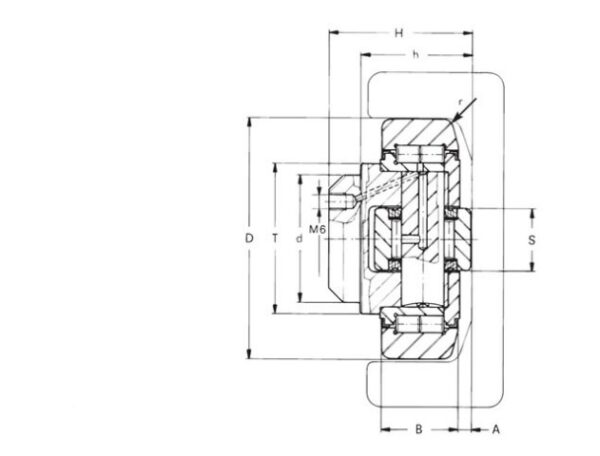

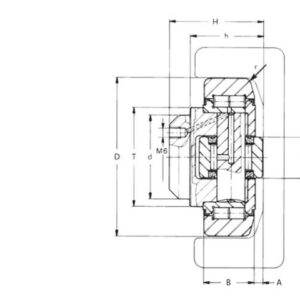

Technical Information:

• Bore Diameter (d): 35 mm
• Outer Diameter (D): 70.1 mm
• Height (H): 44 mm
• Width (B): 23 mm
• Total Height (T): 48 mm
• Dynamic Load Rating (Cr): 45.5 kN
• Static Load Rating (C0r): 51 kN
• Axial Dynamic Load Rating (CA): 13 kN
• Axial Static Load Rating (C0A): 14 kN
