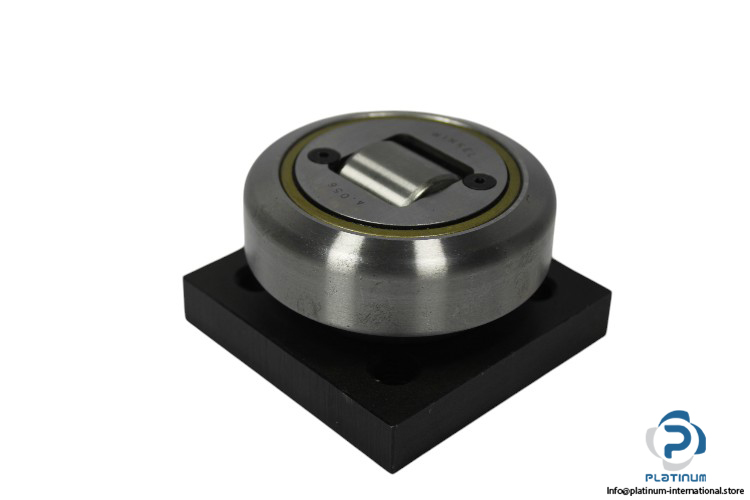

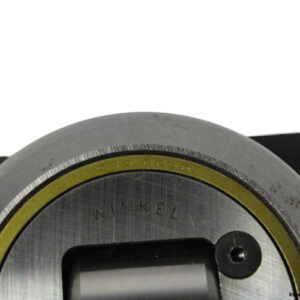

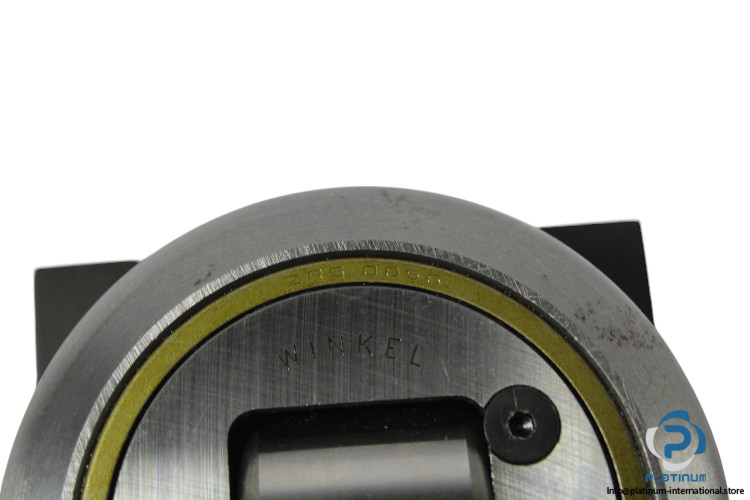

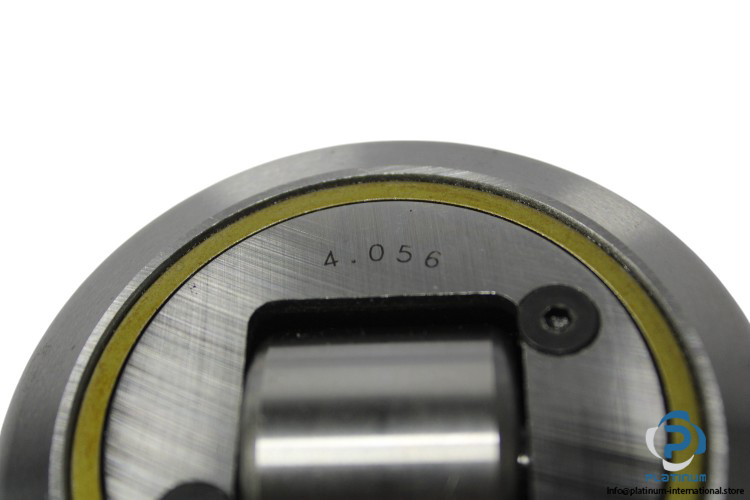

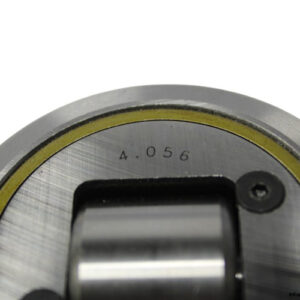

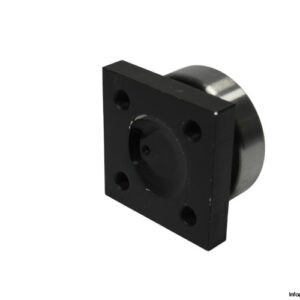

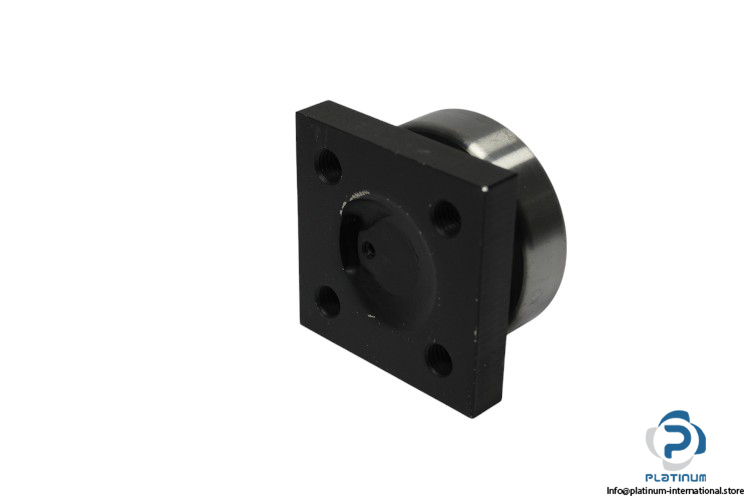

Winkel Fixed Combined Bearing 4.056

The Winkel Fixed Combined Bearing 4.056 is designed to provide high radial and axial load ratings, ensuring reliable performance in various industrial applications. This bearing has been replaced by the ZRS 0056 model.

Manufacturer: Winkel

Model: 4.056

Replaced By: ZRS 0056

Type: Fixed Combined Bearing

Design:

The bearing is designed in the ZRS execution, offering efficient load handling in both radial and axial directions.

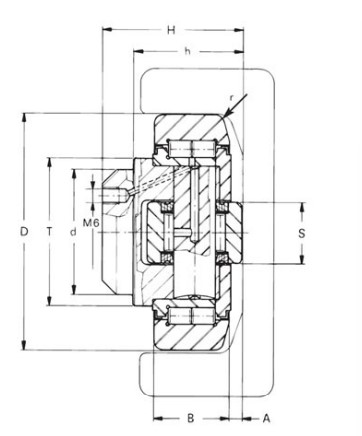

Technical Information:

• Bore Diameter (d): 40 mm
• Outer Diameter (D): 77.7 mm
• Width (H): 48 mm
• B: 23 mm
• T: 54 mm

Basic Load Ratings:

Radial Load Ratings:

• Dynamic Cr: 48 kN
• Static C0r: 56.8 kN

Axial Load Ratings:

• Dynamic Cr: 18 kN
• Static C0r: 18 kN

Other Specifications:

• Limit Speed: 800 rpm
