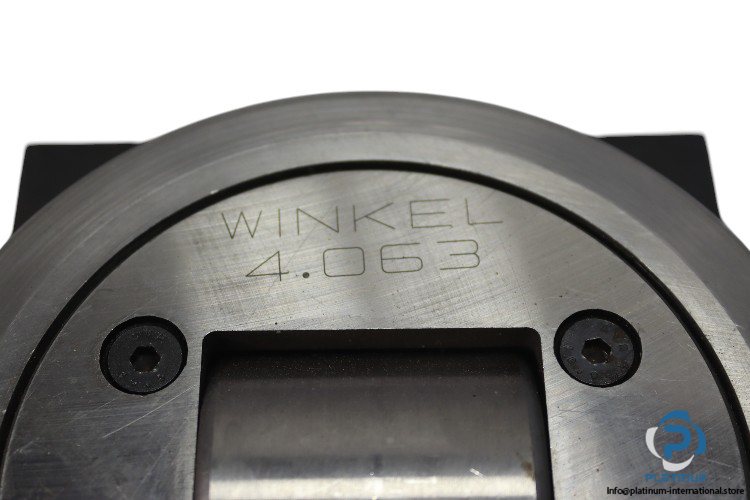

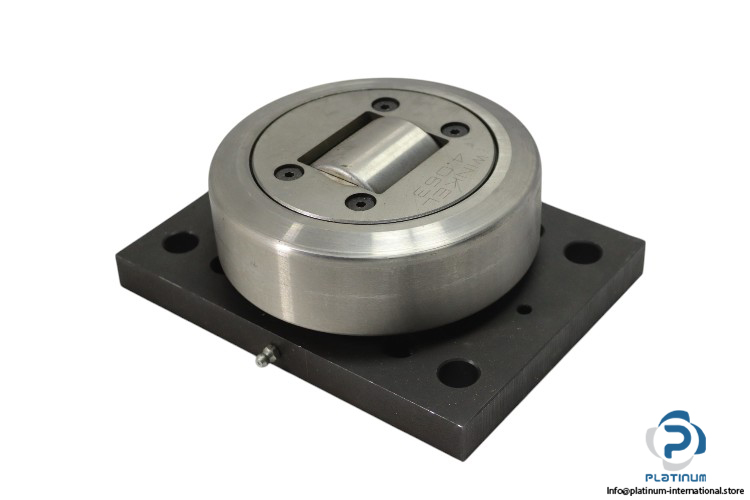

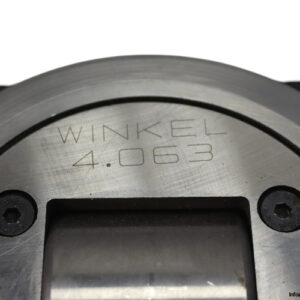

Winkel 4.063 Fixed Combined Bearing

The Winkel 4.063 Fixed Combined Bearing is engineered for high-load capacity in both axial and radial directions, making it ideal for heavy-duty industrial systems. Its robust construction and optimized dimensions ensure long-lasting performance and reliable motion guidance.

Manufacturer: Winkel

Type: Fixed Combined Bearing

Model: 4.063

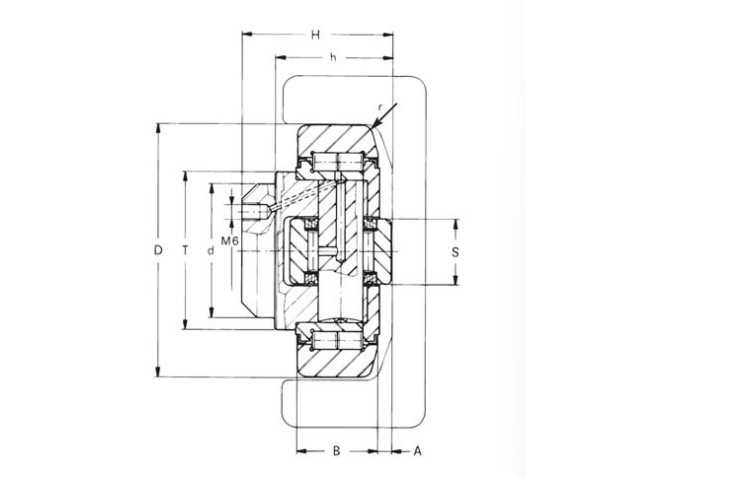

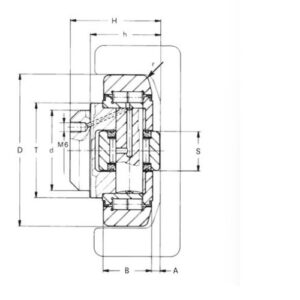

Technical Information:

• Bore Diameter (d): 60 mm
• Outer Diameter (D): 149 mm
• H: 77.5 mm
• B: 45 mm
• T: 103 mm
• Basic Load Rating – Dynamic (Cr): 151 kN
• Basic Load Rating – Static (C0r): 192 kN
• Axial Load Rating – Dynamic (CA): 68 kN
• Axial Load Rating – Static (C0A): 71 kN
