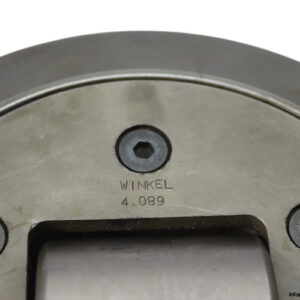

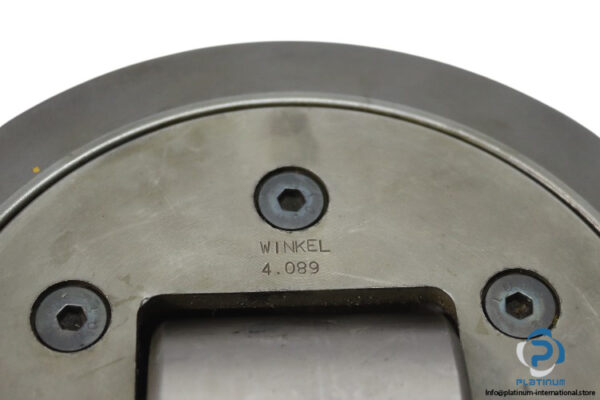

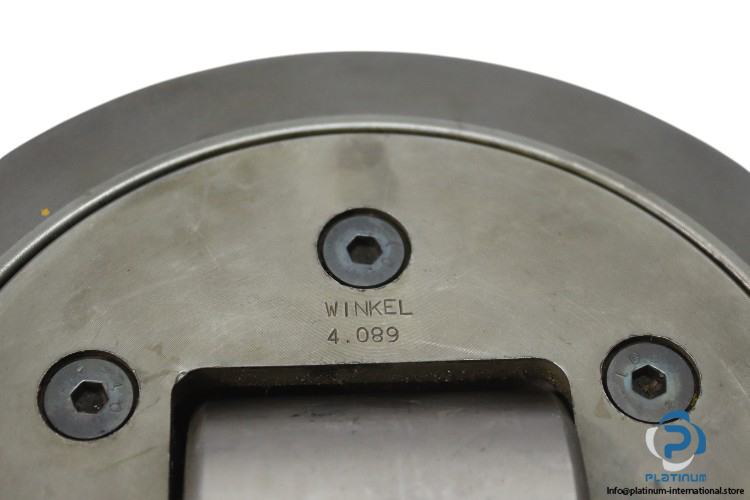

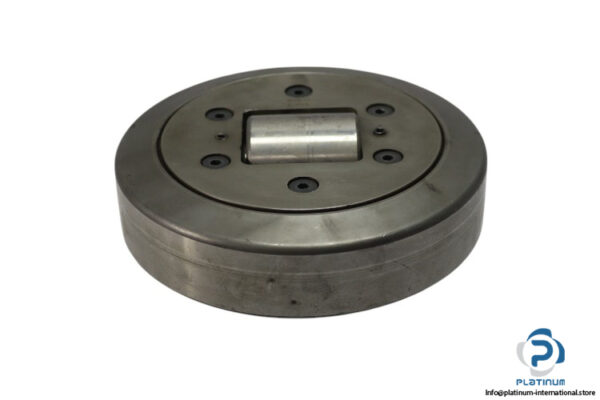

Winkel 4.089 Fixed Combined Bearing

The Winkel 4.089 Fixed Combined Bearing is a robust and reliable bearing solution designed for heavy-duty linear and axial load applications. Engineered with high load ratings and precise construction, it is suitable for vertical and horizontal motion systems in industrial environments.

Manufacturer: Winkel

Type: Fixed Combined Bearing

Model: 4.089

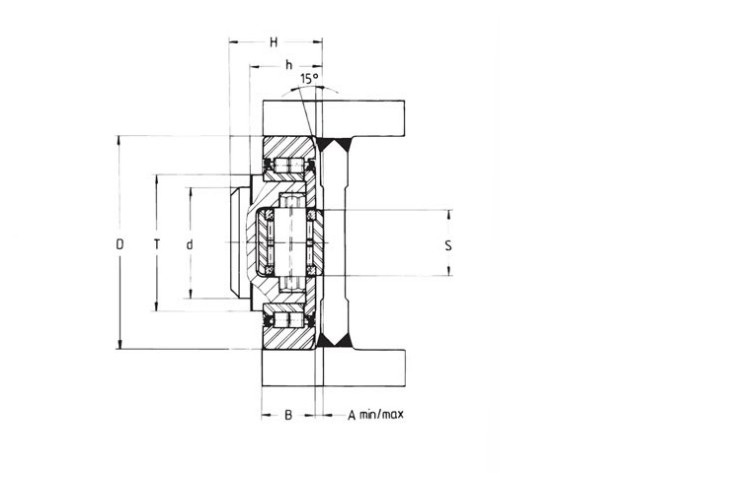

Technical Information:

• Bore Diameter (d): 80 mm
• Outer Diameter (D): 165 mm
• Height (H): 69.0 “ 72.0 mm
• Width (B): 40 mm
• Total Height (T): 113 mm
• Dynamic Load Rating (Cr): 213 kN
• Static Load Rating (C0r): 388 kN
• Axial Dynamic Load Rating (CA): 85 kN
• Axial Static Load Rating (C0A): 133 kN
