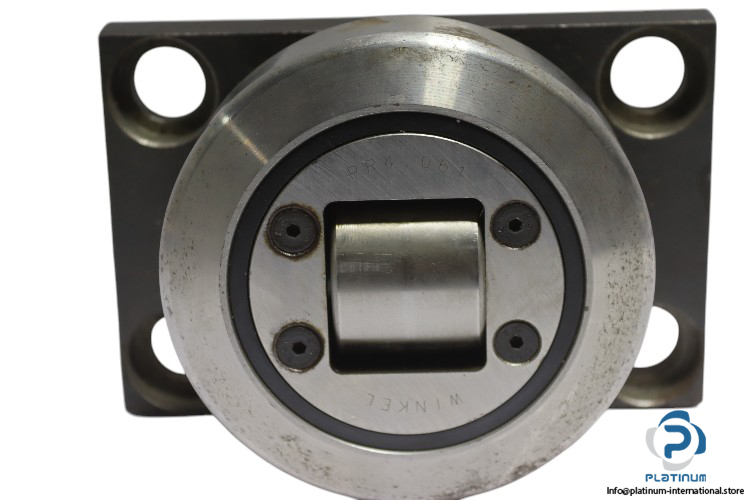

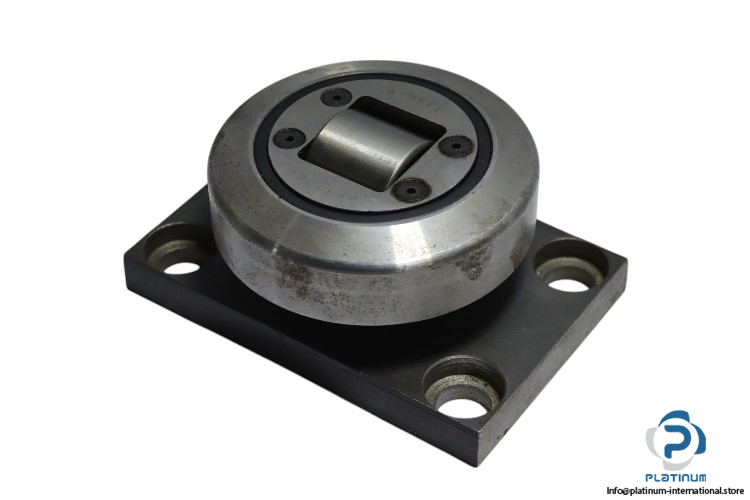

Winkel PR4.061 Fixed Combined Bearing
The Winkel PR4.061 Fixed Combined Bearing is engineered for high-load industrial applications requiring simultaneous axial and radial support. Designed with precision and durability, it offers exceptional load capacity and smooth motion for guided linear movement systems.
Manufacturer: Winkel
Type: Fixed Combined Bearing
Model: PR4.061

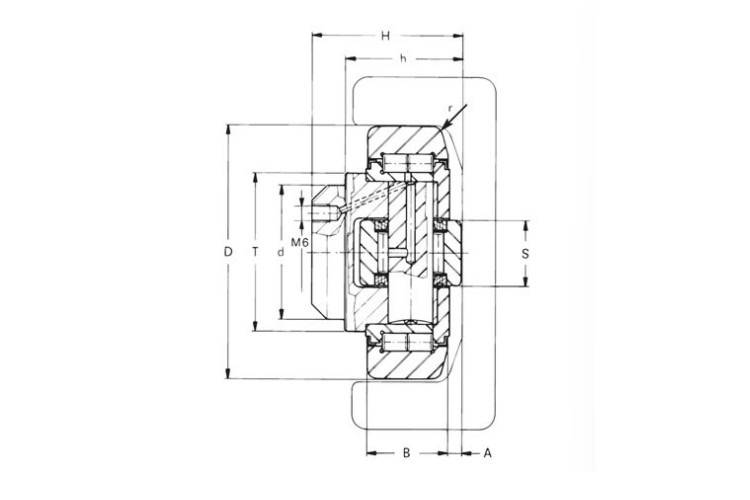

Technical Information:
- Bore Diameter (d): 60 mm
- Outer Diameter (D): 111.8 mm
- Width (B): 31 mm
- T: 71 mm
- H: 69 mm
- h: 55 mm
- Dynamic Load: 81,000 N
- Static Load: 95,000 N
- Dynamic Axial Load: 31,000 N
- Static Axial Load: 36,000 N
