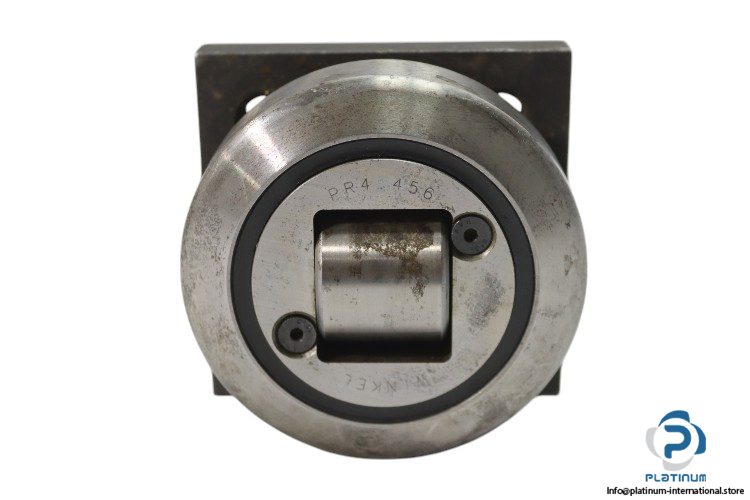

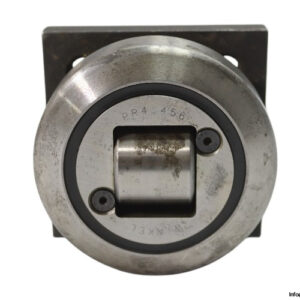

Winkel PR4.456 Fixed Combined Bearing (Eccentric Adjustable)

The Winkel PR4.456 is a robust fixed combined bearing with eccentric adjustability, engineered for precise load handling and smooth linear motion in heavy-duty industrial applications. Designed by Winkel, this bearing combines high radial and axial load capacities with compact dimensions for reliable performance in demanding environments.

Manufacturer: Winkel

Type: Fixed Combined Bearing (Eccentric Adjustable)

Model: PR4.456

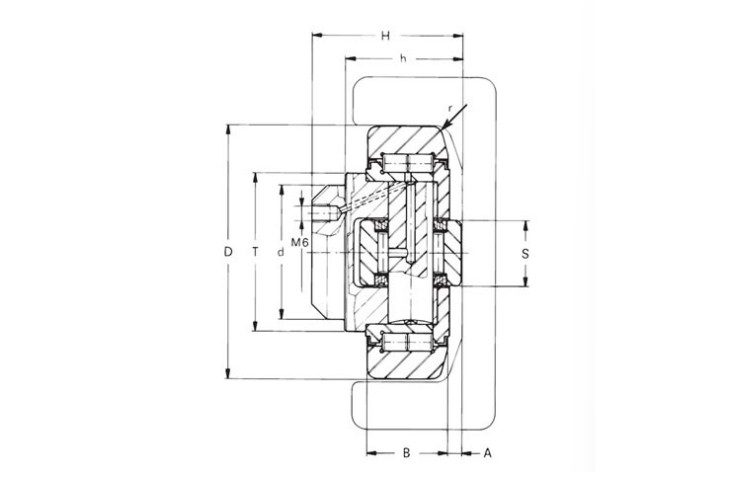

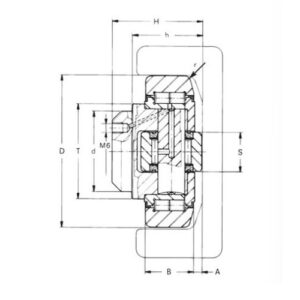

Technical Information:

• Bore Diameter (d): 40 mm
• Outer Diameter (D): 81.8 mm
• Width (B): 23 mm
• T: 54 mm
• H: 48.0 “ 49.5 mm
• h: 37.0 “ 38.5 mm
• Dynamic Load Capacity: 48,000 N
• Static Load Capacity: 56,800 N
• Dynamic Axial Load: 18,000 N
• Static Axial Load: 18,000 N
