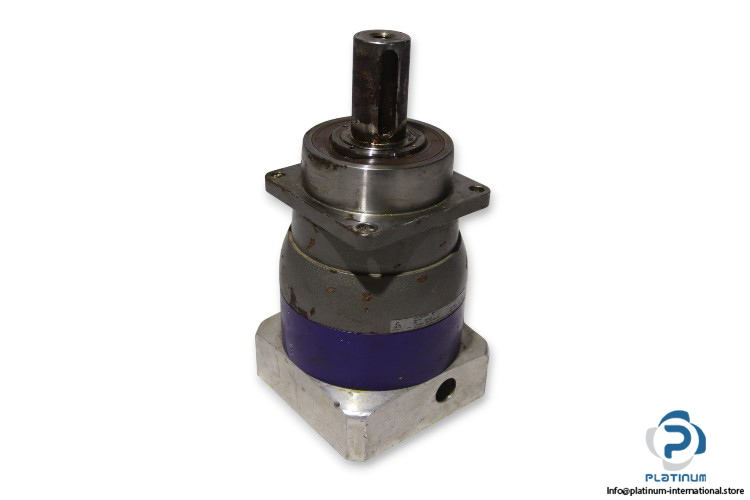

Wittenstein NPS 035S-MA2-9-1G1-1S Planetary Gearbox
The Wittenstein NPS 035S-MA2-9-1G1-1S Planetary Gearbox is a high-performance precision gear solution designed for demanding motion control and industrial automation applications. Its compact 035 mm frame size and 9:1 ratio provide smooth, efficient power transmission with exceptional torsional rigidity. Built with advanced engineering and lifetime lubrication, this gearbox ensures maximum reliability and long service life even in continuous-duty operations.

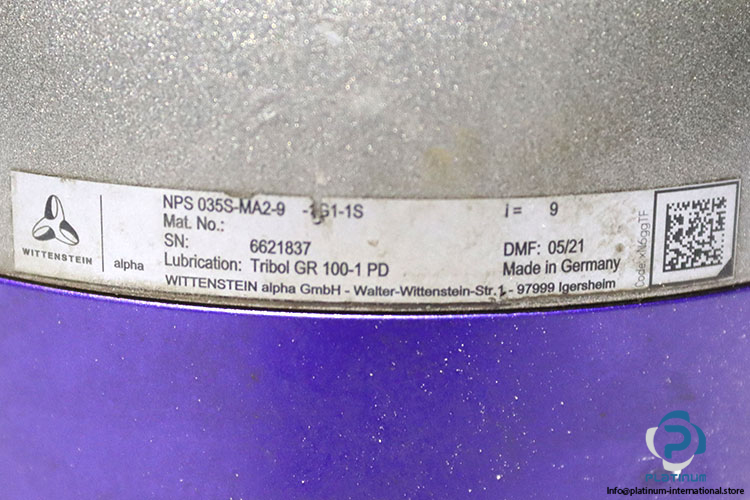

Manufacturer: Wittenstein
Type: Planetary Gearbox
Model: NPS 035S-MA2-9-1G1-1S
Serial No.: 6621837
Series: NPS

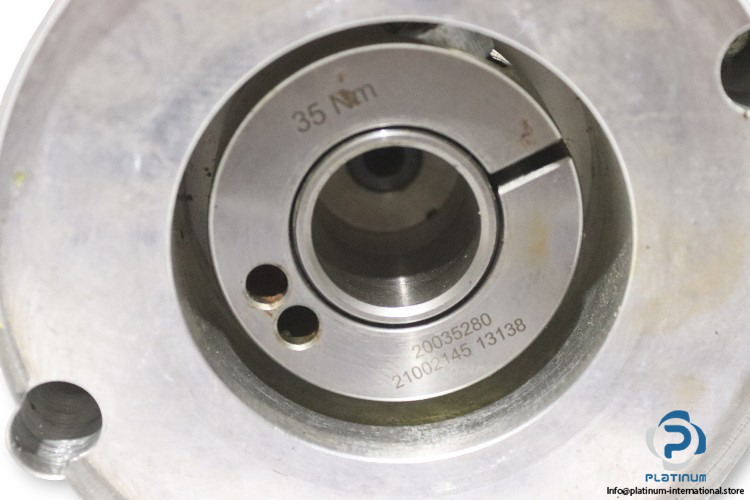

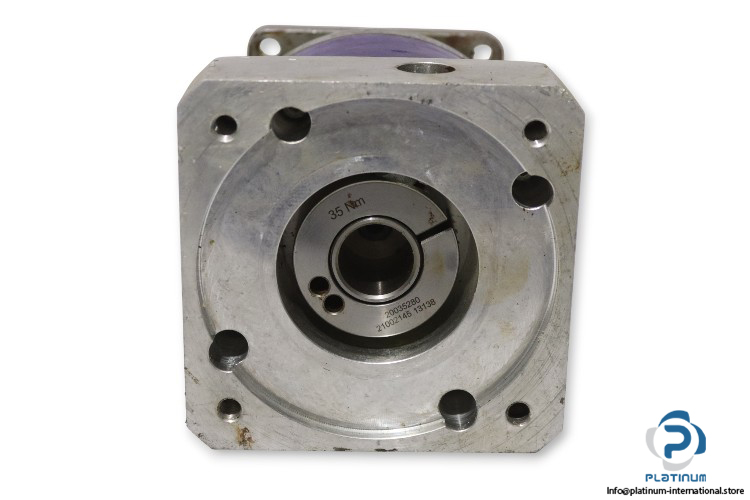

Flange code: 20035280 / 21002145 13138

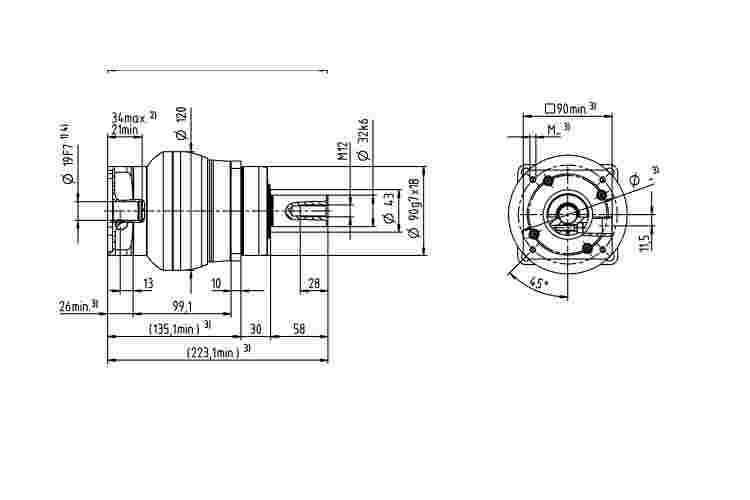

Technical Information
- Frame Size: 035 mm
- Ratio [i]: 9:1
- No. of Stage: 2
- Shaft [mm]: 32
- Hollow Shaft [mm]: 24
- Flange Diameter [mm]: 120
- Lubrication: Tribol GR 100-1 PD (synthetic grease)
- Max. torque: 480 Nm
- Emergency stop torque: 500 Nm
- Permitted average input speed: 2700 rpm
- Max. input speed: 7000 rpm
- Max. axial force: 5650 N
- Max. lateral force: 6300 N
- Flange Nominal Torque: 35 Nm
- Ambient temperature: -15 to +40°C
- Lubrication: Lubricated for life
- Direction of rotation: In and output same direction
- Protection class: IP 65
Engineered for precision, efficiency, and durability, this Wittenstein planetary gearbox is ideal for servo systems, robotics, packaging machinery, and advanced automation drives. Its IP65-rated enclosure ensures full protection against dust and water ingress, making it suitable for harsh industrial environments. The lifetime synthetic grease lubrication and robust torque capacity deliver maintenance-free operation with consistent performance.
