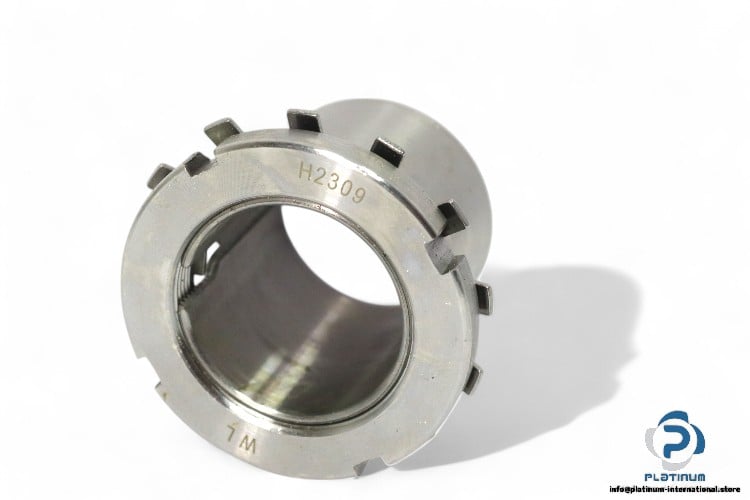

WL H2309 Adapter Sleeve
The WL H2309 Adapter Sleeve is designed for securely mounting bearings with a tapered bore onto a cylindrical shaft. With a durable design and precise dimensions, this adapter sleeve ensures reliable performance in various industrial applications.
Manufacturer: WL
Type: ADAPTER SLEEVE
Model: H2309
Technical Information:
- Bore Diameter: 40 mm
- Outside Diameter (Small Taper): 45 mm
- Outer Diameter (Lock Nut): 65 mm
- Sleeve Length: 50 mm
- Width of Lock Nut Including Lock Washer: 11 mm
This WL adapter sleeve is designed for easy assembly and secure fit, providing effective support for bearings on shafts. Its compact and sturdy design ensures minimal wear and maximum load handling capacity, making it suitable for high-demand applications.
