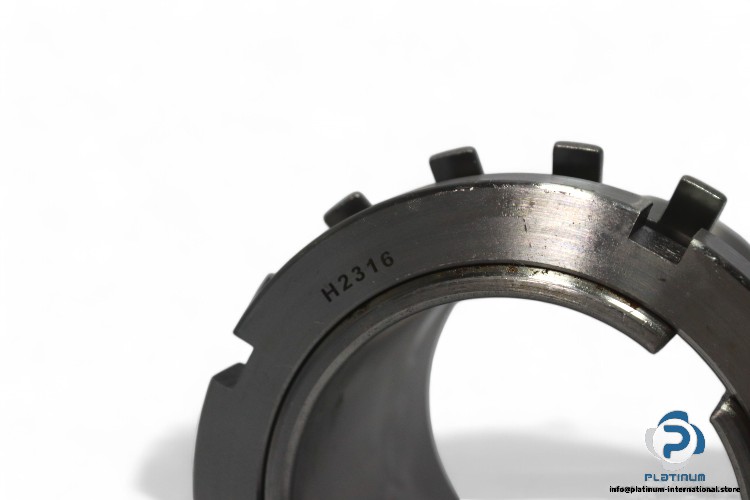

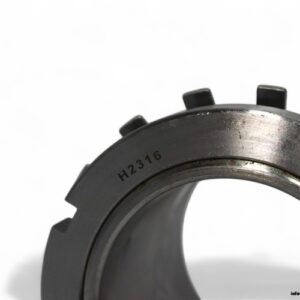

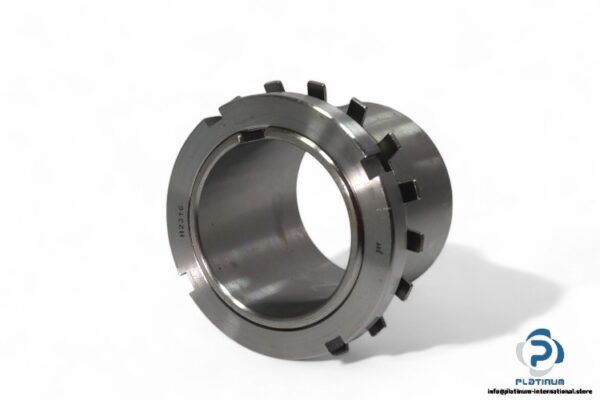

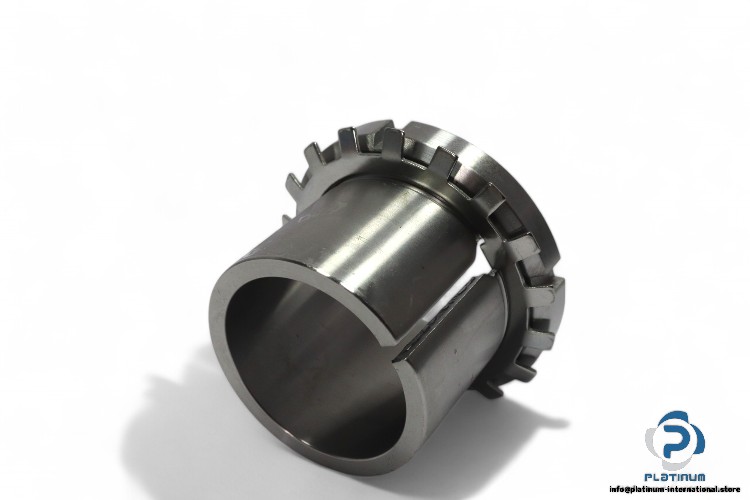

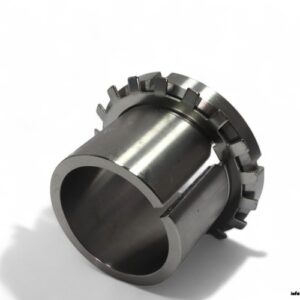

WL H2316 Adapter Sleeve
The WL H2316 Adapter Sleeve is designed to provide secure and stable mounting of bearings onto shafts with different sizes. This sleeve is ideal for applications requiring ease of assembly and reliable locking for high-load systems.
Manufacturer: WL
Type: ADAPTER SLEEVE
Model: H2316

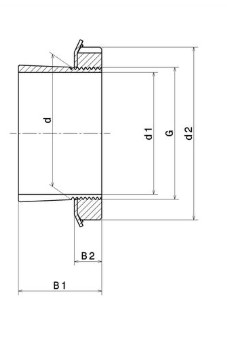

Technical Information:
- Bore Diameter: 70 mm
- Outside Diameter (Small Taper): 80 mm
- Outer Diameter (Lock Nut): 105 mm
- Sleeve Length: 78 mm
- Width (Lock Nut Including Lock Washer): 17 mm
This WL adapter sleeve offers a perfect fit for mounting bearings and features a tapered design that ensures a tight and secure assembly. Its sturdy construction and reliable locking nut provide long-lasting performance in high-load applications.
