Manufacturer: KLEMMHALTER WODEX

Type: External Turning Toolholder

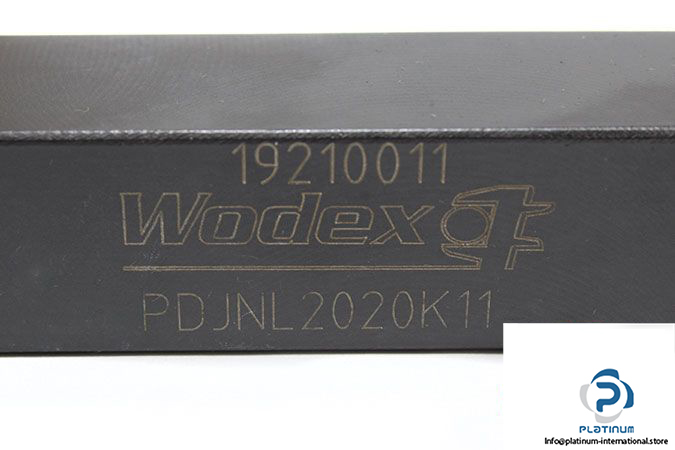

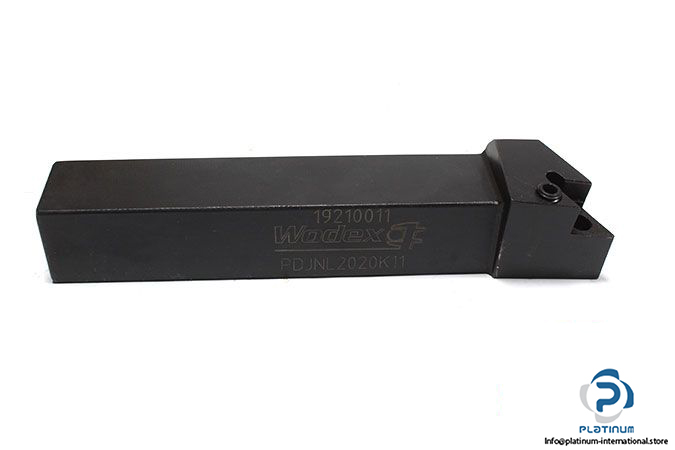

Model: PDJNL2020K11



Body material: Steel

Insert Model: DNMG 1104

Tool cutting edge angle: 93°

Clamping type code: P

Adaptive interface machine direction: Rectangular shank -metric, 20 x 20

Tool lead angle: -3 deg

Maximum ramping angle: 27 deg

Damping property: false

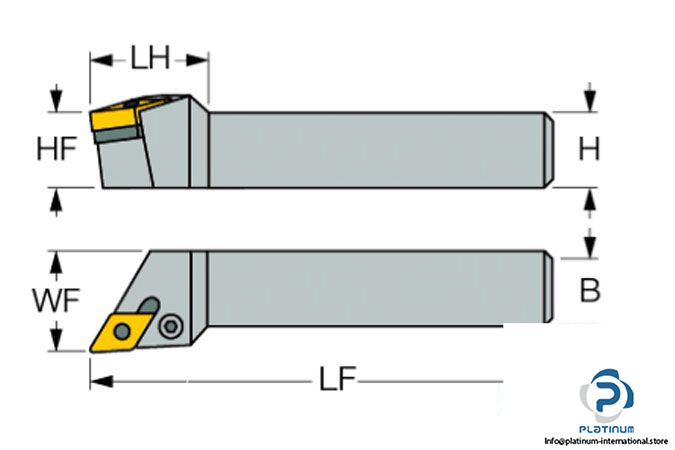

Dimensions ( LF x B x H x LH x WF ): 125 x 20 x 20 x 30 x 25 mm

Torque: 1.475 ft lbs

Weight: 0.36 kg
