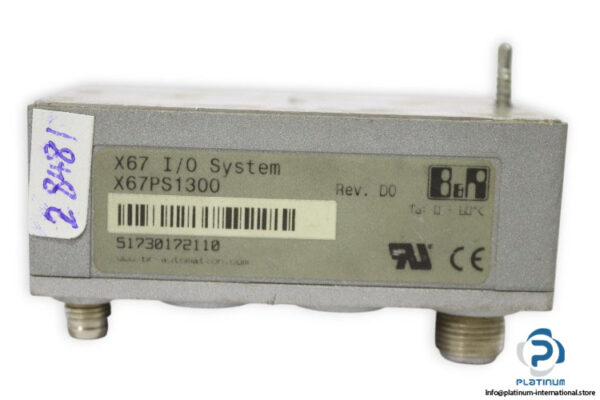

X67PS1300 COMPACT POWER SUPPLY MODULE
The X67PS1300 is a compact power supply module from the X67 series, designed for reliable performance in automation and control applications. It features electrically isolated X2X Link power supply with efficient power management in a robust housing.
Type: Compact Power Supply Module
Series: X67
Model: X67PS1300
MRN: 51730172110
Technical Information
- System Power Supply: Electrically isolated X2X Link power supply

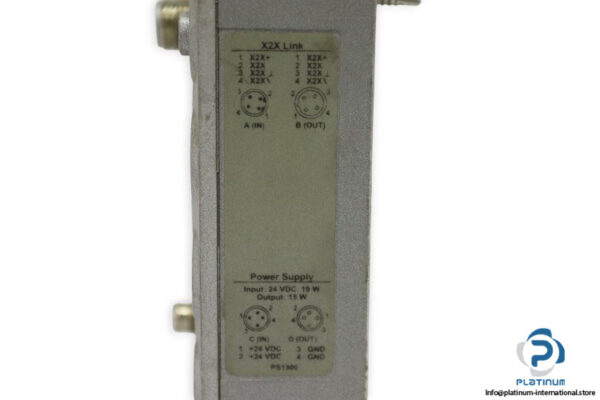

- Connection Type: X2X Link power supply output M12, B-keyed / X2X Link power supply input M8, 4-pin
- Power Consumption (Internal): 3 W
- Input Voltage: 24 VDC
- Voltage Range: 18 to 30 VDC
- Nominal Voltage: 20 VDC
- Nominal Current: 0.75 A
- Nominal Output Power: 15 W
- Operating Temperature: -25 to 60 °C
- Dimensions: Width 53 mm, Height 85 mm, Depth 42 mm
