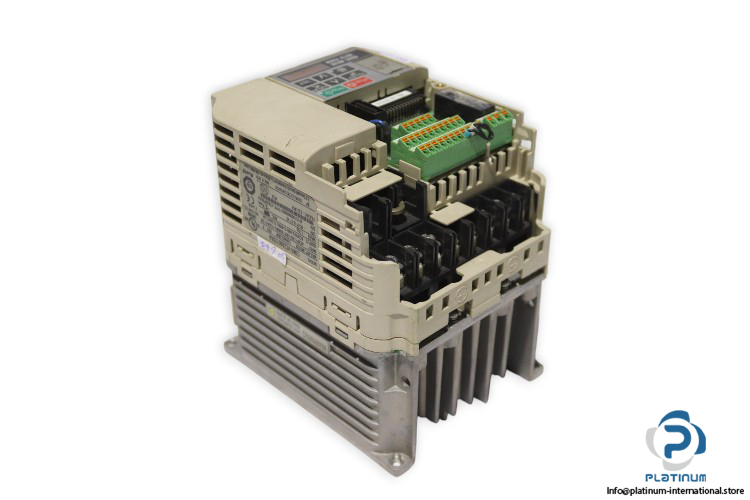

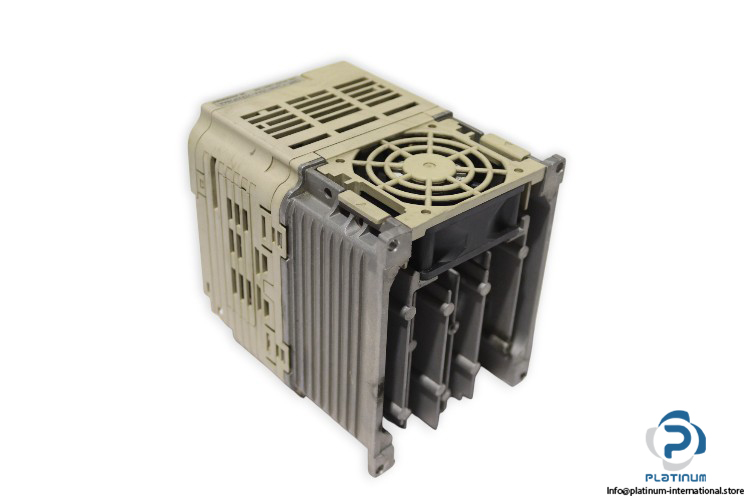

Yaskawa CIMR-VC2A0012BAA Frequency Inverter
The Yaskawa CIMR-VC2A0012BAA is a high-performance frequency inverter from the V1000 series. Designed for precision motor control, it supports both permanent magnet and induction motors, ensuring efficient and reliable operation in demanding industrial environments.

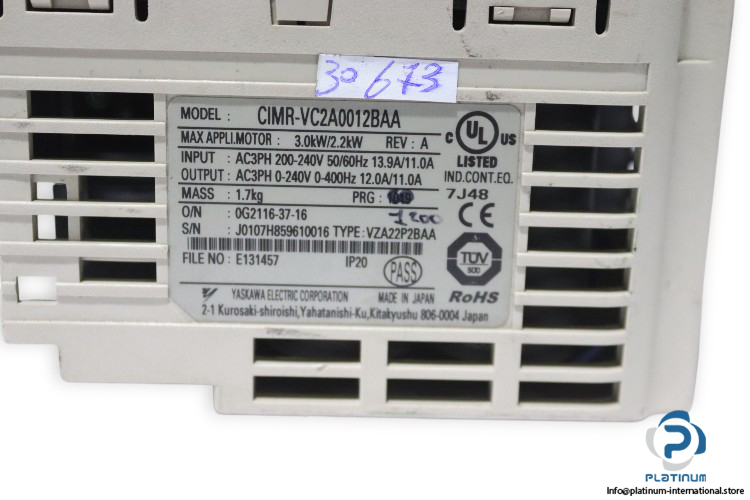

Manufacturer: Yaskawa
Type: Frequency Inverter

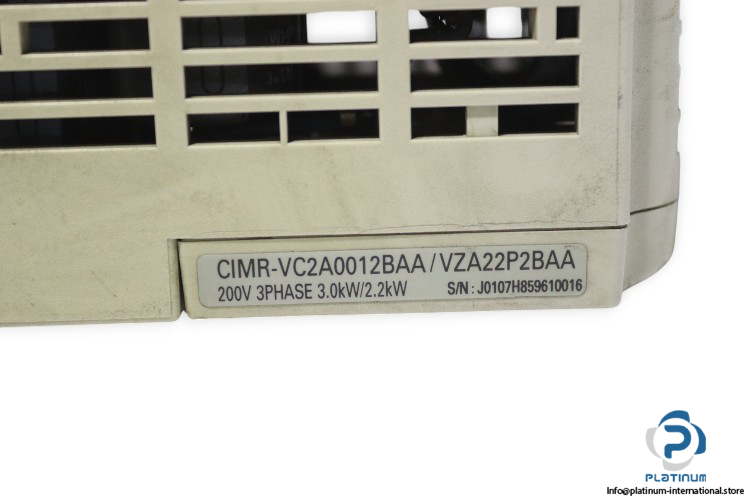

Model: CIMR-VC2A0012BAA
MRN: VZA22P2BAA
S/N: J0107H859610016

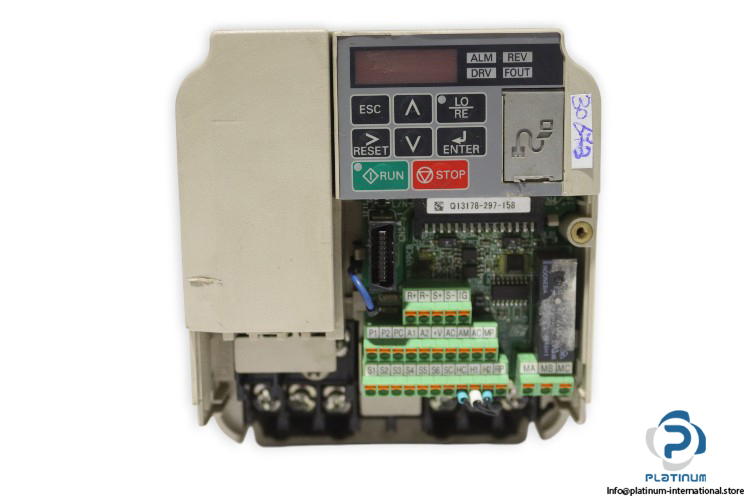

REF NO: Q13178-297-158 / E131457
Series: V1000
REV Field Vector: A
Technical Information
- Input Voltage: 200-240 V
- Input Current: 13.9 / 11 A
- Input Frequency: 50/60 Hz
- Output Voltage: 0 / 240 V AC / 3-phase
- Output Frequency: 0 / 400 Hz
- Output Current: 12 / 11 A
- Max. Motor Power (HD): 2.2 kW
- Max. Motor Power (ND): 3 kW
- Input Power Phases: 3-phase
- Motor Type: Permanent Magnet Motor, Induction Motor
- Protection Degree: IP20
- Ambient Temperature: -10 / +50°C
- Dimensions: 128 x 108 x 137.5 mm
