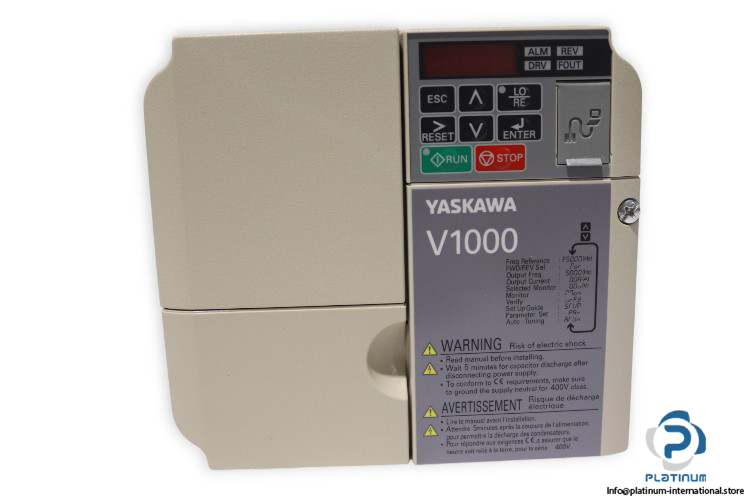

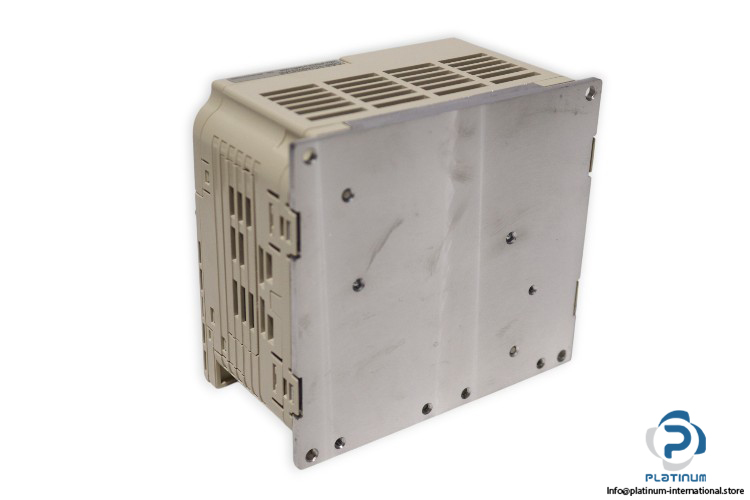

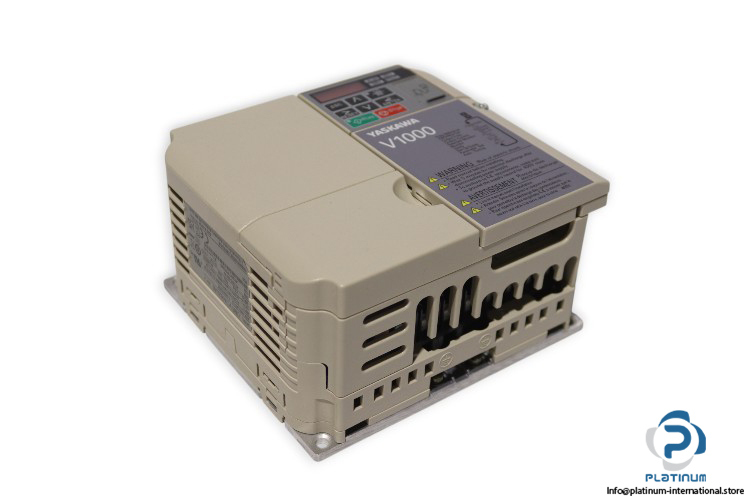

YASKAWA OMRON CIMR-VC2A0020JAB / VAJ900335 Frequency Inverter
The YASKAWA OMRON V1000 series frequency inverter is designed for efficient motor control and reliable performance in industrial automation. Compact and versatile, it provides stable operation with advanced protection features for demanding applications.
Manufacturer: YASKAWA OMRON
Type: Frequency Inverter

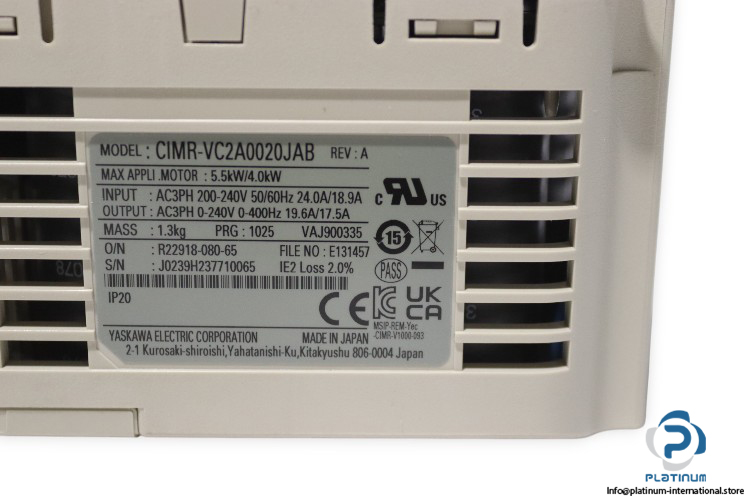

Model: CIMRVC2A0020JAB / VAJ900335
Part No.: R22918-080-65 / E131457
SW: 1025
Series: V1000
Technical Information
- Input Supply Voltage: 3-Phase 200 / 240 V AC
- Input Rated Current: 24.0 / 18.9 A
- Input Frequency: 50 / 60 Hz
- Output Rated Voltage: 3-Phase 0 / 240 V AC
- Output Rated Current: 19.6 / 17.5 A
- Output Frequency: 0 / 400 Hz
- Motor Power Max.: 5.5 / 4.0 kW
- Protection Class: IP20
- Operating Temperature: -10 / 50 °C
- Dimensions: 128 x 140 x 129 mm
