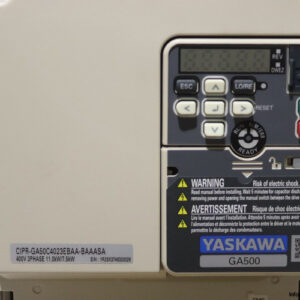

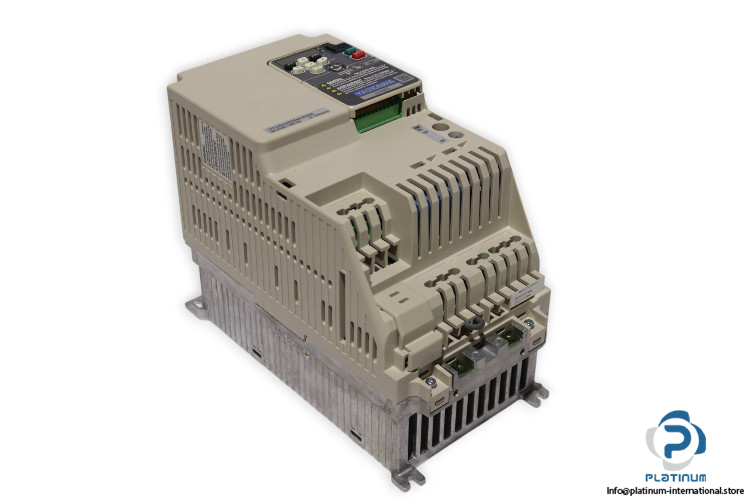

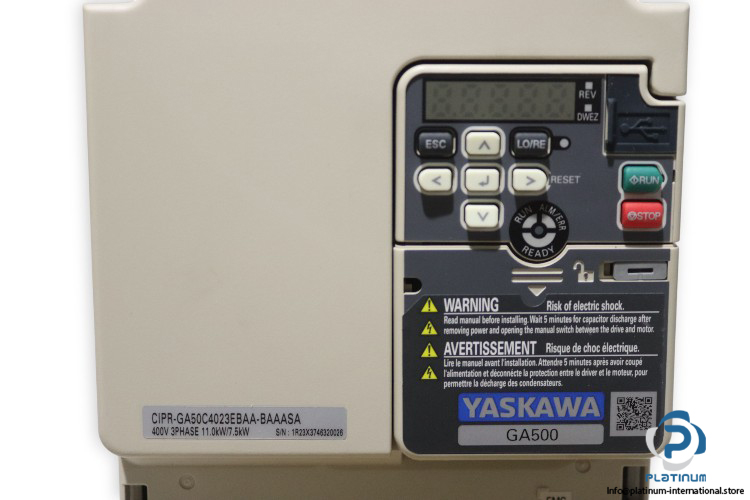

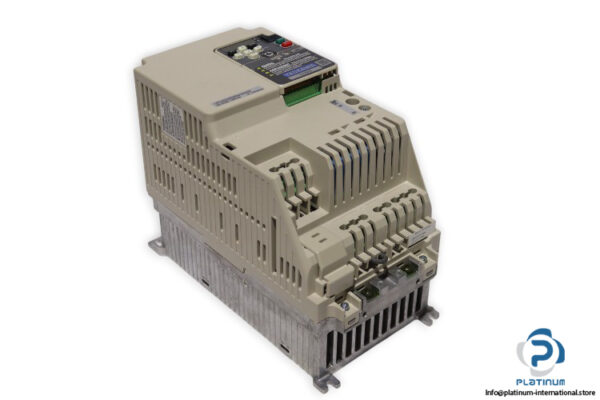

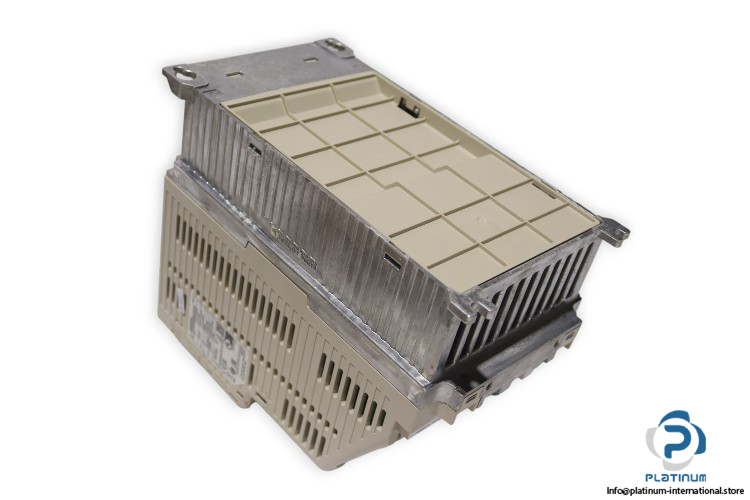

YASKAWA OMRON GA500 Frequency Inverter

The YASKAWA OMRON GA500 series frequency inverter is a compact and efficient drive solution designed to deliver flexible control, reliable performance, and high energy efficiency in industrial applications. Engineered to support a wide range of motor types, it ensures optimized operation and extended equipment life.

Manufacturer: YASKAWA OMRON
Type: Frequency Inverter
Model: CIPRGA50C4023EBAABAAASA / GA50C4023EBA

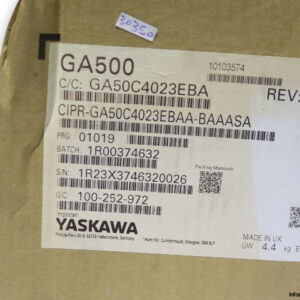

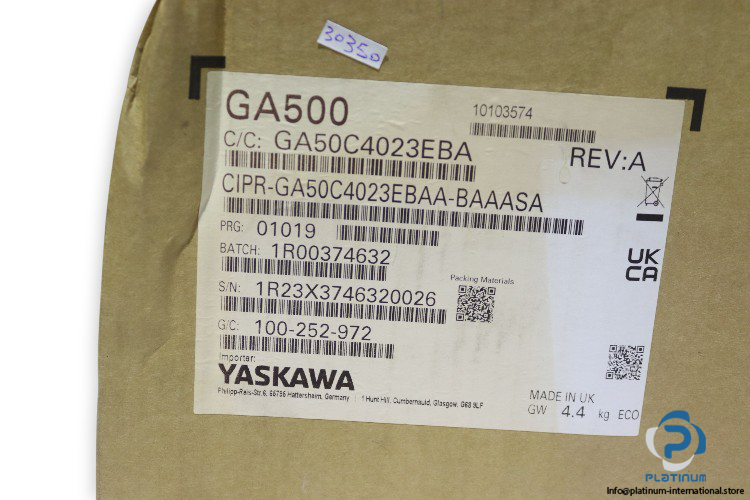

Part No.: M00374-632-26 / 100-252-972 / 1R00374632
SW: 01019
Series: GA500

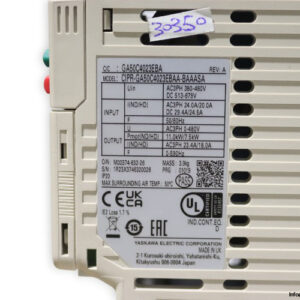

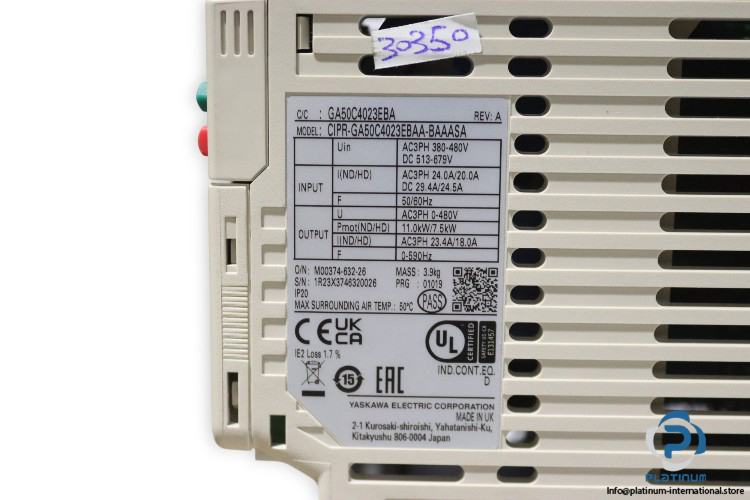

Technical Information

• Input Supply Voltage: 3-Phase 380 / 480 V AC / 513 / 679 V DC
• Input Rated Current: AC 24.0 / 20.0 A / DC 29.4 / 24.5 A
• Input Frequency: 50 / 60 Hz
• Output Rated Voltage: 3-Phase 0 / 480 V AC
• Output Rated Current: 23.4 / 18.0 A
• Output Frequency: 0 / 590 Hz
• Motor Power Max.: 11 / 7.5 kW
• Protection Class: IP20
• Operating Temperature: -10 / 50 °C
• Dimensions: 140 x 260 x 140 mm
