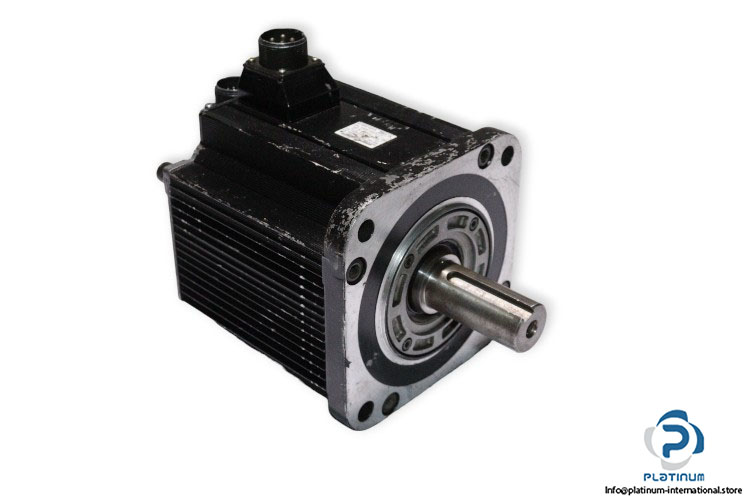

YASKAWA SGMGH 44DCA6F OY SERVO MOTOR
Yaskawa’s SGMGH 44DCA6F OY is a high-performance, high-speed feed-type servo motor engineered for precision motion control in demanding automation systems. Featuring robust torque, high responsiveness, and IP67 protection, it is ideal for continuous-duty industrial applications.
Manufacturer: Yaskawa
Type: Servo Motor

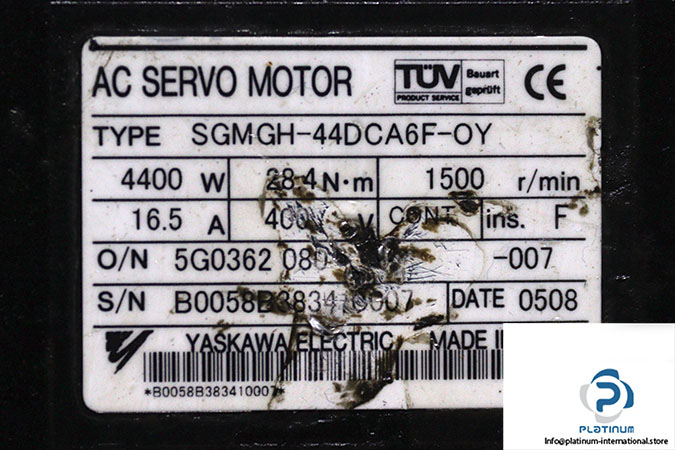

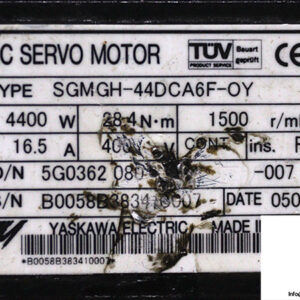

Model: SGMGH 44DCA6F OY
O/N: 5G0362-080
S. No: B0058B3834/0007
Ref No.: 007
Technical Information
- Servo Motor Type: High-speed feed type
- Mounting: Flange
- Power Supply Voltage: 400 V
- Servomotor Capacity: 4400 W
- Rated Torque: 28.4 Nm
- Instantaneous Peak Torque: 71.1 Nm
- Rated Current: 16.5 A
- Instantaneous Max. Current: 40.5 A
- Rated Speed: 1500 rpm
- Max. Speed: 3000 rpm
- Torque Constant: 1.82 rms
- Rated Power Rate: 120 kW/S
- Ambient Temperature: 0 to +40 °C
- Insulation Class: F
- Enclosure: Totally-enclosed, self-cooled, IP67 (excluding shaft opening)
- Time Rating: Continuous
- Applicable Encoder: Incremental encoder (17-bit)
- Holding Brake Moment of Inertia J: 8.50 kg·m²Ã—10»´
