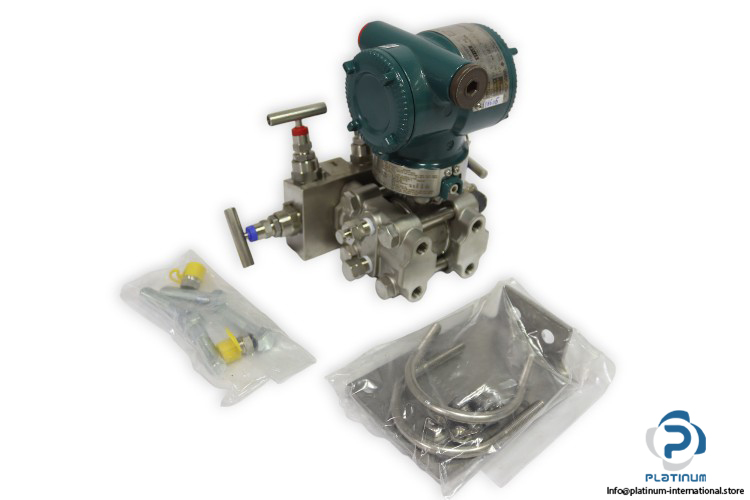

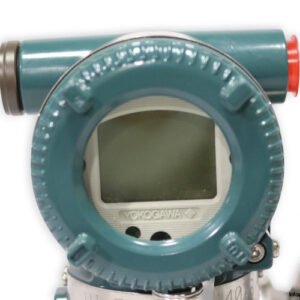

YOKOGAWA EJA110E Differential Pressure Transmitter
The YOKOGAWA EJA110E Differential Pressure Transmitter provides precise and stable pressure measurement for process control and monitoring systems. Designed with high accuracy, fast response, and durable construction, it ensures long-term reliability in demanding industrial applications.
Manufacturer: YOKOGAWA
Type: Differential Pressure Transmitter

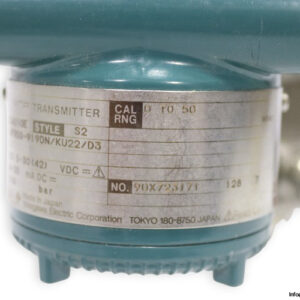

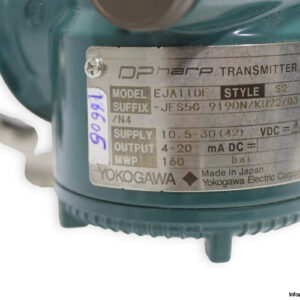

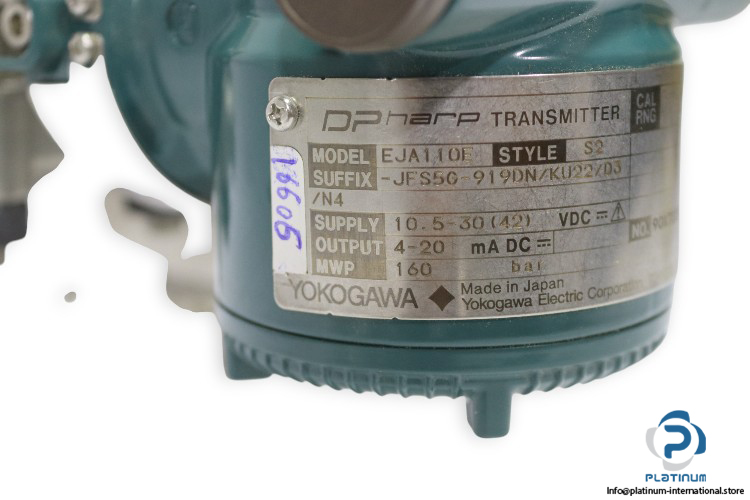

Model: EJA110E
Style: S2
Suffix Code: EJA110E-JFS5G-919DN/KU22/D3

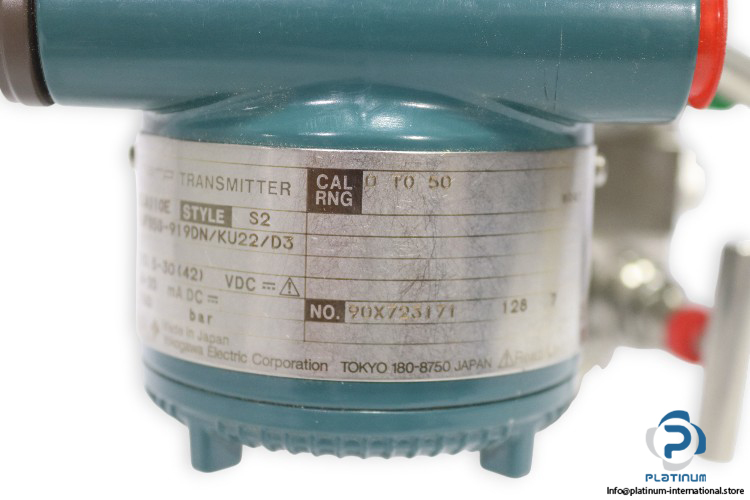

Serial Number: 90X723171
Technical Information

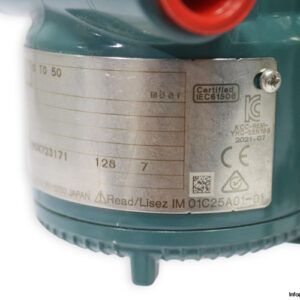

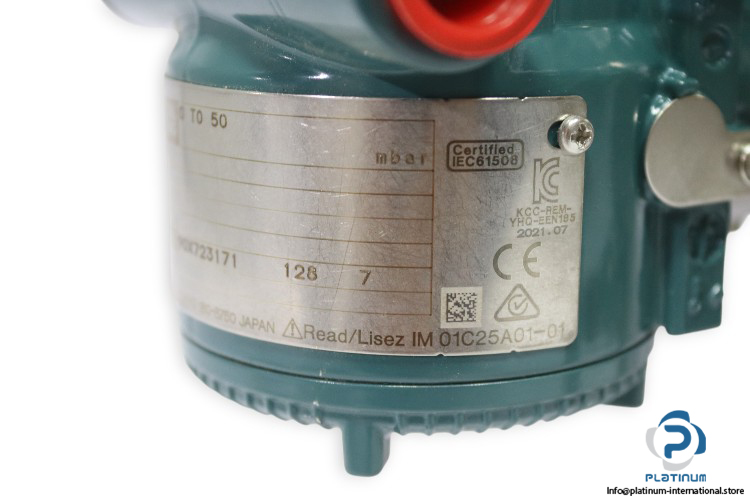

- Calibration Range: 0 to 50 mbar
- Power Supply: 10.5 to 30 V DC (42 V DC maximum)
- Output Signal: 4 to 20 mA DC with digital communication
- Maximum Working Pressure (MWP): 160 bar
- Accuracy: ±0.055 percent of span
- Response Time: 90 milliseconds nominal
- Process Connection: 1/4 inch “ 18 NPT female, flange mounting compatible

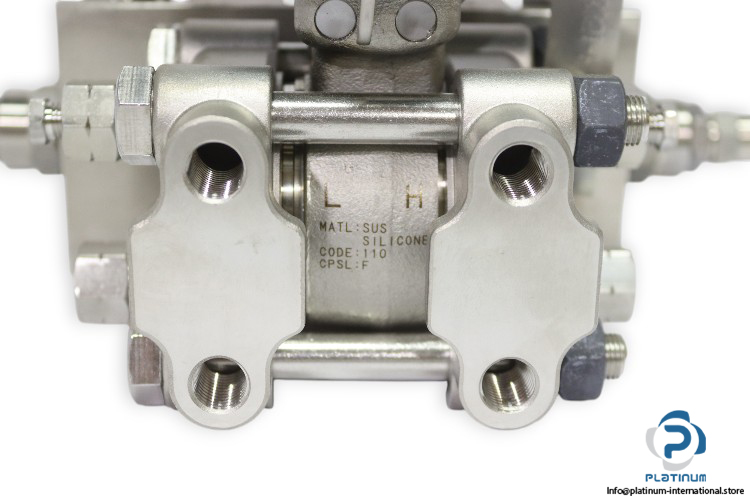

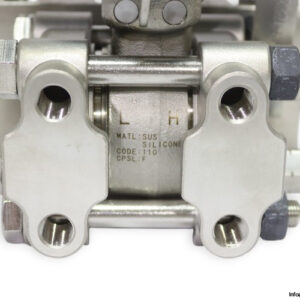

- Material: SUS, Silicone
- Material Code: 110
- CPSL: F
- Case Material: Aluminum alloy with epoxy coating
- Mounting: 2 inch pipe mounting bracket, manifold compatible
- Ingress Protection: IP66 / IP67
- Electrical Connection: M20 x 1.5 / 1/2 inch NPT

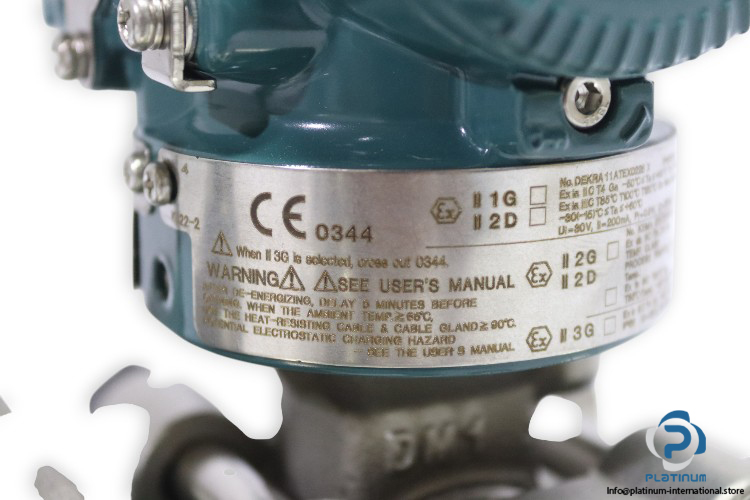

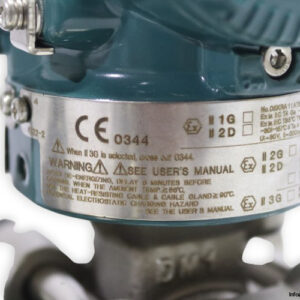

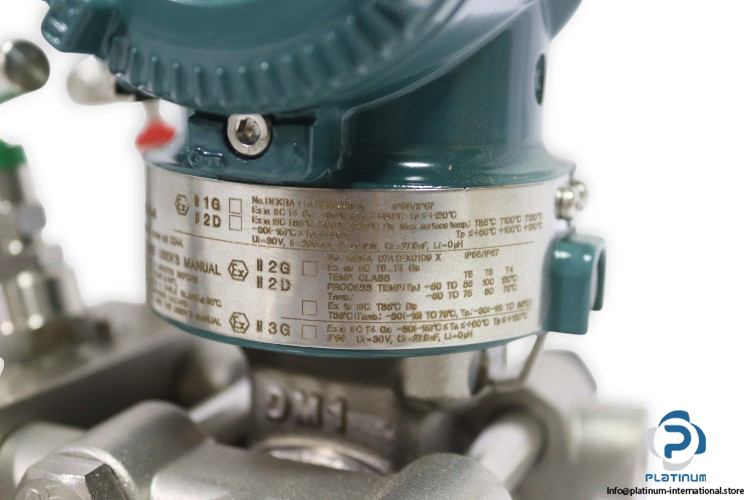

- Explosion Proof: Yes

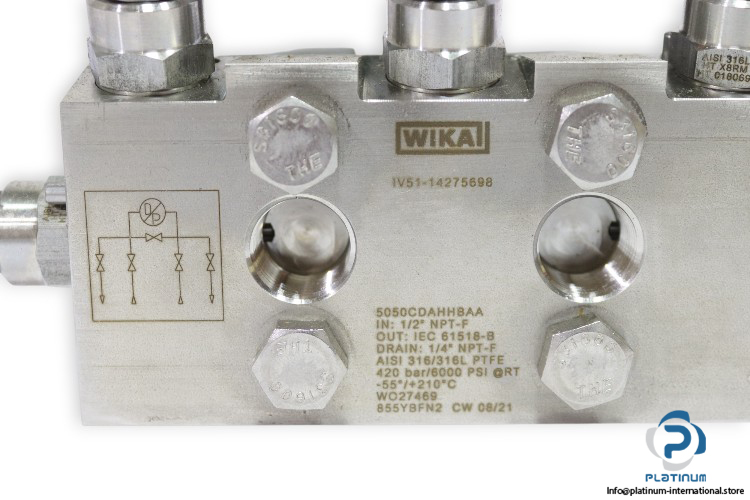

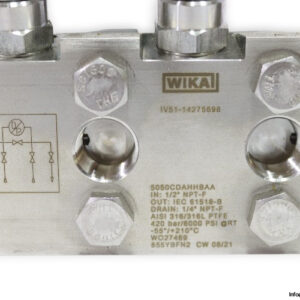

Attached Component
Manufacturer: WIKA
Type: 5-Valve Manifold Block
Model Code: 5050CDAHH8AA
Part Number: IV51-14275698
- Process Diagram: 5-valve configuration
- Inlet Connection (IN): 1/2 inch NPT female
- Outlet Connection (OUT): IEC 61518-B standard mounting
- Drain Connection: 1/4 inch NPT female
- Material: AISI 316 / 316L stainless steel with PTFE seals
- Maximum Working Pressure: 420 bar (6000 psi)
- Temperature Range: minus 55 to plus 210 degree Celsius
