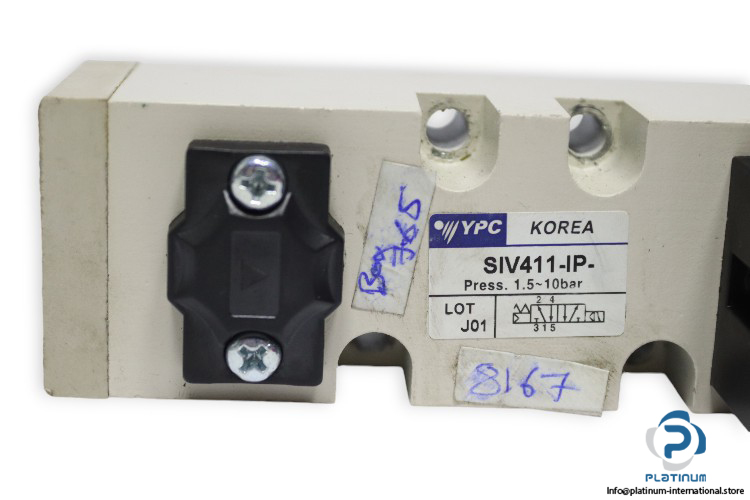

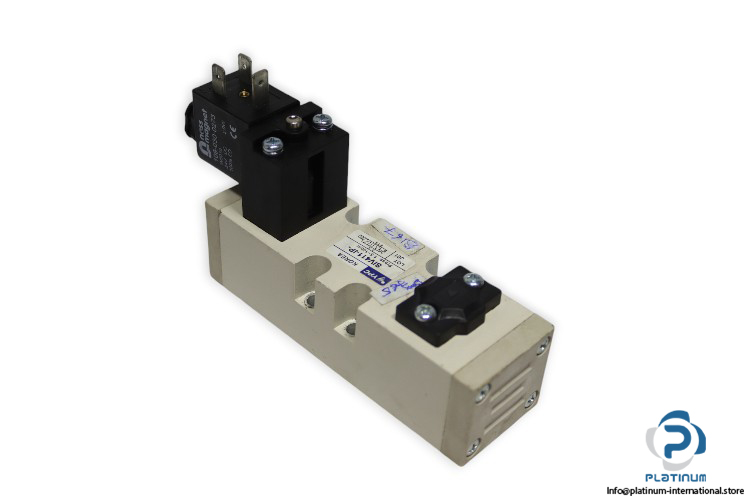

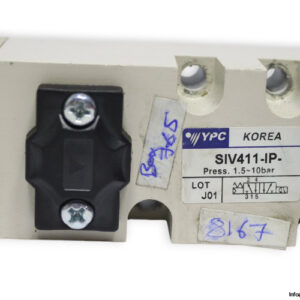

Manufacturer: YPC
Type: Solenoid Valve
Model: SIV411-IP-

width: 40 mm
Function: 5/2 single
Size: ISO-1 40 mm
return method: air + spring
flow: 1600 l/min
pressure range: 1.5 – 10 bar
temperature range: 5 – 60 °C
max. pressure: 10 bar
medium: compressed air, inert gases
pilot type: internal pilot
manual operator: push button
response time (5 bar) : 30 ms
Port Size: Sub Plate

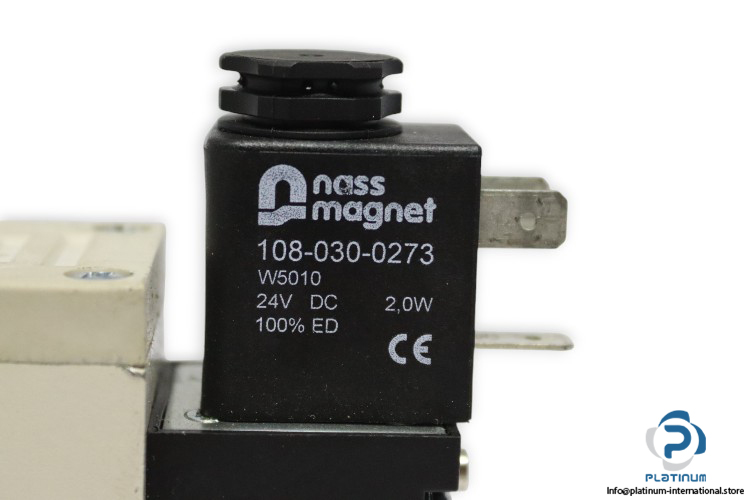

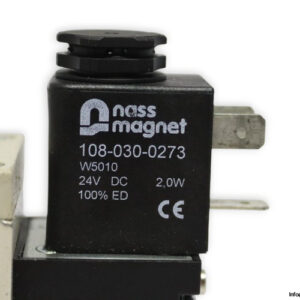

Attachment: NASS MAGNET 108-030-0273 SOLENOID COIL
Manufacturer: NASS MAGNET
Type: Solenoid Coil
Model: 108-030-0273

Voltage: 24 VDC
Power: 2 W
